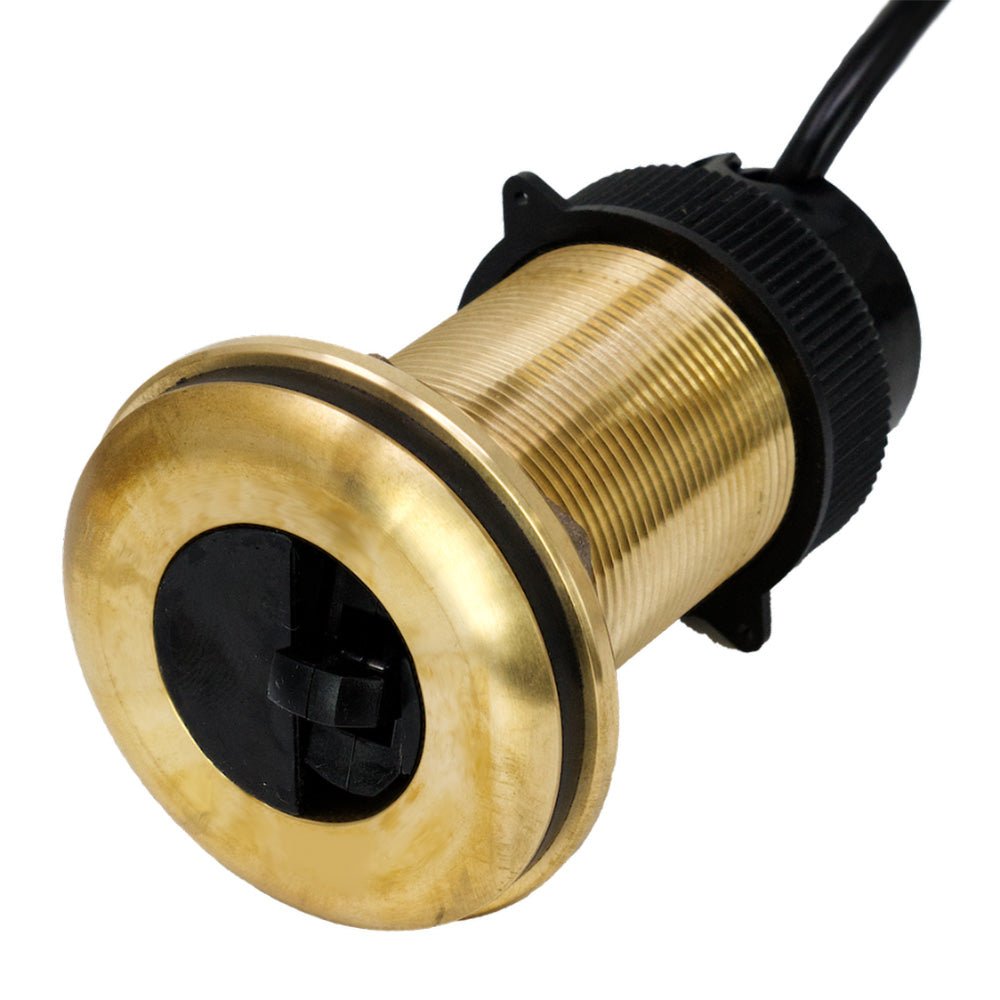

The DST810 Smart Multisensor is a rugged 23kHz Bronze NMEA 2000® transducer that combines depth, speed-through-water, water temperature, and boat attitude in one compact, dependable package. Built for serious marine use, it delivers fast, accurate readings and intuitive calibration right from your mobile device.
-
Frequency & Construction: 23kHz Bronze transducer designed for durable, long-lasting performance on a wide range of vessels with NMEA 2000® compatibility.
-
Integrated Measurements: Depth, water temperature, speed-through-water, and attitude (heel and trim) consolidated into a single sensor package.
-
Speed Performance: Gen2 paddlewheel with 5.7 Hz speed output (five updates per second); start-up speed-through-water below 0.3 knots and linear accuracy from 0.6 to 45 knots.
-
Attitude Sensing: Integrated attitude sensor delivers heel and trim data to enhance calibration and performance insights.
-
Wireless Calibration: CAST app enables basic and advanced heel-compensated speed calibrations from your phone, without PC software.
-
Advanced Calibration: Manual speed entries for multiple heel angles and up to 10 speeds; heel-compensated calibration across multiple heel angles and speed ranges for improved accuracy.
-
NMEA 2000 Integration: All data from the DST810 integrates seamlessly into your NMEA 2000 network for streamlined navigation, performance analysis, and vessel attitude awareness.
This smart multisensor delivers accurate, smooth readings across a broad range of conditions, helping you navigate with confidence and optimize vessel performance. Its wireless calibration, combined with precise heel- and trim-aware data, supports faster setup, easier tuning, and better decision-making on the water.
