Experience crystal MEGA Imaging+ and flexible Dual Spectrum CHIRP on your SOLIX system with the XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer with Temp. Built for serious anglers, it delivers crisp MEGA Imaging+ clarity, flexible CHIRP ranges, and real-time temperature data to help you make confident decisions on the water.
-
MEGA Imaging+ and Dual Spectrum CHIRP: ultra-clear fish arches and structure using Full 150-220 kHz, Narrow 180-240 kHz, and Wide 140-200 kHz ranges.
-
Maximum depth with Dual Spectrum CHIRP: up to 1200 ft (365 m) for deep-water bottom scanning and detail.
-
MEGA Down Imaging: 455 kHz (440-500 kHz) up to 400 ft (122 m); 800 kHz (790-850 kHz) up to 125 ft (38 m); MEGA DI+ 1075-1150 kHz up to 200 ft (61 m).
-
Built-in temperature sensor: real-time water temperature data to help you choose bait, depth, and presentation.
-
Rugged design: durable composite body with an all-metal bracket for reliable performance in challenging conditions.
-

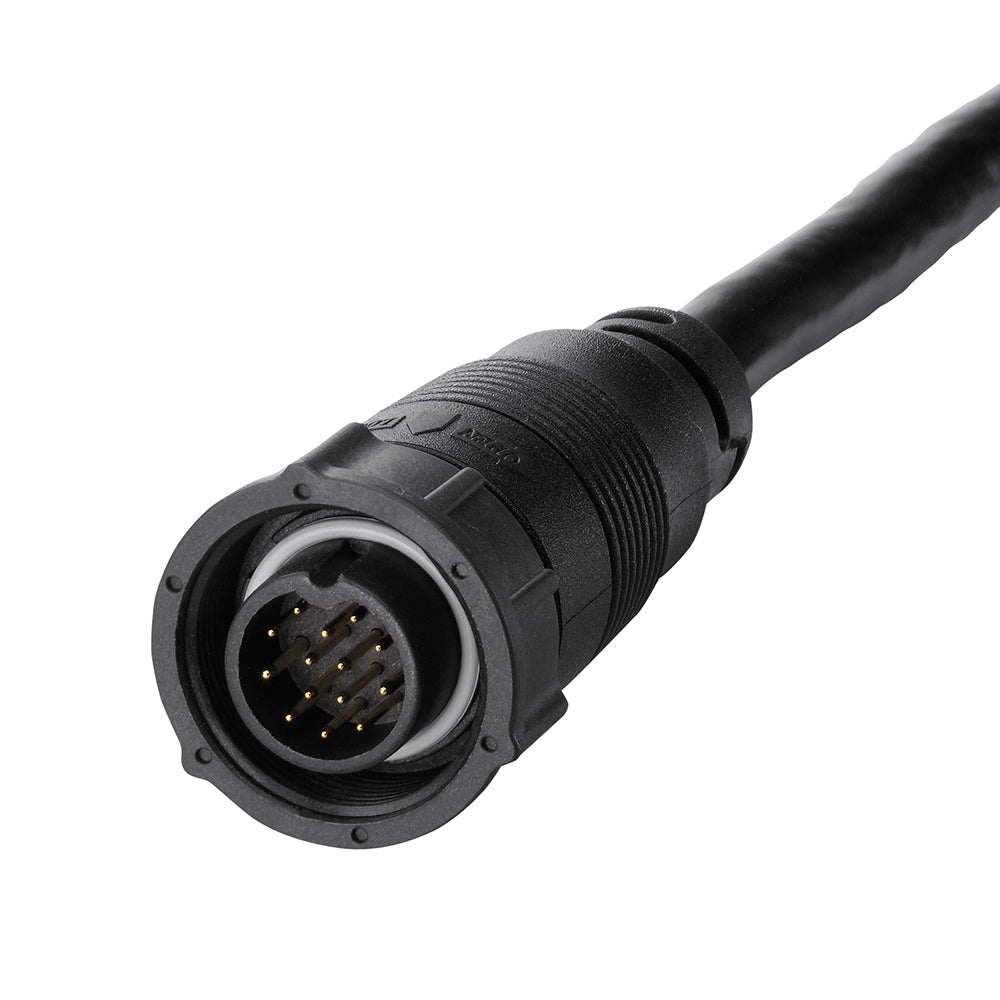

Easy installation: comes with a 20’ cable for flexible mounting and clean, simple setup on transom surfaces.
-
Compatibility: specifically designed for Humminbird SOLIX systems, including SOLIX 10, SOLIX 12, and SOLIX 15 CHIRP MEGA DI+ GPS G2 models.
-

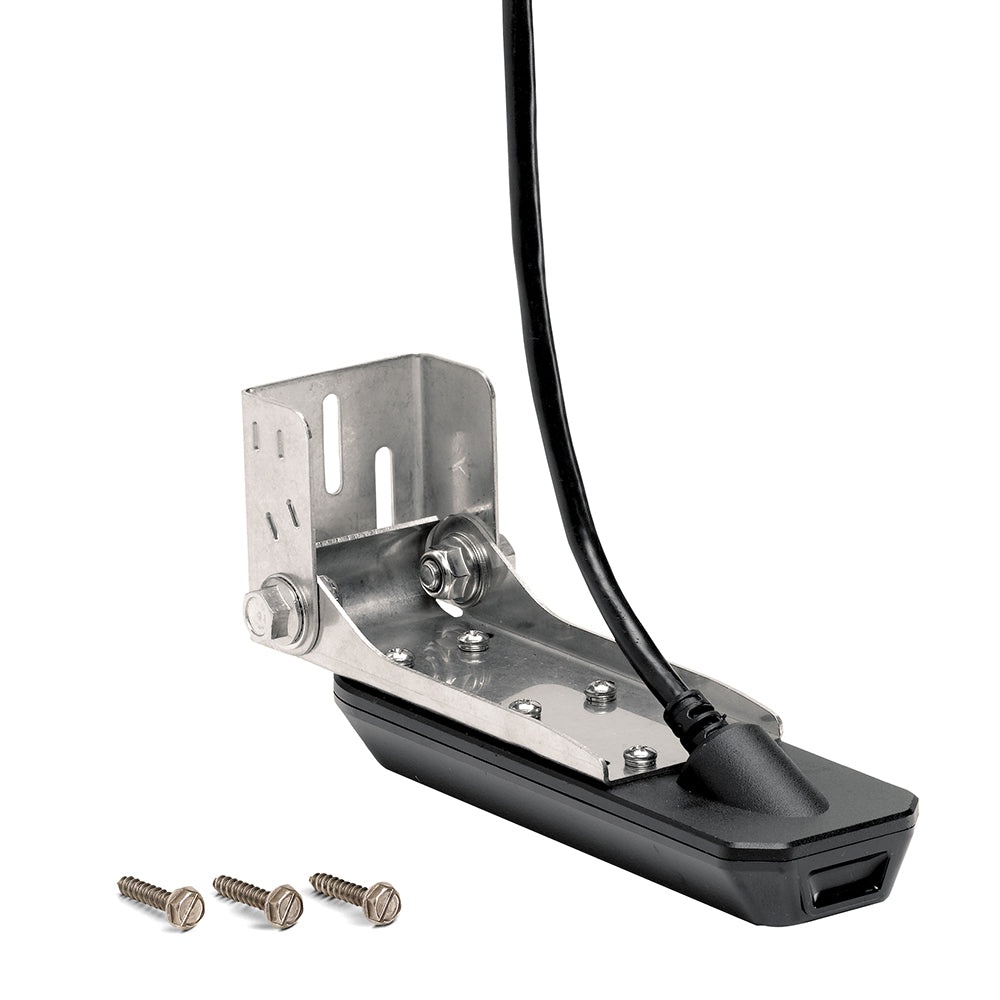

What’s in the box: rugged transom-mount transducer with built-in temperature sensor, an all-metal mounting bracket, and a 20’ cable.
This transducer delivers high-resolution MEGA Imaging+ and versatile Dual Spectrum CHIRP performance, helping you differentiate targets, read structure, and identify bottom detail across a wide depth range. The integrated temperature data supports smarter lure selection and presentation, while the robust build and long cable offer flexible installation options for SOLIX-equipped boats.
