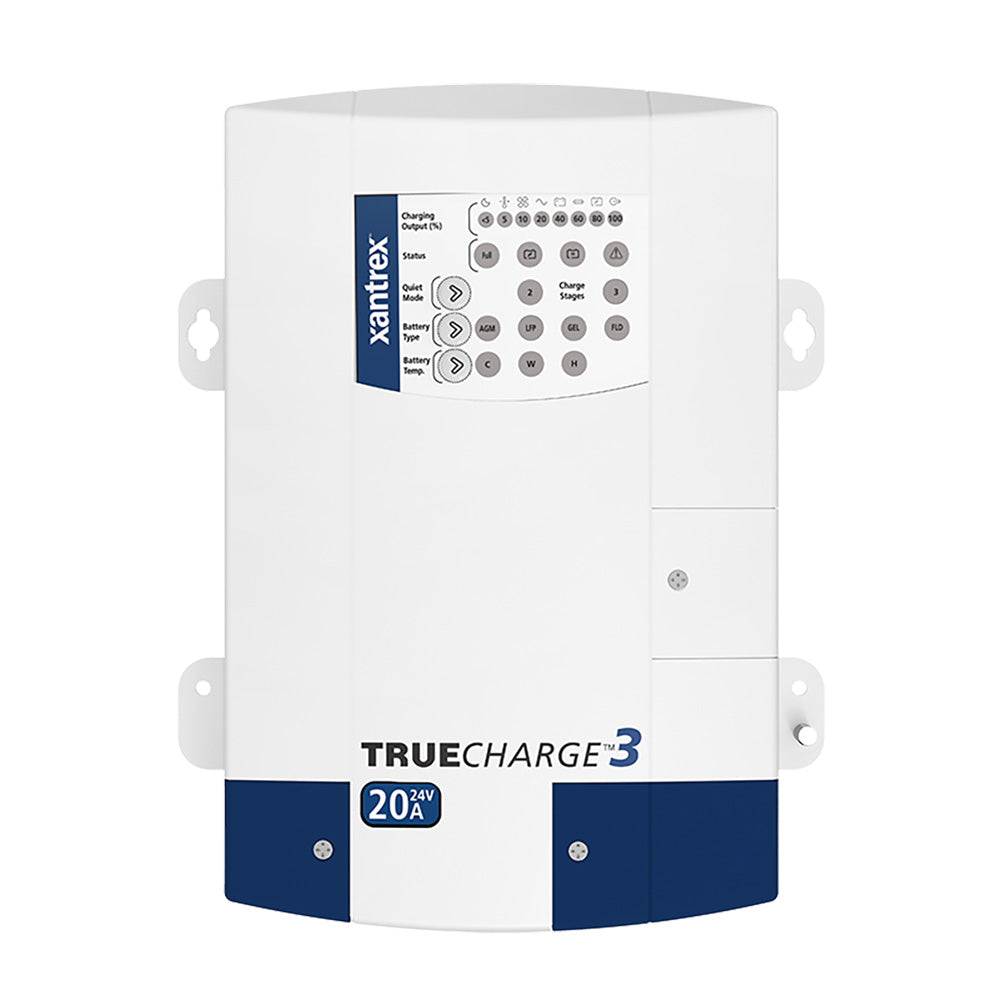

TRUEcharge3 20A 3-Bank Battery Charger - 24V is a compact, high-performance charging solution designed for 24V multi-battery systems in RVs, boats, and commercial applications. It fits tight spaces while delivering reliable, battery-friendly charging for everyday use.
-
Three-bank, 20A total charging (24V): designed for multi-battery configurations with a single unit.
-
Ultra-compact, drip-proof design: flexible mounting in multiple orientations for space-constrained installations.
-
Microprocessor-controlled multistage charging: supports two- and three-stage charging for efficient, battery-friendly maintenance.
-
Battery compatibility: supports Gel, Flooded, AGM, and LiFePO4 (lithium-ion) batteries.
-
Parallel stacking capability: expand capacity with an optional remote panel.
-
Deep-discharge capability: can charge batteries that are deeply discharged down to extremely low voltage.
-
Quiet mode: option to reduce operational noise.
-
Surge and spike protection: built-in protection on the AC input.
-
Power Factor Corrected (PFC) charging: efficient use of shore power.
-
Easy-to-read display: optional remote panel for convenient monitoring.
-
Three-stage charging profile: Bulk, Absorption, and Float for optimum care and battery longevity.
-
Global compatibility: universal AC input 90–265 VAC, 47–63 Hz for worldwide use.
-
24V system tuning: nominal output and settings optimized for 24V systems with appropriate charging and float voltages.
-
Protective safeguards: surge, spike, reverse polarity, over-temperature, DC over-voltage, and circuit breaker protection.
-
Drip-proof construction & wide operating range: 0–60°C / 32–140°F for challenging environments.
-
Minimum battery bank size: 40 Ah.
-
Physical specs: Dimensions 70 x 170 x 250 mm (2.8 x 6.7 x 9.8 inches); Weight 2.2 kg (4.8 lb).
-
Regulatory approvals: CSA, UL, IEC/EN IP32, FCC Part 15.
By combining a three-stage charging profile with universal input and multiple battery chemistries, TRUEcharge3 helps extend battery life, reduce maintenance, and ensure reliable power restoration. Its drip-proof, ultra-compact housing fits into tight spaces on vehicles and vessels, while the optional remote display keeps you informed. Parallel stacking allows expansion as your system grows, and deep-discharge charging ensures reliability even after heavy use. Global compatibility and robust safeguards provide dependable performance across RVs, boats, and commercial sites.
