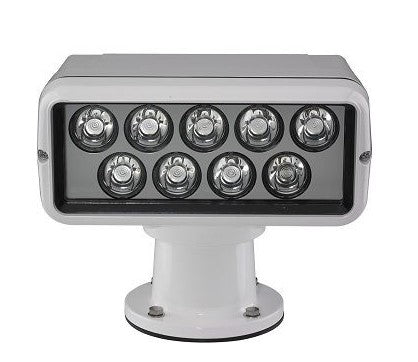

Illuminate the night with confidence using the ACR RCL100 LED Spotlight with Wired Point Pad, a robust, white-housing searchlight designed for serious marine use. The LED version of the popular RCL-100 combines extreme brightness with dependable performance, built to endure harsh waterfront conditions.
Blazing Brightness and Long-Lasting LED Life
- Ultra-bright 9-LED array delivering over 200,000 peak candela for exceptional long-range visibility
- High-efficiency LEDs with a 40,000-hour service life
- Operates on 12 or 24 V DC for versatile marine power systems
Rugged, Weather-Ready Construction
- Die-cast aluminum housing in a durable white finish; triple-primed and UV-stabilized
- Glass lens sealed to withstand salt, spray and debris
- Internal elevation mechanism is fully enclosed to protect against weather
- Exclusive XRCiZ feature rotates and moves the light assembly every 30 days from activation to keep bearing surfaces corrosion-free and electrical contacts functional
Precise Control and Seamless Operation
- Wired Point Pad included for convenient control; 360-degree continuous rotation without hard stops
- Beam angle of 7° with elevation options 9° up and 17° down for targeting bridges, buoys and docks
- Two-speed motor with rotation speeds of 31°/s (fast) and 20°/s (slow); elevation at 2.8°/s
- Remote control option available; weatherproof for marine environments
- 15-foot (4.57 m) wiring harness for flexible installation
Compact Power, Maximum Versatility
The RCL-100 LED preserves the rugged lineage of the original while delivering modern LED performance, making it an attractive, cost-effective choice for sport yachts, mega-yachts, sport fishers, and light commercial vessels seeking reliable, long-range illumination.
Key Specifications
- Input voltage: 12 or 24 V DC
- Peak beam candlepower: 200,000
- Beam angle: 7°
- Elevation: 9° up / 17° down
- Rotation: 360° continuous; Rotation speeds Fast 31°/s, Slow 20°/s
- Lamp: High-intensity LED with 40,000-hour life
- Housing: Die-cast aluminum, white, triple-primed and UV-stabilized
- Dimensions: 8 x 9 x 8 in (20.3 x 22.9 x 20.3 cm)
- Accessories: Secondary Point Pad (P/N 9282.3)
| Material |
Aluminum Alloy Die Casting |
| Color |
White |
| Operation |
Wired Point Pad |
| Beam Angle |
7 degree |
| Elevation angle |
9 degree up 17 degrees down |
| Rotation |
Continuous 360 degrees |
| Rotation Speed |
Fast 31 degrees per second, slow 20 degrees per second |
| Elevation speed |
2.8 degrees per second |
| Lamp |
High intensity LED (40,000 hour life) |
| Accessories |
Secondary Point Pad™ (P/N 9282.3) |
| Input voltage |
12 or 24 V DC |
| Peak beam candlepower |
200,000 |
| Dimensions |
8 x 9 x 8 (20.3 x 22.9 x 20.3 cm) |
