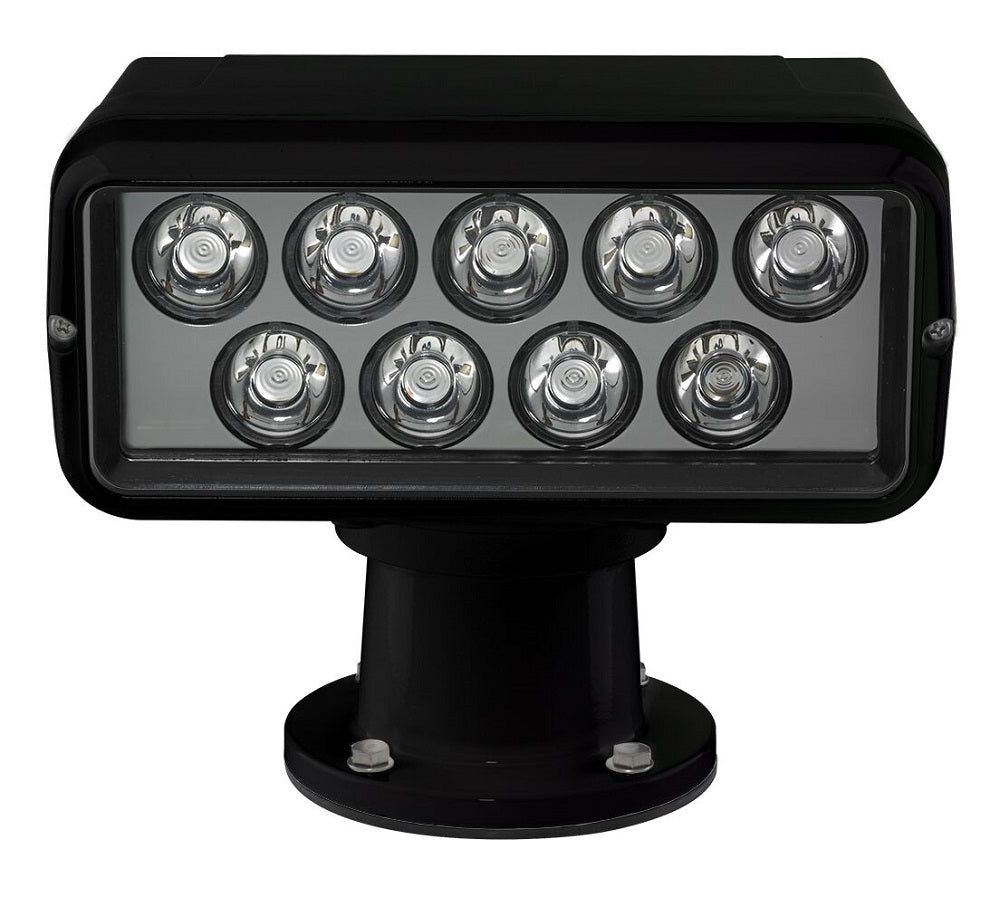

The ACR RCL100 LED Searchlight with Point Pad is a rugged marine spotlight designed for serious night-time visibility on 12/24V vessels. Housed in durable black hardware, it delivers piercing light, precise control, and reliable performance when you need it most.
-
Input Voltage: 12 or 24 V DC for versatile use across different vessels
-
Beam and Brightness: Ultra-bright 9-LED array delivering over 200,000 peak candela with a 7° beam angle
-
LED Lifespan: 40,000-hour LED life for years of dependable service
-
Beam Control: Internal elevation mechanism with a 7° beam angle; elevation range 9° up and 17° down
-
Rotation: Continuous 360° rotation for full coverage
-
Rotation and Elevation Speed: Fast 31°/s or Slow 20°/s rotation; Elevation speed 2.8°/s for precise beam positioning
-
Construction: Die-cast aluminum housing with marine-grade construction and triple-primed, UV-stabilized finish
-
Weatherproofing: Glass lens sealed to protect optics from salt, spray, and moisture
-
Control Interface: Wired Point Pad for intuitive, one-handed operation; remote control option enables continuous rotation without interruptions
-
XRCiZ Technology: Exclusive feature that rotates/repositions the light assembly every 30 days to keep bearing surfaces corrosion-free and electrical contacts functional
-
Wiring and Installation: 15 ft (4.57 m) wiring harness for flexible installation
-
Dimensions: 8 x 9 x 8 inches (20.3 x 22.9 x 20.3 cm)
-
Includes: Secondary Point Pad™ (P/N 9282.3)
-
Designed For: Sport yachts, mega-yachts, sport fishers, and light commercial vessels
With the RCL100, you gain reliable, high-intensity illumination for coastal draws, docks, and night navigation. The one-handed Point Pad keeps you in full control while 360° rotation and precise elevation let you sweep and lock onto targets quickly. The rugged die-cast aluminum housing, sealed glass lens, and the XRCiZ maintenance feature help endure harsh marine environments, reducing downtime and maintenance costs. A 15 ft wiring harness simplifies installation on a range of vessels, and the included Secondary Point Pad provides extra flexibility for complex setups.
| Material |
Aluminum Alloy Die Casting |
| Color |
White |
| Operation |
Wired Point Pad |
| Beam Angle |
7 degree |
| Elevation angle |
9 degree up 17 degrees down |
| Rotation |
Continuous 360 degrees |
| Rotation Speed |
Fast 31 degrees per second, slow 20 degrees per second |
| Elevation speed |
2.8 degrees per second |
| Lamp |
High intensity LED (40,000 hour life) |
| Accessories |
Secondary Point Pad™ (P/N 9282.3) |
| Input voltage |
12 or 24 V DC |
| Peak beam candlepower |
200,000 |
| Dimensions |
8 x 9 x 8 (20.3 x 22.9 x 20.3 cm) |
