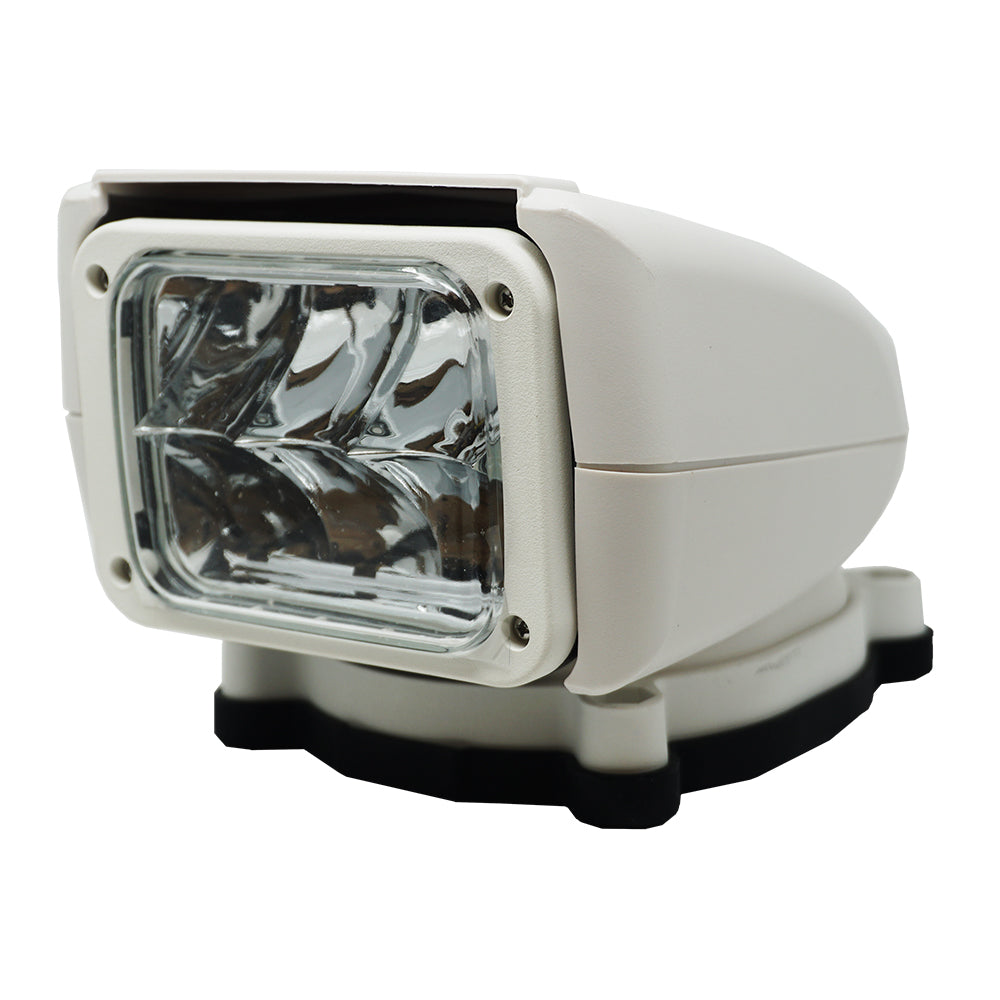

Meet the ACR RCL-85 White LED Spotlight — a compact, marine-grade searchlight that delivers bright, long-range visibility with the convenience of wireless control. Designed to replace halogen lights, this high-performance LED beacon powers through the night with clarity and reliability for boats of all sizes.
-
High-power output: 240,000 candela from six OSRAM 30W LEDs for a commanding beam that reaches up to 3,215 feet (980 m).
-
Wireless handheld remote: Included remote controls 350° of rotation and 90° of elevation for precise aiming at buoys, docks, and channels.
-
Efficient power options: Operates on 12–24V DC with a current draw from 2A at 12V to 1.1A at 24V, delivering strong illumination with lower power strain.
-
Durable and weather-ready: UV and weather resistant with an IP68-rated light head; ASA housing and sealed lens protect against the elements for years of service.
-
Easy installation: Quick setup using a simple 12–24V power connection—no complex wiring required.
-
Versatile beam: Spot beam with an 8° angle, plus 350° rotation and up to 90° elevation to light bridges, buoys, and docking areas with ease.
-
Signaling capability: Built-in Strobe function to attract attention or signal for help when needed.
-
Long life and efficiency: 50,000-hour LED lifespan provides years of dependable performance with minimal maintenance.
-
Includes accessories: Wireless Dash Mount Remote (PN 9635) for secure helm operation.
-
Compact and lightweight: 5.5" x 6.3" x 7.7" and 3.1 lb for easy installation on small to medium recreational vessels and light commercial boats.
-
Warranty: 2-year limited warranty for confidence on the water.
The RCL-85 is the smart, affordable choice for boaters who want powerful illumination without the hassle of halogen lights. Its robust design, long-range beam, and wireless control make night navigation, docking, and signaling safer and simpler on any waterway.
Specifications
-
Model: PN 1956 (White)
-
Size: 5.5 x 6.3 x 7.7" (14 x 16 x 19.5 cm)
-
Weight: 3.1 lbs (1.34 kg) — searchlight only
-
Color: White
-
Operation: Wireless handheld remote included; 433.92 MHz
-
Peak beam candle power: 240,000
-
Beam maximum distance: 3,215 ft (980 m)
-
Beam pattern / Angle: Spot / 8°
-
Elevation: Up to 90°; Rotation up to 350°
-
Lamp: 30W x 6 LEDs (OSRAM) / 50,000 hour life
-
Power requirements: 12 or 24 V DC
-
Warranty: 2 years
| ACR Product Number |
PN 1956 (White) |
| Size |
5.5 x 6.3 x 7.7" (14 x 16 x 19.5 cm) |
| Weight |
3.1 lbs (1.34 kg) (searchlight only) |
| Color |
White |
| Operation |
Remote controlled wireless handheld remote (included) / 433.92 MHz |
| Peak Beam Candle Power |
240,000 |
| Beam Maximum Distance |
3,215 Feet (980 Meters) |
| Beam Pattern / Angle |
Spot / 8o |
| Elevation Angle |
90° |
| Rotation |
350° |
| Rotation Speed |
18o per second |
| Elevation Speed |
13° per second |
| Lamp |
LED 30W (OSRAM x 6) / 50,000 hour life |
| Accessories |
Wireless Dash Mount Remote (PN 9635) |
| Footprint Diameter |
5.03" x 4.09" (12.8 x 10.4 cm) |
| Power Requirements |
12 or 24 V DC |
| Warranty |
2 Years |
