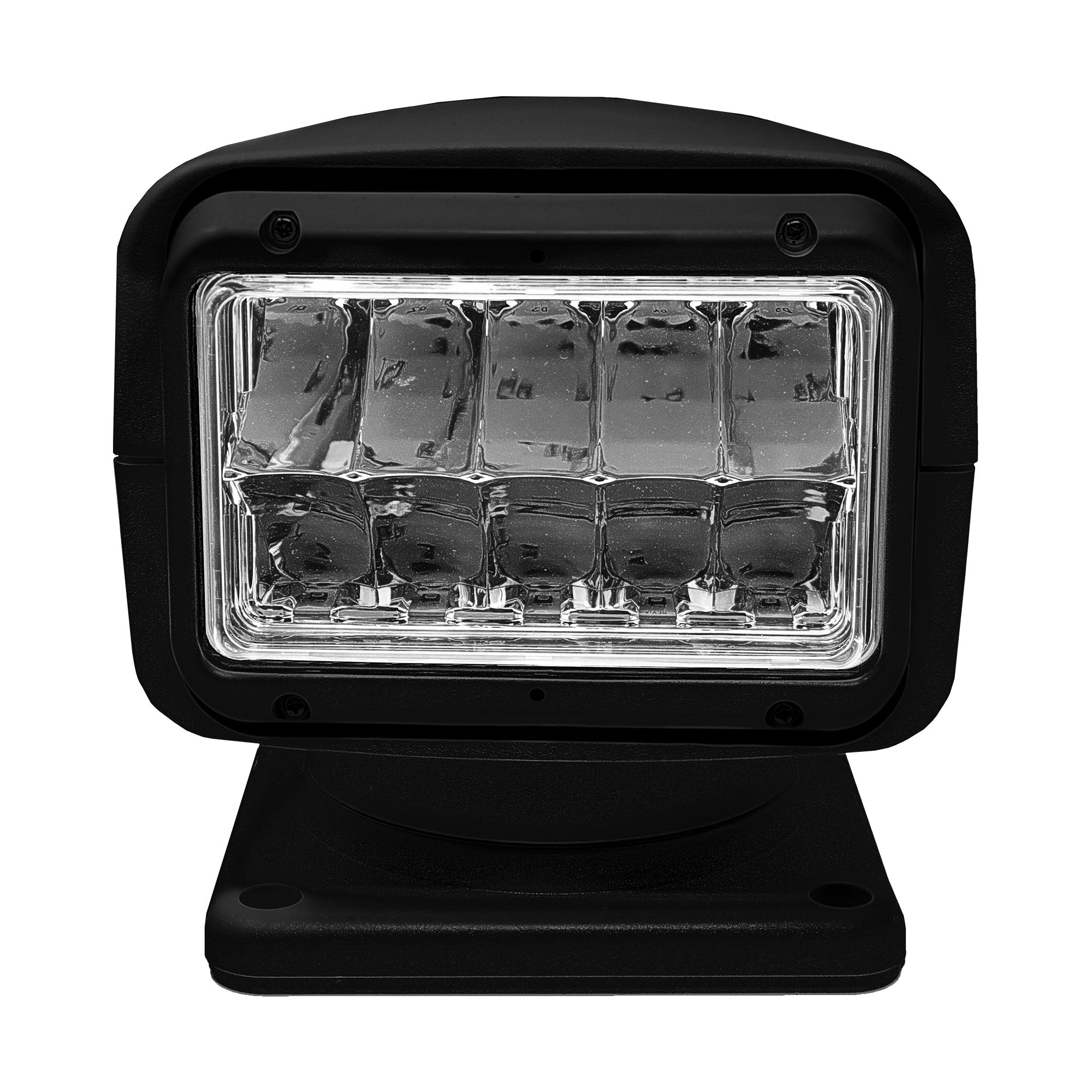

The ACR RCL95 Black LED Spotlight is built for peak performance, effortless control, and year‑round reliability on 12–24V marine systems. Illuminate your route, dock, or buoy with confidence using a compact, weather‑ready searchlight that blends power, precision, and ease of use.
Outstanding brightness and reach
-
10 × OSRAM high‑flux LEDs delivering up to 460,000 candela and a maximum beam distance of 4,501 ft (1,372 m).
- Beam pattern: Spot beam at 8° with up to 135° elevation for broad vertical coverage.
360° rotation and precise aiming
-
360° continuous rotation and 135° tilt to sweep docks, bridges, buoys, and targets with ease.
- Two speed options: fast 19°/s or slow 12°/s rotations for smooth, controlled lighting.
-
Auto‑home return parks the light at its starting position when turned off for quick next use.
Flexible control—wired and wireless
- Includes a wireless handheld remote and a wired dash‑mount joystick with a 5 m (16.4 ft) control cable for versatile helm operation.
- Operates reliably on 12–24 V DC power with efficient LED performance.
Rugged, marine‑ready design
-
IP68 water‑resistant head with electronics protected in the head for enhanced durability.
-
ASA housing and sealed lens provide long‑lasting weather resistance and UV protection.
- Simple installation via 12–24 V power connection and a 5 m wired joystick control cable.
Specifications at a glance
-
Dimensions: 5.9" x 7.1" x 7.5" (15 x 18 x 19 cm); Weight 4.2 lb (1.9 kg) (searchlight only)
-
LED lifespan: up to 50,000 hours
-
Power: 12/24 V DC; LED: 50 W × 10 = 500 W total lighting capability
-
Housing: Acrylonitrile Styrene Acrylate (ASA) for superior weather resistance
-
Includes: Wireless remote, wired joystick with 5 m cable, and mounting accessories
-
Warranty: 2 years
Designed for small to medium recreational powerboats and light commercial vessels, the ACR RCL95 delivers extremely bright, far-reaching illumination with effortless control, robust construction, and reliable performance when you need it most.
| ACR Product Number |
PN 1959 (Black) |
| Size |
5.9 x 7.1 x 7.5" (15 x 18 x 19 cm) |
| Weight |
4.2 lbs (1.9 kg) (searchlight only) |
| Material |
Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance |
| Color |
Black |
| Operation |
Wireless Handheld Remote (included) / 433.92 MHz or Wired Dash Mount Joystick (included with 16.4’ (5m) cable) |
| Peak Beam Candle Power |
460,000 |
| Beam Maximum Distance |
4,501 ft (1,372 meters) |
| Beam Pattern / Angle |
Spot / 8o |
| Elevation Angle |
135° |
| Rotation |
360° Continuous |
| Rotation Speed |
Fast 19° per second, slow 12° per second |
| Elevation Speed |
11° per second |
| Lamp |
LED 50W (OSRAM x 10) / 50,000 hour life |
| Accessories |
Wireless Dash Mount Remote (PN 9635)16.4’ (5 m) Extension Cable for Wired Controller (PN 9638)Replacement GOLIGHT® Mounting Plate (PN 9639) — Used when replacing GOLIGHT® Stryker or RadioRay Searchlights (will not work for RadioRay portable model)* |
| Footprint Diameter (distance between mounting holes) |
4.92" x 4.92" (12.5 x 12.5 cm) |
| Total Footprint (dimensions of searchlight base) |
6.06" x 6.06" (15.4 x 15.4 cm) |
| Power Requirements |
12 or 24 V DC |
| Warranty |
2 Years |
