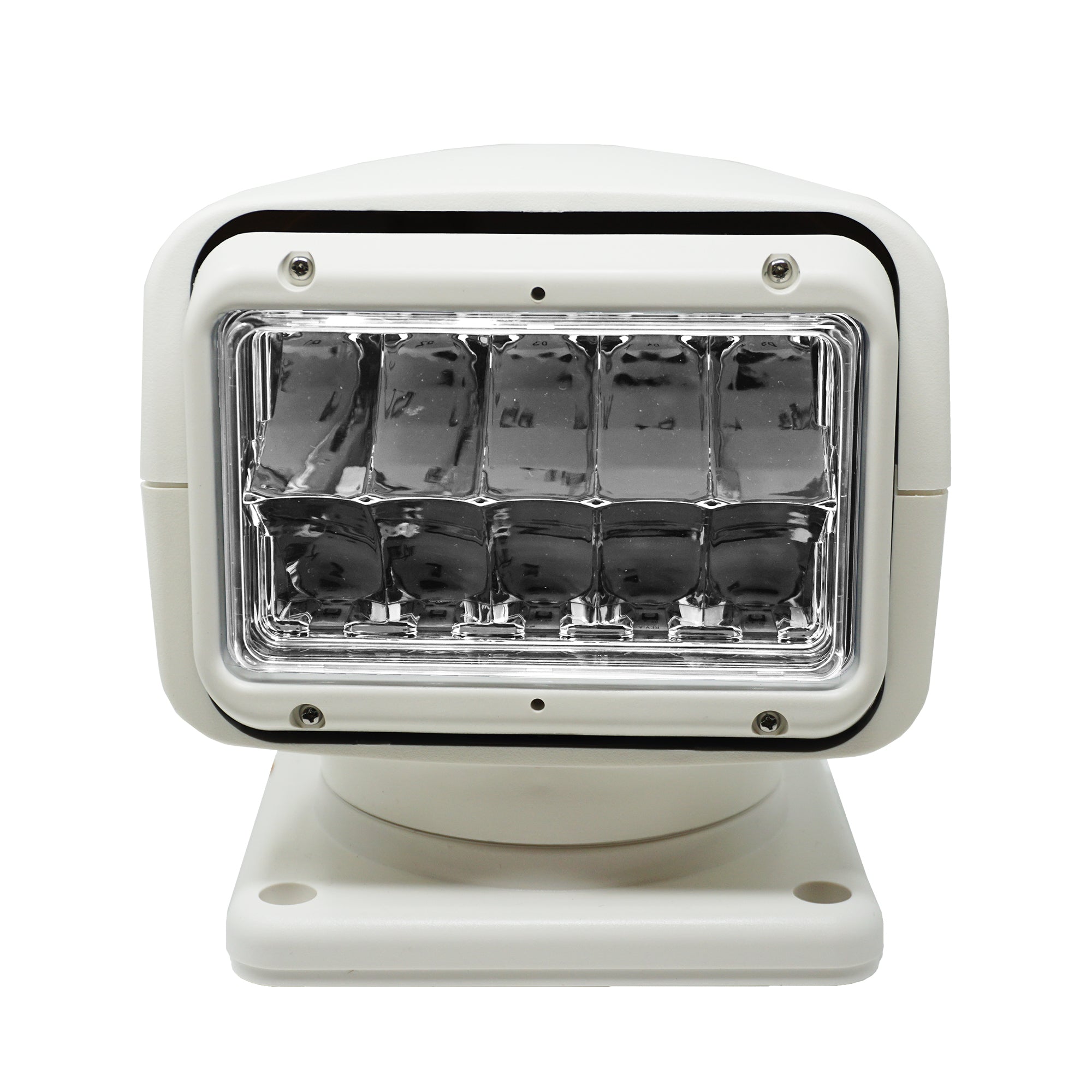

The ACR RCL95 White LED Spotlight is a compact, high-performance searchlight built for small to medium recreational boats and light commercial vessels. It delivers powerful night visibility with flexible control options for quick, precise targeting on the water.
-
Power and Illumination: 50W x 10 OSRAM LEDs delivering 460,000 candela with a long 50,000-hour LED life.
-
Beam Pattern and Reach: Spot beam with an 8° angle, providing precise light placement and a maximum distance of 4,501 ft (1,372 m).
-
Rotation and Elevation: 360° continuous rotation and 135° elevation for thorough sweeping of docks, buoys, and bridges; fast 19°/s rotation and 12°/s slow rotation; elevation at 11°/s.
-
Control Options: Wireless Handheld Remote and Wired Dash Mount Joystick (both included) with auto-home return to the starting position when off.
-
Power and Durability: Operates at 12 or 24 V DC; current draw 4 A at 12 V / 2 A at 24 V; IP68-rated head electronics and ASA housing with UV and weather resistance, suitable for saltwater or freshwater use.
-
Size and Installation: Compact footprint (5.9 x 7.1 x 7.5 in); weight 4.2 lbs; mounting footprint 4.92" x 4.92" with total base of 6.06" x 6.06"; ships with 5 m cable extensions for easy setup.
-
Included Accessories: Wireless Dash Mount Remote; Wired Dash Mount Joystick with 16.4’ (5 m) cable; extension cable for wired controller (16.4’); Replacement GOLIGHT mounting plate for compatible setups.
Equipped for reliability in marine environments, the RCL95 enhances nighttime navigation, docking, and patrol operations with a bright, focused beam you can aim precisely from multiple control options. Its rugged construction, flexible power options, and dual-control setup make it a practical, long-lasting addition to vessels of varying sizes.
| ACR Product Number |
PN 1958 (White) |
| Size |
5.9 x 7.1 x 7.5" (15 x 18 x 19 cm) |
| Weight |
4.2 lbs (1.9 kg) (searchlight only) |
| Material |
Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance |
| Color |
White |
| Operation |
Wireless Handheld Remote (included) / 433.92 MHz or Wired Dash Mount Joystick (included with 16.4’ (5m) cable) |
| Peak Beam Candle Power |
460,000 |
| Beam Maximum Distance |
4,501 ft (1,372 meters) |
| Beam Pattern / Angle |
Spot / 8o |
| Elevation Angle |
135° |
| Rotation |
360° Continuous |
| Rotation Speed |
Fast 19° per second, slow 12° per second |
| Elevation Speed |
11° per second |
| Lamp |
LED 50W (OSRAM x 10) / 50,000 hour life |
| Accessories |
Wireless Dash Mount Remote (PN 9635)16.4’ (5 m) Extension Cable for Wired Controller (PN 9638)Replacement GOLIGHT® Mounting Plate (PN 9639) — Used when replacing GOLIGHT® Stryker or RadioRay Searchlights (will not work for RadioRay portable model)* |
| Footprint Diameter (distance between mounting holes) |
4.92" x 4.92" (12.5 x 12.5 cm) |
| Total Footprint (dimensions of searchlight base) |
6.06" x 6.06" (15.4 x 15.4 cm) |
| Power Requirements |
12 or 24 V DC |
| Warranty |
2 Years |
