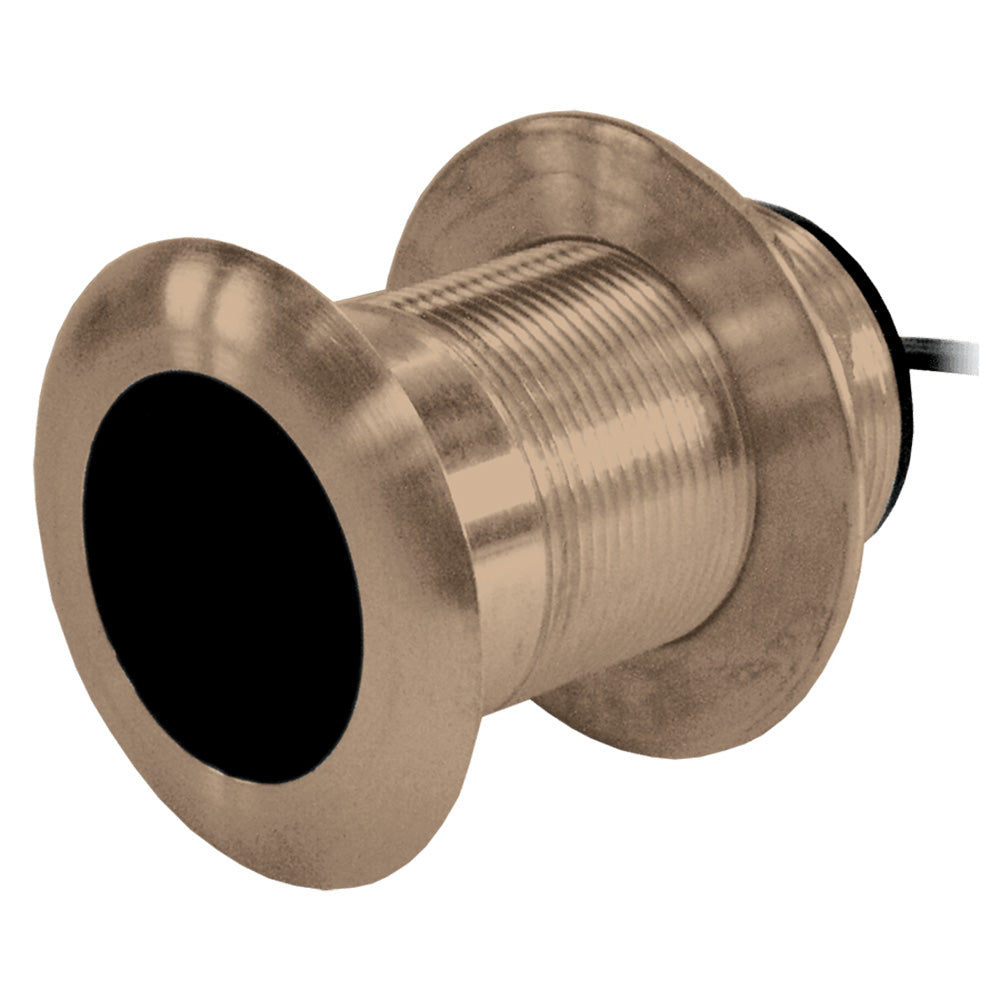

Meet the Airmar B117 50/200kHz 600W Mix & Match transducer — a versatile depth and temperature solution designed for leisure boats and light fishing craft. Its 0° deadrise and low-profile bronze housing keep drag to a minimum, with only 5 mm protruding outside the hull.
-
Dual-frequency element: 50/200 kHz dual‑frequency ceramic element for flexible depth performance.
-
Power rating: 600 W provides strong, responsive sonar output.
-
Depth sensing options: Choose depth‑only or depth plus temperature sensing to suit your setup.
-
Beamwidth and depth ranges: 50 kHz offers a wide 45° beam for depth performance up to 353 m (1200'), and 200 kHz offers a 12° beam for depth up to 206 m (700').
-
Housing: Low-profile bronze housing minimizes drag and protrudes only 5 mm outside the hull.
-
Cable exit: Right-angle cable exit saves space and protects the transducer if stepped on.
-
Installation hardware: Includes rubber washer for tightening the hull nut on irregular hull surfaces.
-
Hull compatibility: Suitable for fiberglass or wood hulls; requires a 51 mm (2") hole.
-
Acoustic window: Urethane window.
-
Max depth: Low frequency up to 366 m (1200'), high frequency up to 206 m (700').
-
Max vessel length: Suitable for boats up to 8 m (26') long.
-
Weight: 0.9 kg (2 lbs).
-
Variants: Bronze housing (standard), with plastic (P319) and stainless steel (SS60) variants available.
-
Return policy: This product may not be returned to the original point of purchase; contact the manufacturer with issues or concerns.
-
0° deadrise design: Designed for smooth operation across typical hull shapes.
This transducer provides flexible depth readings for casual boating and light fishing, with a compact, durable build suitable for fiberglass or wooden hulls. The Mix & Match configuration lets you tailor depth and temperature sensing to your setup while the low-profile 5 mm hull protrusion helps maintain performance on small boats without adding drag.
