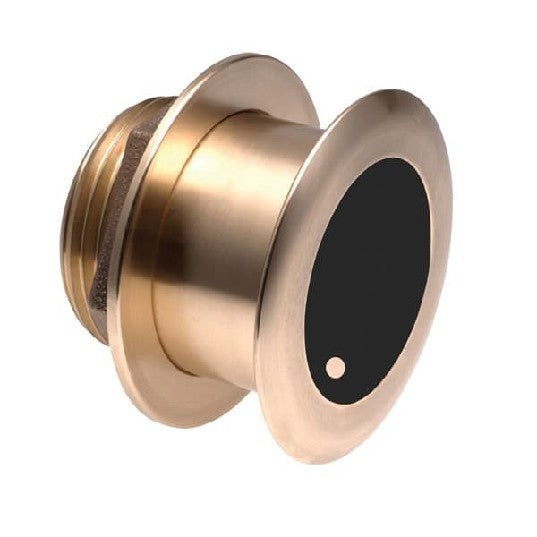

The AIRMAR B164 dual-frequency marine transducer is designed for Garmin systems, delivering reliable 50/200 kHz sonar with a 1 kW power rating and a 20-degree tilted element for optimized beam placement.
-
Frequency: Dual-frequency 50/200 kHz for versatile imaging across shallow to mid-depth water.
-
Power: 1 kW transmission power supports strong returns in challenging conditions.
-

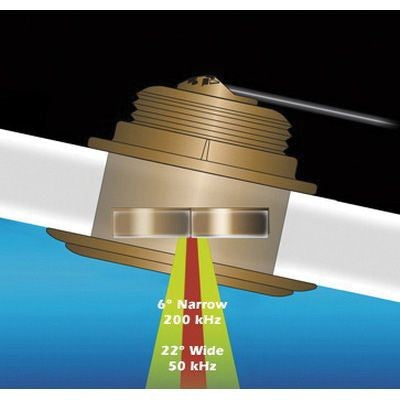

Tilted Element: 20-degree tilted design to improve beam geometry and target separation.
-
Connector: Garmin 8-pin DT interface for easy integration with Garmin devices.
-
Model: B164-20-8G from AIRMAR
This transducer helps you adapt to changing depths and targets, switching between the detailed views at 200 kHz and wider-area scans at 50 kHz to suit your fishing or navigation needs. The 1 kW rating provides clear returns when chasing bottom structure or fish schools, while the 20-degree tilt enhances beam positioning for better bottom detection and target clarity. With Garmin 8-pin DT connectivity, installation is straightforward and ensures reliable data transfer to your compatible Garmin chartplotter.
