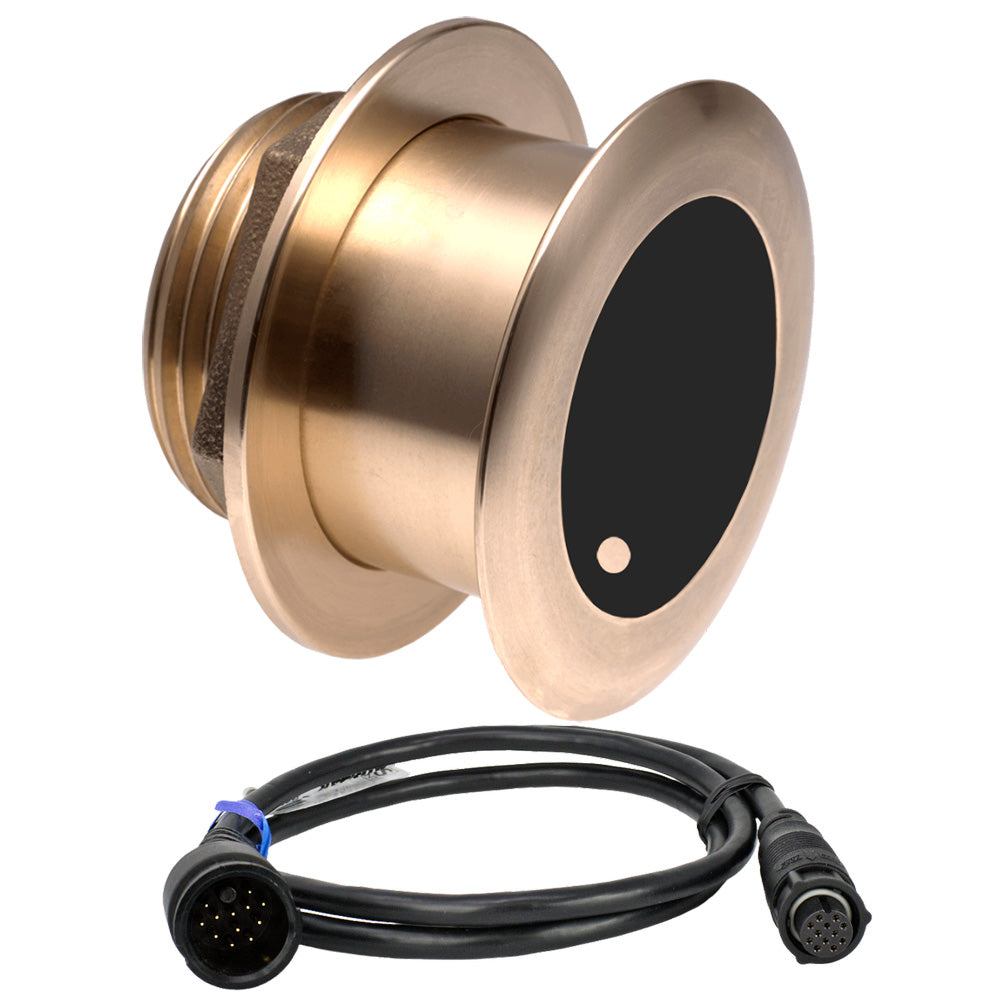

Airmar B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull Transducer for Furuno TZTouch3 delivers exceptional mid-depth performance with an ultra-wide beam and precise target separation. Designed for pelagic anglers and those fishing the upper water column, this 1 kW transducer uses a medium frequency (60–100 kHz) to maximize coverage and echo returns while reducing clutter from surrounding targets.
Engineered as a Tilted Element Thru-Hull unit, the B175MW features a fixed 20° tilt that compensates for hull deadrise up to 24°, ensuring the ceramic element points vertically for maximum echo clarity. Its low-profile bronze housing is built to withstand demanding seas and is suitable for stepped, planing, or displacement hulls. Combined with exclusive Xducer ID technology, you’ll enjoy reliable identification and operation on your Furuno TZTouch3 system.
Key features
-
Ultra-wide beam – 57° to 73° (port/starboard) with an average 16° fore-aft coverage for broad under-the-hull visibility.
-
Medium-frequency 60–100 kHz – optimized for mid-depth performance and superior fish-target separation.
-
1 kW power – deep-water tracking down to 400 m (1,300 ft) with responsive depth readings.
-
Tilted Element Thru-Hull – fixed 20° tilt corrects hull deadrise and aligns for maximum echo returns.
-
Furuno TZTouch3 compatible – 12-pin connector for seamless integration with 12" and 16" displays.
-
Depth and fast-response temperature sensor included for quick water-temperature readings.
-
Bronze housing – rugged and suitable for various hull types (stepped, planing, displacement).
-
Exclusive Xducer ID technology for easy identification on your network.
-
Robust specifications – -10° to 40°C (14° to 104°F) operating range; 2.7 kg (6 lb) weight; 9–10 m cable options; 95 mm (3-3/4") hole size.
This transducer is the right choice when you need broad, mid-depth coverage with crisp targets, efficient performance at speed, and reliable Furuno TZTouch3 compatibility. It’s built to deliver dependable depth and temperature data while maximizing fish-finding potential in pelagic environments.
Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Specifications at a glance
-
Brand: Airmar Technology
-
Model: B175MW
-
Frequency: 60–100 kHz (Medium)
-
Beamwidth: 57°–73° (port/starboard) × 16° fore-aft
-
Power: 1 kW
-
Depth rating: 400 m (1,300 ft)
-
Tilt angle: 20°
-
Hull type: Bronze, for stepped/planing/displacement hulls
-
Connector: Furuno 12-pin
-
Cable length: 9 m (30') or 10 m (33') options
-
Temperature range: -10° to 40°C (14° to 104°F)
-
Hole size: 95 mm (3-3/4")
-
Weight: 2.7 kg (6 lb)
