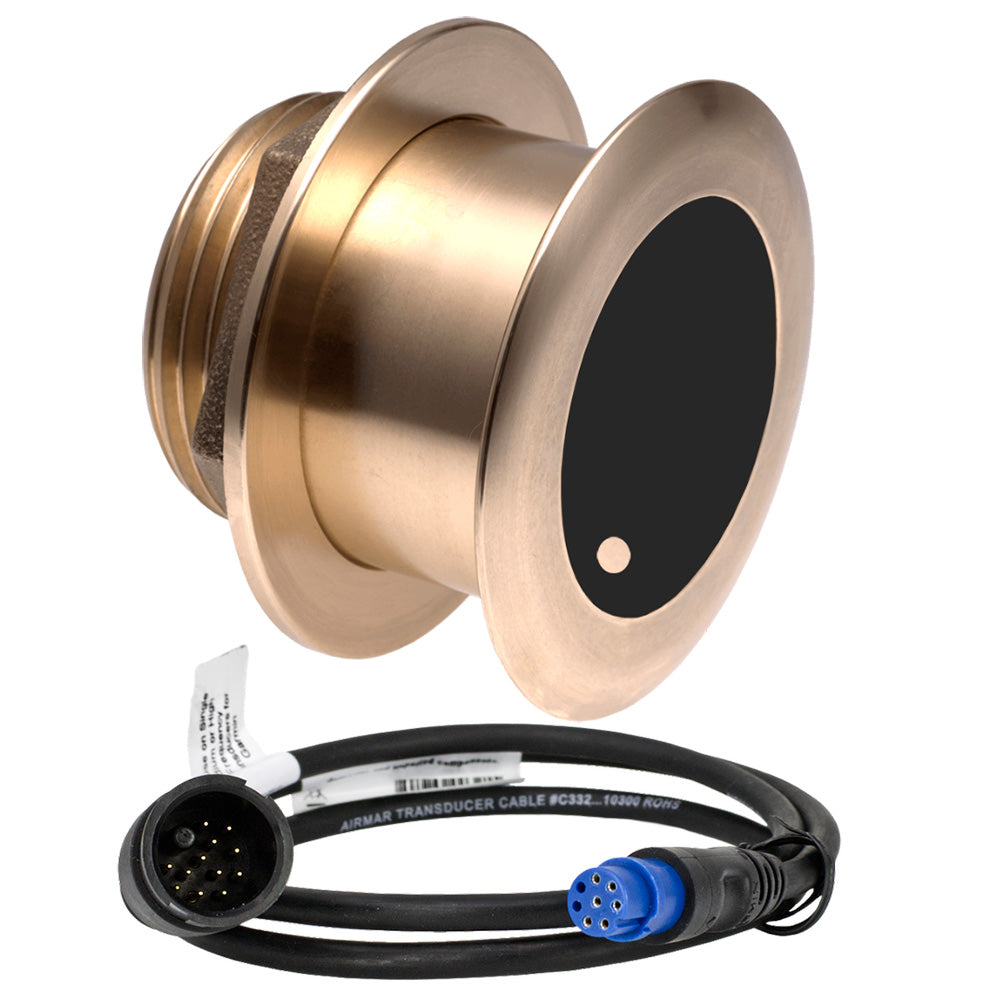

Meet the Airmar B175MW Med Ultra Wide 1kW Chirp Thru-Hull Transducer, engineered for Garmin 8-Pin FishFinders. This Chirp-ready Medium Ultra-Wide Tilted Element transducer delivers unmatched mid-depth performance with an expansive beam that couple with precision echo returns for reliable pelagic boat targeting and top-water column fishing.
The B175MW is built to maximize coverage under the boat. Its fixed 20° Tilted Element aligns the transducer with hull deadrise, ensuring the ceramic element points vertically for optimal echoes even on boats with varied hull angles. The result is exceptional target clarity, depth tracking, and fast water-temperature readings in demanding conditions.
-
Power and depth: 1 kW output with depth tracking down to 400 m (1,300 ft).
-
Frequency and beam: Medium frequency 60-100 kHz with an ultra-wide beamwidth of 57°–73° port/stbd and 16° average fore/aft—great for broad coverage and solid target separation.
-
Tilted Element design: 20° tilt to compensate hull deadrise (designed for 16°–24° deadrise).
-
Construction and mounting: Bronze housing for rugged use on stepped, planing, or displacement hulls; low-profile thru-hull design for clean integration at speed.
-
Compatibility: 8-Pin Garmin connector with Garmin FishFinders; features exclusive Xducer ID technology for reliable installation and performance.
-
sensors and range: Depth and fast-response water-temperature sensor; temperature range from -10° to 40°C (14° to 104°F).
-
Cable options: 9 m (30') or 10 m (33') cable lengths to fit your vessel layout.
-
Bandwidth and versatility: 40 kHz of total bandwidth from a single transducer; pairs well with other models like the B275LHW to cover low, medium-wide, and high-wide frequency ranges for targets from deep to shallow.
Designed for speed and precision, the B175MW delivers reliable sonar performance with excellent fish-target separation in mid-depth zones. Its durable bronze housing and flush-friendly thru-hull profile ensure maximum echo returns and stable readings at speed. When installed correctly, this transducer provides consistent sonar data for confident pelagic and sport fishing.
Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
