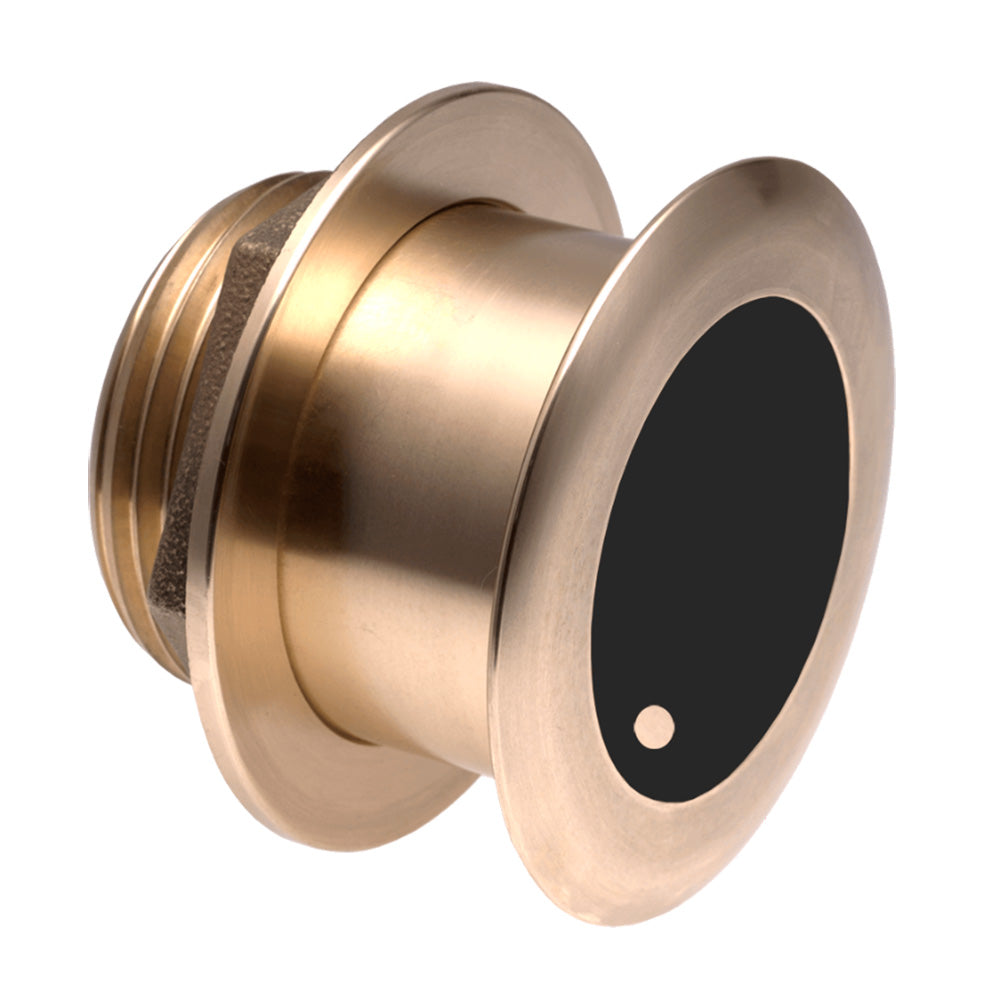

Meet the Airmar B175MW Medium Ultra-Wide 20-Degree 1kW CHIRP Transducer—an advanced Tilted Element™ thru-hull solution built for serious pelagic action. CHIRP-ready and designed to pair with Mix & Match cables, this transducer delivers exceptional mid-depth performance with a broad, water-wide view for precise targets across the water column.
-
Powerful 1 kW CHIRP transducer capable of depth tracking down to 400 m (1,300 ft).
-
Medium frequency 60–100 kHz with an expansive beam that covers 57°–73° port/starboard and 16° average fore/aft for maximum water coverage.
-
Tilted Element design at 20° (also available at 12° or 0°) to compensate for hull deadrise and orient the element for optimal returns.
-
Medium Ultra-Wide performance provides excellent fish-target separation and mid-depth performance, ideal for pelagic species in upper water columns.
-
Through-hull bronze housing suits stepped, planing, or displacement hulls while delivering solid speed resolution.
-
Xducer ID® technology for easy, reliable transducer recognition and setup.
-
Depth and water-temperature sensor built in for quick, at-a-glance environmental data.
-
9 m (30 ft) cable with a 95 mm (3-3/4") hole size and compatibility with a wide range of hulls up to 11 m (36') LOA.
-
Single-band CHIRP-ready operation and 40 kHz total bandwidth from a single transducer for versatile performance.
-
Lightweight and compact at about 2.7 kg (6 lb), engineered for reliable performance at speed.
The B175MW is engineered for serious mid-depth exploration, delivering outstanding echo returns and precise fish targeting while maintaining speed and clarity across the hull. Its low-profile thru-hull design minimizes drag and yields crisp resolution even when running at higher speeds. When paired with other popular models like the B275LHW, anglers gain access to a broad spectrum of frequencies—from Low to Medium-Wide to High-Wide—allowing you to interrogate targets from deep to shallow with ease.
Whether chasing pelagic species or scanning the upper water column for balling schools, the B175MW Tilted Element transducer offers reliable performance, precise depth readings, and effortless installation. Note: requires Mix & Match Cable for setup. Designed for fiberglass or wooden hulls and suitable for vessels up to 36 feet, this transducer is a premier choice for anglers seeking depth, detail, and broader sonar coverage in one compact package.
