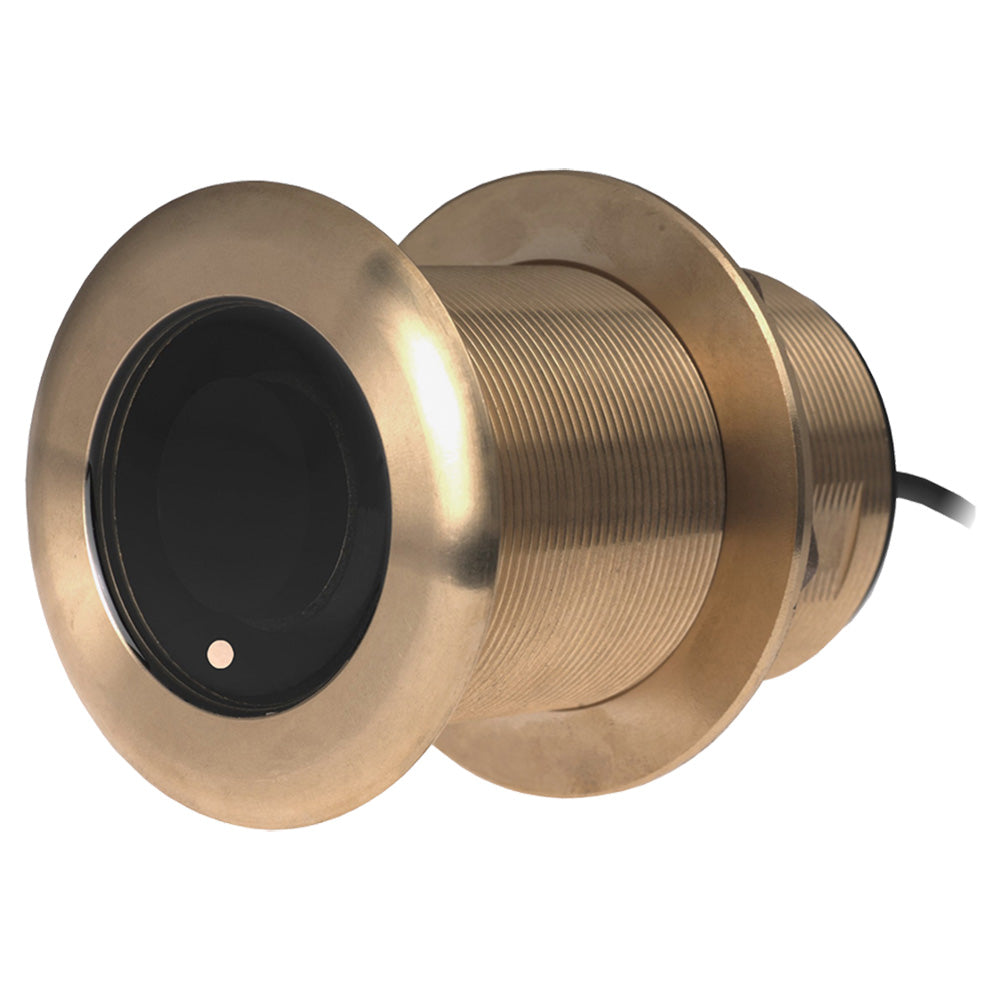

Experience precise depth and fast-response water temperature sensing with the Airmar B60 Thru-Hull Transducer, a 600 W dual-frequency Tilted Element transducer designed for Navico xSonic systems. The element is fixed at a 20° tilt inside the housing, optimizing beam orientation to compensate for hull deadrise and deliver maximum echo returns for accurate readings.
-
Power and performance: 600 W transducer built for reliable depth and temperature data.
-
Dual-frequency depth: 50 kHz with a wide 45° beam for depth performance to 353 m (1200') and 200 kHz with a 12° beam for depth performance to 206 m (700').
-
Tilted Element technology: 20° tilt fixed in the housing to correct hull deadrise and ensure the beam points downward for maximum returns when mounted flush.
-
Through-hull versatility: Low-profile bronze housing extends only 5 mm (3/16") outside the hull and is suitable for fiberglass or wood hulls, making it perfect for center-console or trailered boats.
-
Compatibility and mount: 9-pin connector for Navico xSonic systems; 60 mm (2-3/8") hull hole; usable shaft length of 68.5 mm (2.70").
-
Material and options: Bronze housing standard; stainless steel SS60 option available for universal hull materials and harsher conditions.
-
Additional specs: Max dead rise up to 24°, temperature sensing, weight approximately 1.4 kg (3 lbs).
Designed for boats up to 8 m (26') in length, the B60 delivers dependable depth readings and real-time water temperature in leisure, yachting, and fishing applications. Note: This product may not be returned to the original point of purchase; for issues or concerns, please contact the manufacturer directly.
