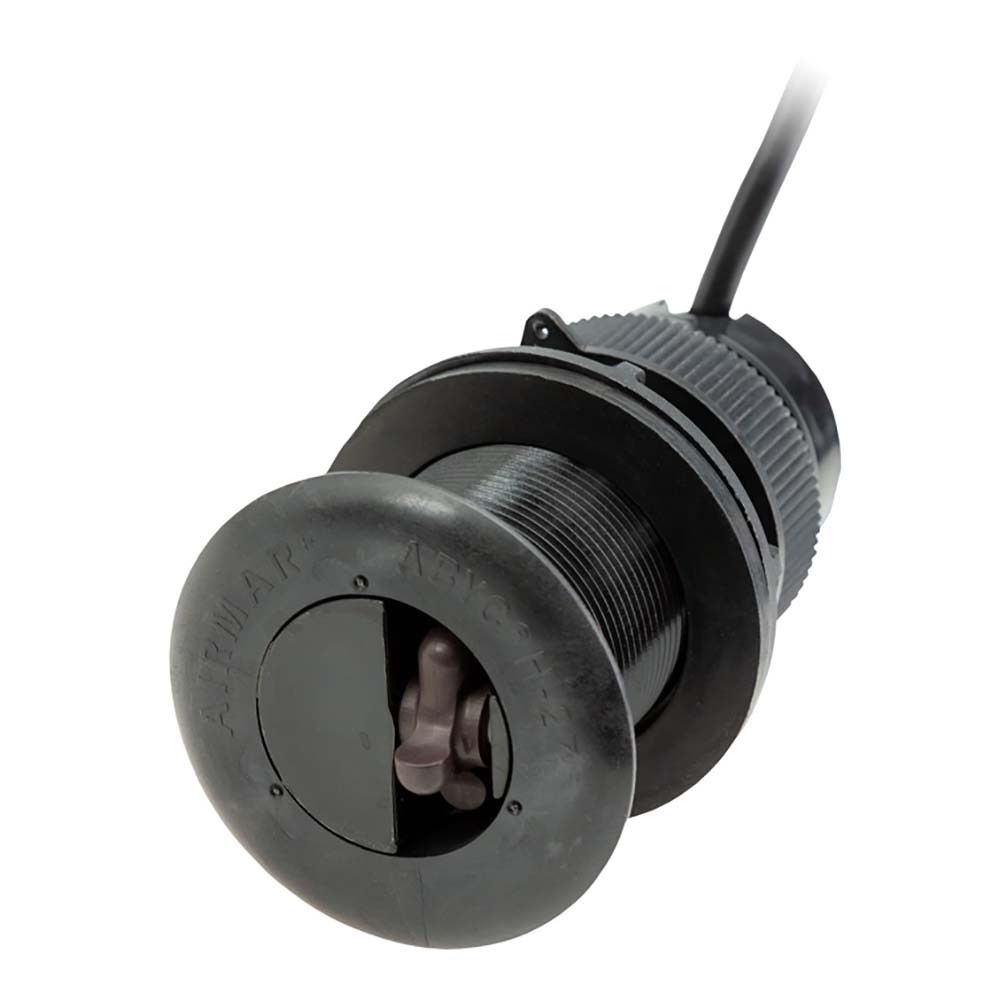

The DST810 Plastic Smart Sensor is a compact, all-in-one hull data solution for sail and powerboats. It combines depth, speed-through-water, water temperature, and attitude data with wireless calibration and NMEA 2000 connectivity to streamline setup and optimize performance.
-
235 kHz depth measurement: Depth range from 0.5 m (1.6') to 100 m (330') with reliable readings in varied conditions.
-
5 Hz speed output: Updates per second for smoother, more responsive speed data and faster decision-making.
-
Integrated attitude sensor: Provides heel and trim information to help optimize hull performance and ride quality.
-
Heel-compensated speed calibration: Simple, fast calibration stored in the DST810, independent of onboard displays.
-
NMEA 2000 connectivity with CAST App: Wireless setup, calibration, and configuration without needing expensive PC software.
-
Wireless BLE access: Bluetooth Low Energy connectivity with up to 30 feet range for quick calibration and data access via the CAST App.
-
Power and installation: 9–16 VDC power and a standard 6 m (20') cable; hull-friendly design suitable for a wide range of vessels.
-
Single-sensor data package: Depth, heel-corrected speed-through-water, heel and trim, and water temperature are all available from one installation, with calibrations and NMEA configurations stored for consistency across the vessel.
-
Calibrations stored in the sensor: Calibrations live in the sensor, ensuring readings stay consistent across heel angles and speed ranges.
-
CAST App for fast wireless calibration and configuration: Enables quick setup and adjustments without PC software, keeping readings aligned across the fleet.
The DST810 simplifies hull performance monitoring by delivering all essential data in a single, install-friendly package. With calibrations saved in the sensor and accessible via the CAST App, you get consistent depth, speed-through-water, water temperature, and attitude readings across heel angles and sailing speeds—without swapping cables or rebuilding configurations. NMEA 2000 networking lets you share data with chartplotters and instruments, while Bluetooth enables fast wireless calibration and remote access within range. This compact, hull-friendly device reduces clutter, speeds up setup, and supports smarter navigation and performance decisions on every voyage.
