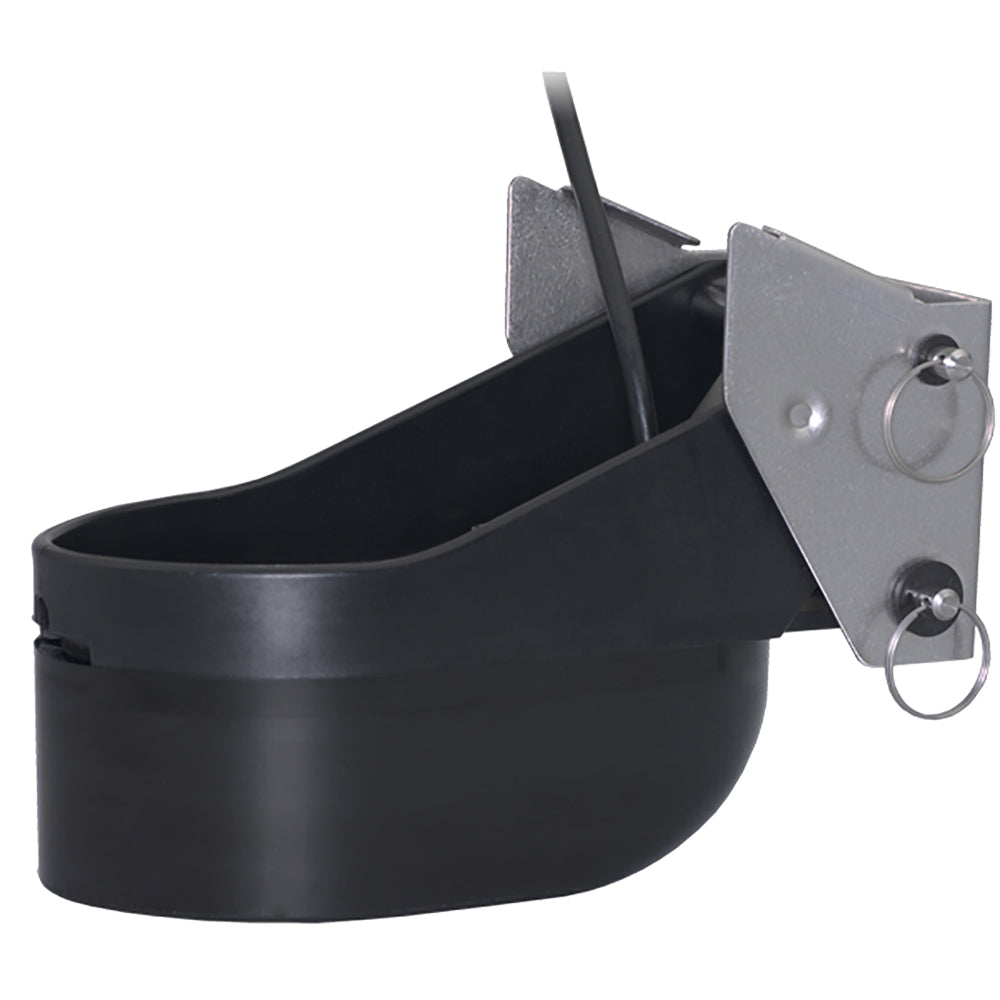

Airmar TM275C-LHW 1kW Chirp Transom Mount Transducer delivers wide-beam, high-resolution Chirp performance for superior fish targets and expansive coverage under your boat. Built for both inshore and pelagic fishing, this dual-frequency Chirp-ready transducer blends deep-water power with sharp shallow-water detail for a truly versatile sonar solution.
Key benefits
-
Dual-frequency Chirp-ready: High Frequency 150–250 kHz with a constant 25° beam for excellent shallow-water detail and consistent coverage.
-
Powerful low-frequency performance: Low Frequency 42–65 kHz with up to 1 kW of power, enabling deep readings to 914 m (3000') and flexible beamwidth from 25° down to 16°.
-
Wide beam = more coverage: The high wide beam provides twice the coverage under the boat and clearer fish arches on the display compared to many high-frequency transducers.
-
Deep-water capability plus 500' shallow water insight: Great deep-water performance with the depth- and fast-response water-temperature sensor for accurate readings in any condition.
-
Transom-mount design: Robust stainless steel mounting bracket for easy installation on boats up to 10 m (32') with compatible hulls (fiberglass, wood, aluminum, or steel).
-
Advanced technology: Exclusive Xducer ID® technology, eight internal broadband ceramic assemblies, and urethane housing ensure reliability and compatibility across a wide range of boats and sounder systems.
-
Broad bandwidth coverage: 123 kHz of total bandwidth from a single transducer, covering popular 50 and 200 kHz frequencies plus everything in between.
-
Installation notes: Requires appropriate Mix and Match Cable; transom angle range from 3° to 21°; weight ≈ 4 kg (8.9 lb).
Specifications
-
Manufacturer: Airmar
-
Manufacturer Part No: TM275C-LHW-MM
-
UPC: 801769002041
-
Power: 1 kW
-
Low Frequency: 42–65 kHz; max depth 914 m (3000'); beam 25° to 16°
-
High Frequency: 150–250 kHz; max depth 152 m (500'); beam 25° (constant)
-
Bandwidth: 123 kHz total
-
Transducer type: Transom-mount with stainless steel bracket
-
Recommended boat size: Up to 10 m (32')
-
Hull types: Fiberglass, wood, aluminum or steel
-
Transom angles: 3° to 21°
-
Acoustic Window: Urethane
-
Housing: Urethane with stainless steel bracket
-
Internal construction: Eight broadband ceramic assemblies
-
Special notes: Depth and fast-response water-temperature sensor; mix-and-match cable required
-
Return policy note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
