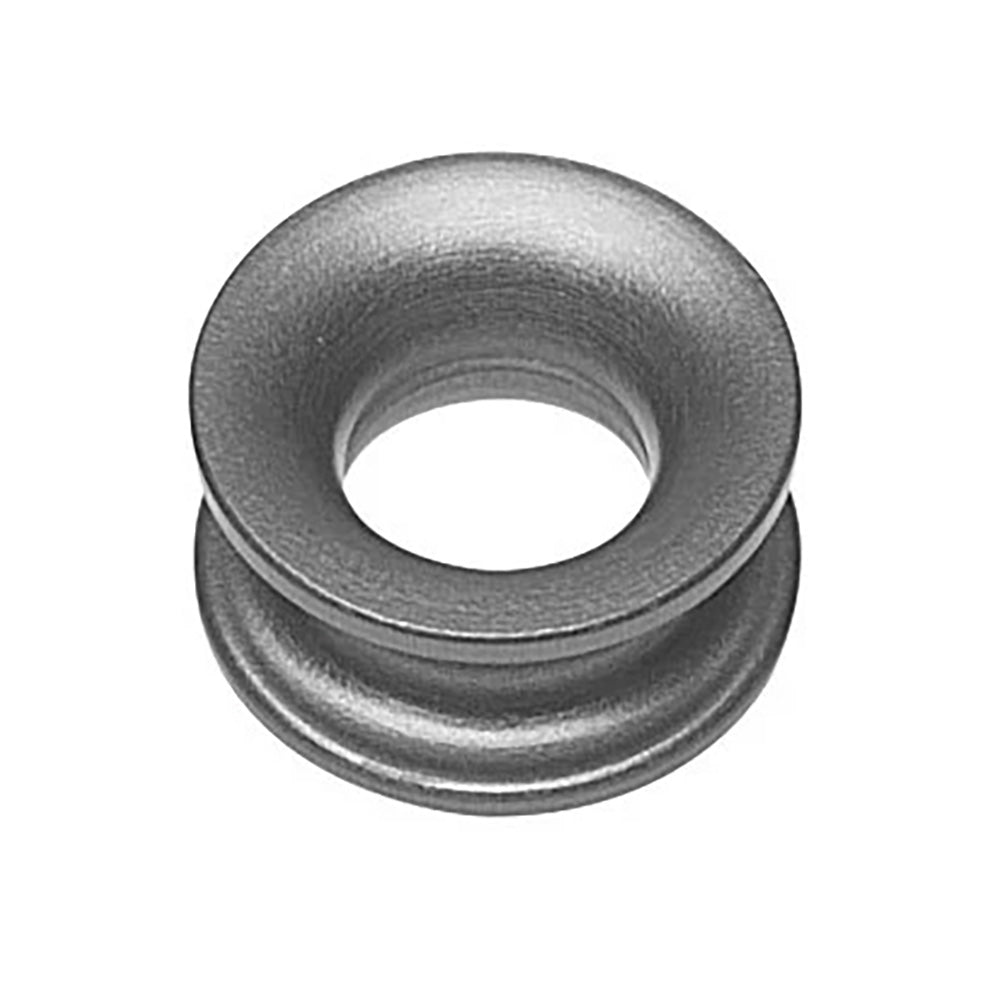

The Barton High Load Eye 6mm Bore is a rugged marine rigging component designed for demanding conditions. Built by Barton Marine from marine-grade aluminum and finished with HV500 hard anodizing, it delivers exceptional strength with minimal weight on deck.
-
Material & Finish: Marine-grade aluminum with HV500 hard anodized finish for corrosion resistance in saltwater environments.
-
Size Range & Bullseye Diameters: Six sizes to fit lines from 3 mm to 16 mm, with bullseye diameters from 6 mm to 28 mm. The smallest size accepts a 3 mm line; the largest accommodates a 16 mm line.
-
Strength-to-Weight Advantage: 272% stronger and 51% lighter than standard plain bearing equivalents.
-
Low Friction & Efficiency: HV500 hard anodizing and curved surface profile minimize friction, with only a 15% increase over standard bearings in typical use.
-
Wear-Resistant Performance: After more than 300 hours of abrasion testing, the HV500 coating shows no visual wear, delivering long service life.
-
Durability & Construction: Marine-grade aluminum construction with a hard anodized finish for corrosion resistance in challenging saltwater environments.
-
Applications: Ideal for lazy jacks, barber haulers, aft spring tidies (AST base tidies), stanchion lead eyes, kickers, tweakers, and Genoa barber haulers.
-
Manufacturer & Part: Barton Marine — Part No: 60449; UPC: 5035088604494.
-
Test Data Note: Data based on using 4 mm D12 SK75 Dyneema core.
Upgrade your rigging with a component designed to deliver maximum strength and durability without adding unnecessary weight. The Barton High Load Eye 6mm Bore provides a corrosion-resistant, long-lasting solution for on-deck hardware under load. The HV500 coating minimizes wear and friction to help extend service life, while its superior strength-to-weight ratio reduces overall rigging weight. With six size options (3–16 mm lines; bullseyes 6–28 mm), it’s versatile for lazy jacks, barber haulers, tidies, stanchion leads, kickers, tweakers, and Genoa barber haulers, providing reliable performance across demanding sailing conditions.
