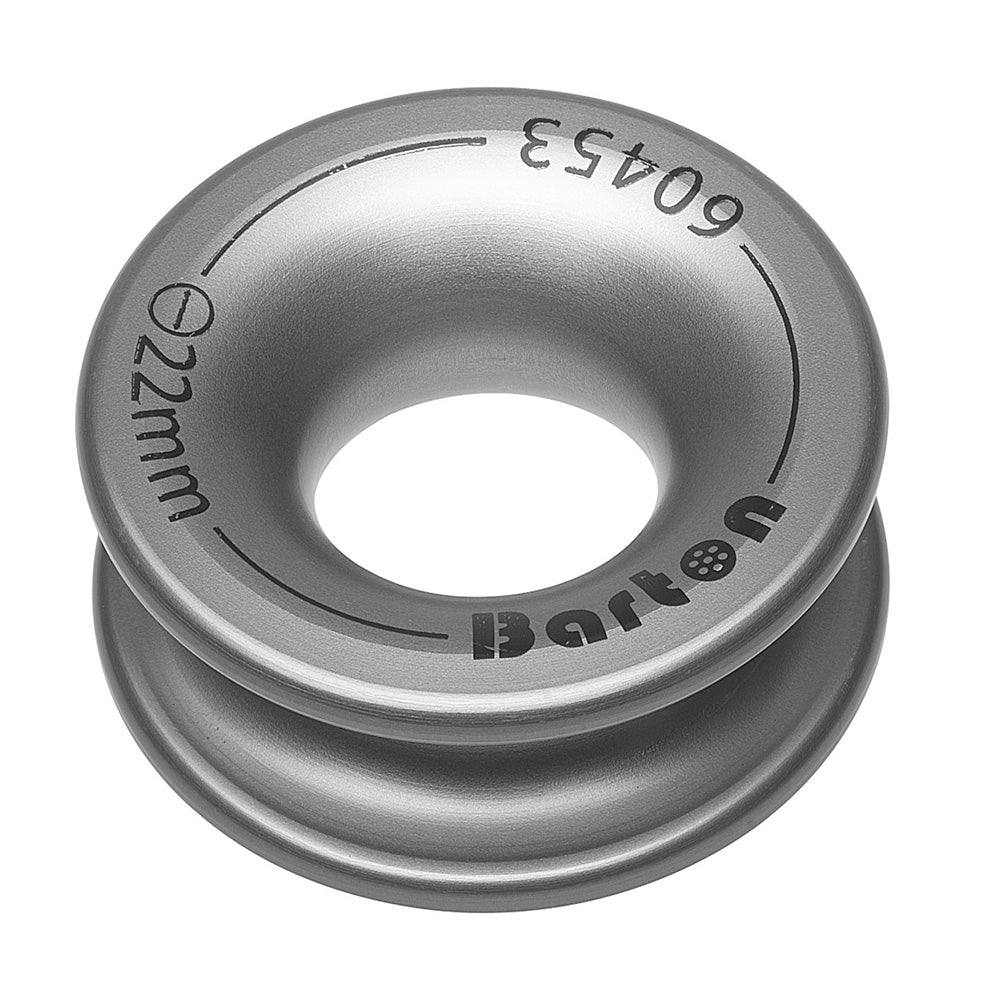

Barton Marine High Load Eye 22mm Bore is a precision-engineered marine hardware solution designed to maximize the strength and efficiency of the eye while delivering exceptional wear resistance and weight savings. Crafted from marine-grade aluminium and finished with hard anodising (HV500), this eye features a carefully developed curved surface profile to keep friction as low as possible and to endure the harsh demands of on-board systems.
Key benefits
-
High load eye with an outstanding strength-to-weight ratio. Compared with a standard plain bearing block, friction increases by only ~15%, strength increases by ~272%, and weight is reduced by ~51% (data based on using a 4mm D12 SK75 Dyneema core).
-
Wear resistance thanks to HV500 hard anodising; after over 300 hours on an abrasion tester, there were no visual signs of wear on the coating.
-
Low friction and smooth operation enabled by the optimized profile of the curved surfaces, ideal for high-load sailing applications.
-
Six sizes available, offering versatility across a wide range of deck and rigging setups. Manufactured in marine-grade aluminium with a hard anodised finish for longevity.
Materials and construction
- Manufactured in marine-grade aluminium with a durable hard anodised HV500 finish.
- Lightweight design engineered for strength, delivering superior performance in weight-critical applications such as kickers, tweakers, and barber haulers.
- Data-based performance derived from a 4mm D12 SK75 Dyneema core configuration.
Applications and practical use
These versatile high-load eyes are suitable for a variety of on-board duties, including lazy jacks, barber haulers, mast base tidies, and stanchion lead eyes. The smallest size accommodates a 3mm line with a bullseye diameter of 6mm, while the largest size accepts a 16mm line with a bullseye diameter of 28mm.
Specifications and availability
-
Available in six sizes to match diverse rigging requirements.
- Manufacturer: Barton Marine
- Manufacturer Part No: 60453
- UPC: 5035088604531
Upgrade to the Barton Marine High Load Eye 22mm Bore for reliable performance, reduced weight, and proven durability under load. Perfect for sailors who demand strength, efficiency, and long-lasting hardware on their vessels.
