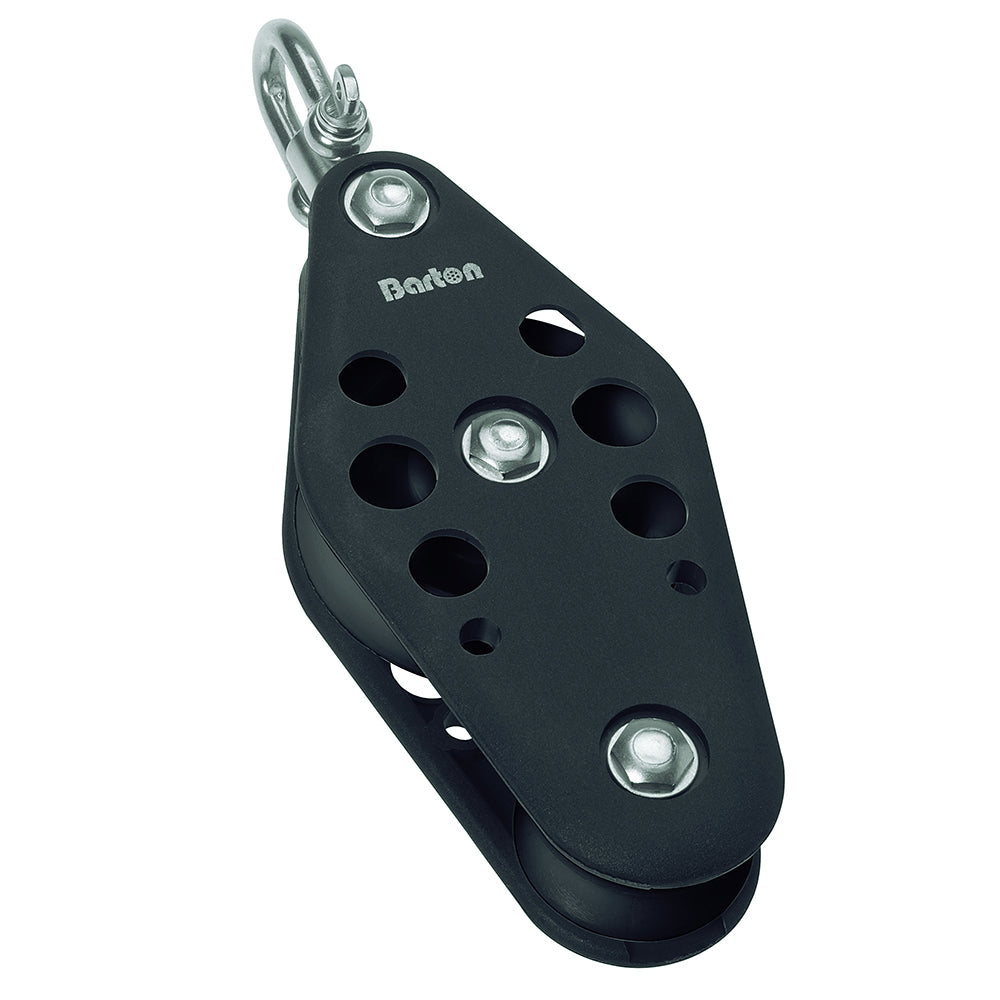

The Barton Marine Series 5 Fiddle Swivel Block (54mm) is a rugged, low-friction solution for demanding sailboat rigging. It combines a precision molded acetal sheave with a large brass bearing to deliver smooth operation under high loads, making halyards, sheets, and control lines easier to trim and adjust.
-
Sheave size: 54 mm x 17 mm
-
Max rope diameter: 12 mm
-
Safe working load (SWL): 750 kg / 1650 lbs
-
Breaking load: 1500 kg / 3300 lbs
-
Length: 185 mm
-
Weight: 300 g
-
Construction: Acetal sheave with large brass bearing
-
Series: Series 5
-
Manufacturer: Barton Marine
-
Manufacturer Part No: N05 430
-
UPC: 5035088081424
-
Applications: Suited for halyards, sheets, and control lines on sailboats
-
Movement: Fiddle swivel design provides freedom of movement under load
Designed for strength and reliability, this fiddle swivel block maintains strong rope control while allowing freedom of movement under load. The combination of an acetal sheave and brass bearing delivers smooth, low-friction operation that helps you trim and adjust lines with precision. With a 12 mm rope capacity and a SWL of 750 kg, it offers robust performance for demanding rigging tasks on sailboats while staying compact at 185 mm in length and 300 g in weight.
