Bennett 189E Hydraulic Trim Tab Kit 18" x 9" w/Euro Style Controls
Bennett Classic Hydraulic Trim Tabs are ideal for boats that stay in the water and require high speed action under extreme marine conditions. These hydraulic trim tabs help your boat get on the plane faster and on the plane at intermediate speeds. When your boat accelerates, your bow rises, creating hull drag and reducing fuel efficiency. Bennett trim tabs get your boat on plane quickly, which gets rid of hull drag and allows your boat to use less fuel. Trim tabs can also be used to correct uneven loads on your boat.
Every Bennett trim tab system carries with it an accumulation of nearly 40 years of research, development, and testing and is designed to provide years of dependable service. Every trim tab is sheared and bent, not welded. Welding alters the properties of stainless steel which invites corrosion. With Bennett's high quality trim tabs, maintenance is minimal, resulting in long-term value. All Bennett Trim Tabs are easy to install and service.
This Trim Tab Kit includes two Bennett Hydraulic Actuators. These actuators are strong, flexible nylon/fiberglass hydraulic cylinders that push the tabs into position. All hydraulic lines and wires are internal, concealed by the upper hinge, so they're not exposed to harsh environments.
The Bennett Classic Hydraulic Trim Tab Kits are recommended for the following boat types: flats boats, center consoles, trailered boats, cuddy cabins, dual consoles, deck boats, bowriders, bass boats, walkarounds, runabouts & ribs, and cruisers.
Bennett Trim Tab Specifications:
- Euro Style Controls
- Fits Boats 22' to 30'
- Trim Tab Blade
- Width: 18"
- Depth: 9"
- Bennett Part#: 189E
- Yamaha Part#: 6BT-50001-87-00
Trim Tab Benefits:
- Increase speed
- Improve visibility and safety
- Fast on plane
- Improve fuel efficiency
- Precise and accurate control

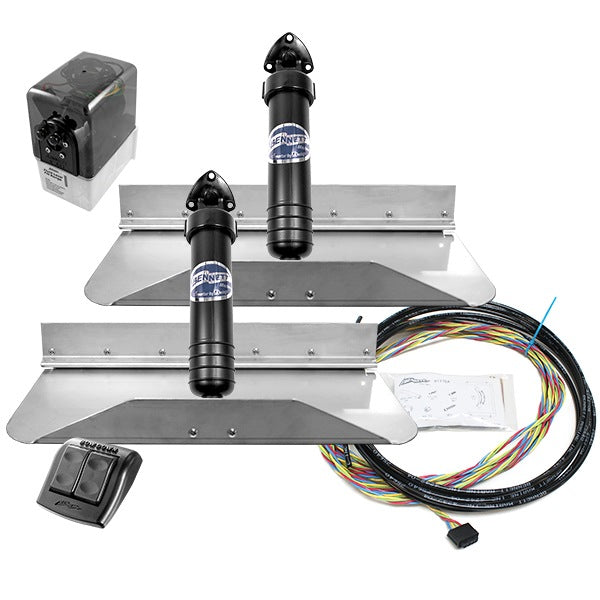

Included in Trim Tab Kit:
- (2) Trim Plane Assemblies
- (2) A1101A Hydraulic Actuators
- (1) V351HPU Hydraulic Power Unit
- (1) ES2000 Euro-Style Rocker Switch
- (1) Hardware Bag
- (1) 20' Hydraulic Tubing
Limited Lifetime Warranty
Click here for Bennett Hydraulic Trim Tab Kit w/Euro Style Controls Installation Instructions
