Description
Bennett M120OBI Sport 10" x 12" Hydraulic Trim Tab Kit w/ All-in-One Control
Get on plane fast with the Bennett M120 Hydraulic Sport Tabs. These trim tabs are ideal for boats wit limited transom space and feature a unique batwing tab design that provides 30% more lift than conventional trim tabs. Bennett's Hydraulic tabs eliminate porpoising, improve visibility, and increase efficiency and performance. This Trim Tab Kit includes two Bennett Hydraulic Actuators. These actuators are strong, flexible nylon/fiberglass hydraulic cylinders that push the tabs into position. All hydraulic lines and wires are internal, concealed by the upper hinge, so they're not exposed to harsh environments.
Also included is Bennett's All-in-One Indicator Control. This user-friendly helm control is designed to be a stand-alone unit that's easy to install and operate. This control is equipped with convenient "All Up" and "All Down" buttons, and has auto tab retraction so your tabs retract up when the ignition is powered off.

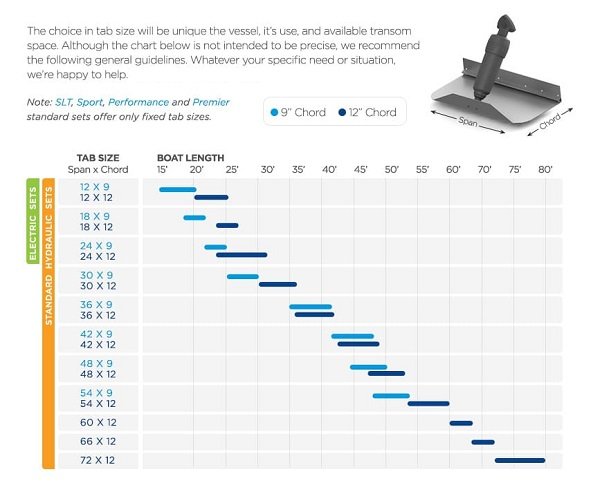

Trim Tab Size:
- Width: 10"
- Depth: 12"
Features:
- Includes All-in-One Indicator Control Unit
- Sport batwing tab design provides 30% more lift
- Get on plane fast, and stay on plane at intermediate speeds
- Correct listing and uneven loads
- Improve visibility and safety
- Reduce pounding and eliminate porpoising
- Low maintenance, long-term value, and ease of service
- Bennett Part#: M120OBI
- Yamaha Part#: 6BT-50042-25-00

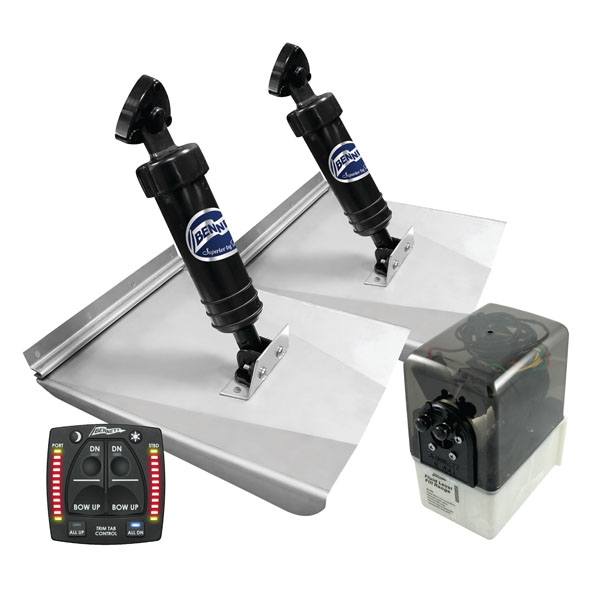

Complete Hydraulic Trim Tab Kit Includes:
- (2) 10" x 12" Trim tab plane assemblies
- (2) A1200SRC Hydraulic actuators
- (1) V351HPU1 Hydraulic power unit
- Hydraulic tubing and hardware
- All-in-One Indicator Control
Bennett Hydraulic Trim Tabs are backed by a limited lifetime warranty. The All-in-One control is backed by a 3 year warranty.
Basic System Diagram:
The Bennett OBI9000H All-in-One Indicator Control has been designed to accommodate new installations, as well as common retrofit installations. Be sure to read the full instructions to determine which items you will need.
Click here for Bennett M120OBI Hydraulic Sport Trim Tab Kit Installation Instructions
Frequently Asked Questions
What is the Bennett M120 Hydraulic Sport Trim Tab Kit designed to do?
The Bennett M120 Hydraulic Sport Trim Tab Kit is designed to help improve boat performance, handling, and ride quality. It helps boats get on plane faster, reduce porpoising, improve visibility, and increase overall efficiency and performance.
What makes the Bennett M120 Sport Tabs different from standard trim tabs?
The Bennett M120 uses a sport batwing tab design that provides 30% more lift than conventional trim tabs. It is also ideal for boats with limited transom space.
What is included with this hydraulic trim tab kit?
This kit includes two 10" x 12" trim tab plane assemblies, two A1200SRC hydraulic actuators, one V351HPU1 hydraulic power unit, hydraulic tubing and hardware, and Bennett’s All-in-One Indicator Control.
Does this kit include a trim tab control?
Yes. This kit includes Bennett’s All-in-One Indicator Control, a stand-alone helm control designed for easy installation and operation. It also features convenient All Up and All Down buttons and auto tab retraction when the ignition is powered off.
How are the hydraulic lines and wires protected in this trim tab system?
The hydraulic lines and wires are routed internally and concealed by the upper hinge so they are not exposed to harsh marine environments. This design helps improve protection and long-term durability.
