Description

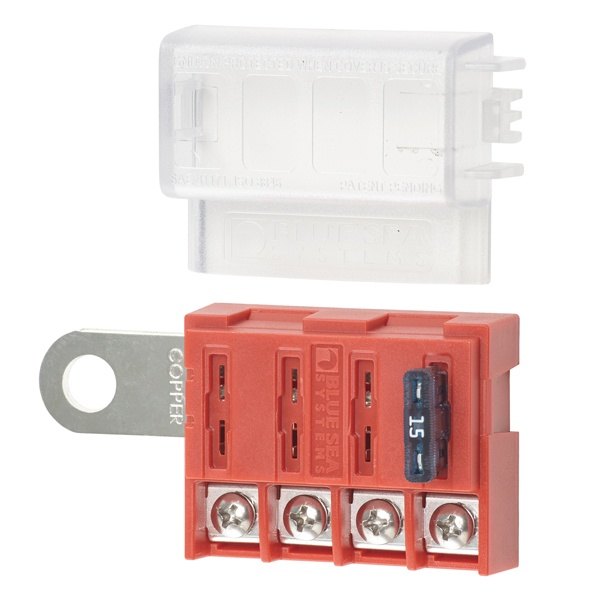

Blue Sea Systems ST Blade Battery Terminal Mount Fuse Block
The Blue Sea ST Blade Battery Fuse Block mounts on the battery terminal stud and includes an insulating cover.
Features:
- Easy to install (4) ATO/ATC fused circuits
- Screw terminals for securing wires
- Four nylon insulated ring terminals included
- Insulating cover included
- Accepts small format circuit labels
- Includes (1) fuse
Specifications:
- Circuits: 4
- Maximum Amperage: 100A per block | 30A per circuit
- Maximum Voltage: 32V DC

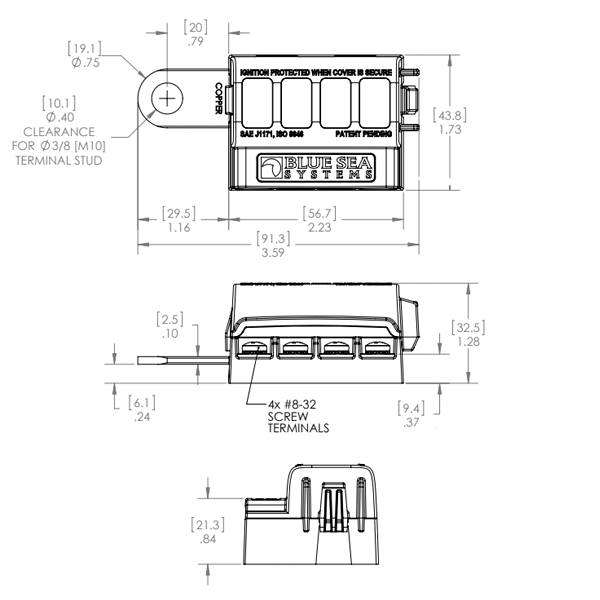

- Mounting: Clearance for 3/8" stud
- Screw Terminal Type: #8-32 screws with captive star lock washer
- Screw Terminal Torque: 15 in-lb
- Weight: 0.25 lb
