Description

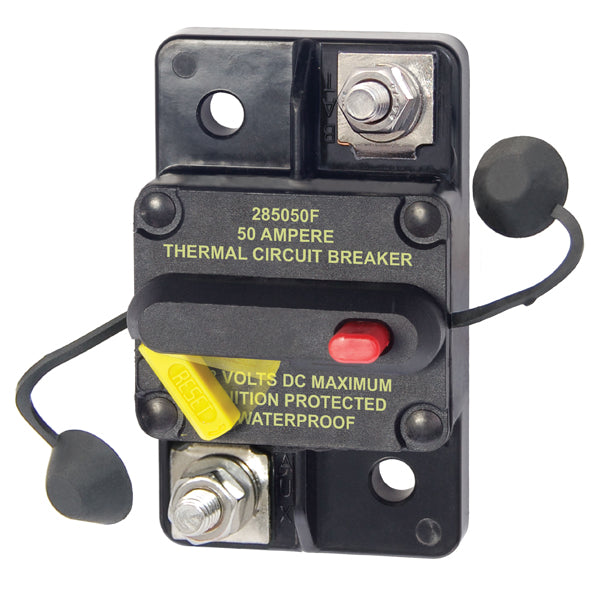

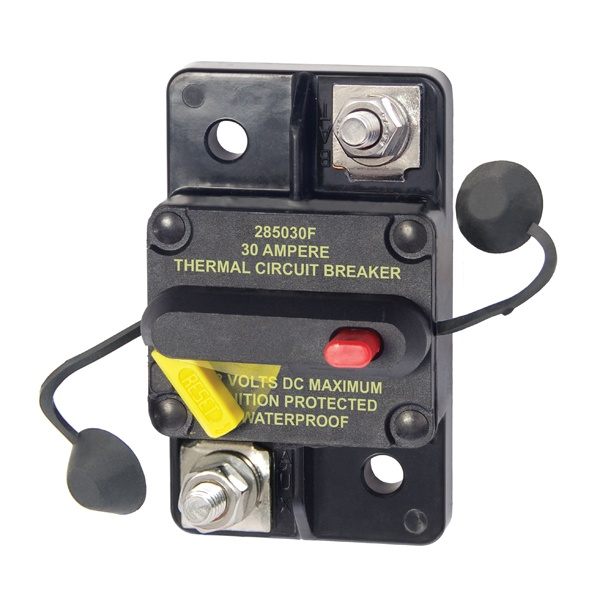

Blue Sea Systems 285 Series Surface Mount Circuit Breaker
The Blue Sea 285 Series Circuit Breaker is a drop-in replacement for 185 Series circuit breakers. This circuit breaker combines switching and circuit breaker function into one unit. Note: Do not use as a switch where high inrush currents are expected.
Features:
- Surface Mount
- Visible reset lever shows open condition
- Ignition Protected; Safe for installation aboard gasoline powered boats
- Weather resistant
- "Trip free" cannot be held closed after trip
- Available in 30, 40, 50, and 60 AMP models
Meets SAE J1171 external ignition protection requirements
Specifications:
- Maximum Voltage: 48V DC
- Terminal Stud: M6 (accepts 1/4" ring terminal)
- Terminal Stud Torque: 50 in-lb
- Interrupt Capacity: 3000A @ 48V
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Circuit Breaker Type: Thermally responsive Bi-metal blade
- Circuit Breaker Class: Type III - switchable/manual reset - trip free
