Description

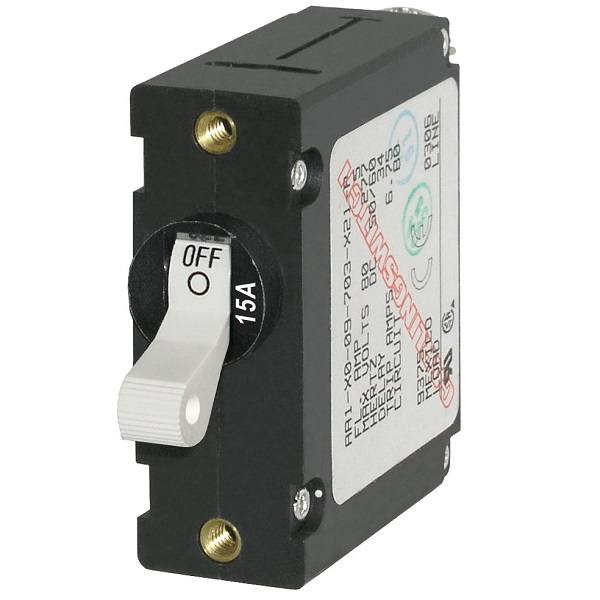

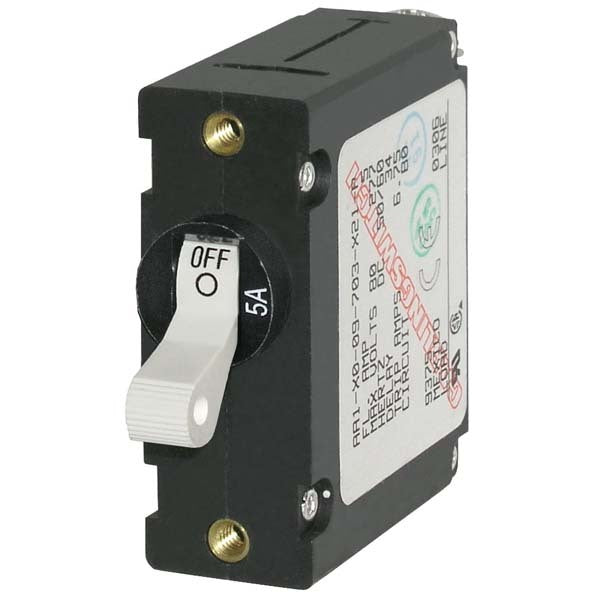

Blue Sea Systems White A Series Toggle Circuit Breaker - Single Pole
The Blue Sea systems A Series Circuit Breakers are the industry standard for Blue Sea Systems' electrical panels. These toggle circuit breakers combine switching and circuit protection into a single device.
Features:
- Meets American Boat and Yacht Council (ABYC) standards
- "Trip Free" design cannot be held "ON" during fault current condition
- Available in 5, 10, 15, 20, & 30 Amp Models
Specifications:
- Actuator Style: Toggle
- Poles: 1
- Maximum Voltage: 240V AC | 65V DC
- Circuit Breaker Type: Magnetic Hydraulic
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Screw Terminal Torque: 14 in-lb
Interrupt Capacity: 3000A @ 120V AC | 1500A @ 240V AC [TUV] | 3000A @ 240V AC [UL 10477] | 7500A @ 65V DC

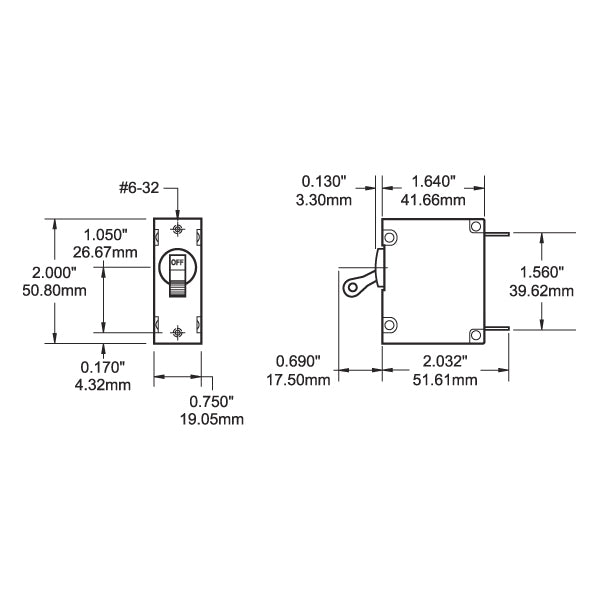

Cutout Template:
