Description

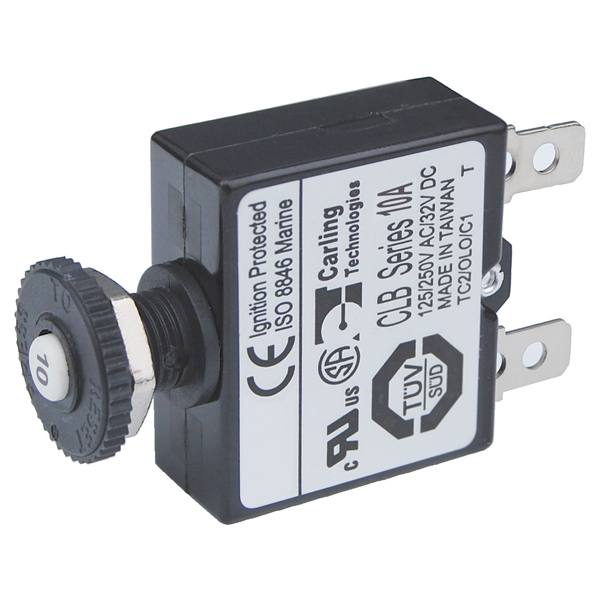

Blue Sea Systems Reset-Only Push Button Circuit Breaker
This Blue Sea Systems Push Button Circuit Breaker features a compact design that enables high density circuit protection configurations. This circuit breaker is ignition protected, so it is safe for installation aboard gasoline powered boats. The branch circuit breaker allows for 24 hour circuit protection while the quick connect terminal style is incorporated into many systems. The trip free design and push to reset makes for easy operation.
Features:
- Branch circuit breaker (can also be used for 24-hour circuit protection)
- Push-to-reset operation
- Quick connect terminal style
- "Trip Free" design cannot be held "ON" during fault current condition
- Ignition Protected
Specifications:
- Maximum Voltage: 32V DC
- Mounting: Panel Mount 3/8-27 UNS
- Terminal Type: 1/4 Male Quick Connect
- Interrupt Capacity: 3000A @ 14.7V | 2500A @ 28V
- Minimum Operating Temperature: 14° F
- Maximum Operating Temperature: 140° F
- Screw Terminal Torque: 6 in-lb
- Weight: 0.06lb

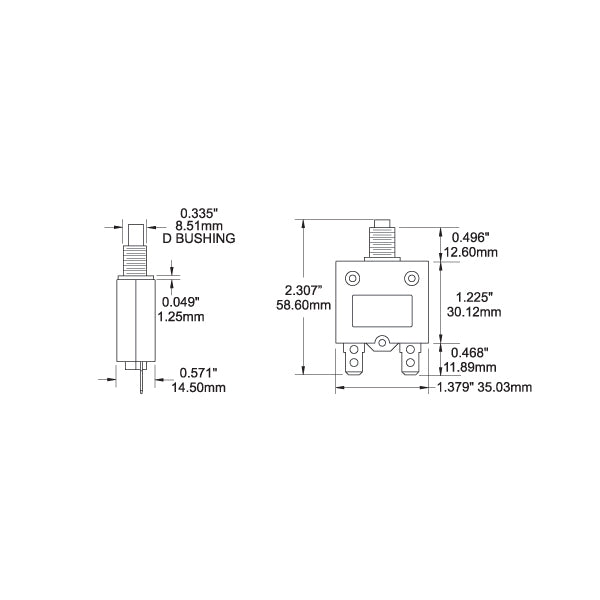

Cutout Dimensions:
Options Available:
- 7052 - 5AMP
- 7054 - 10AMP
- 7056 - 15AMP
- 7057 - 20AMP

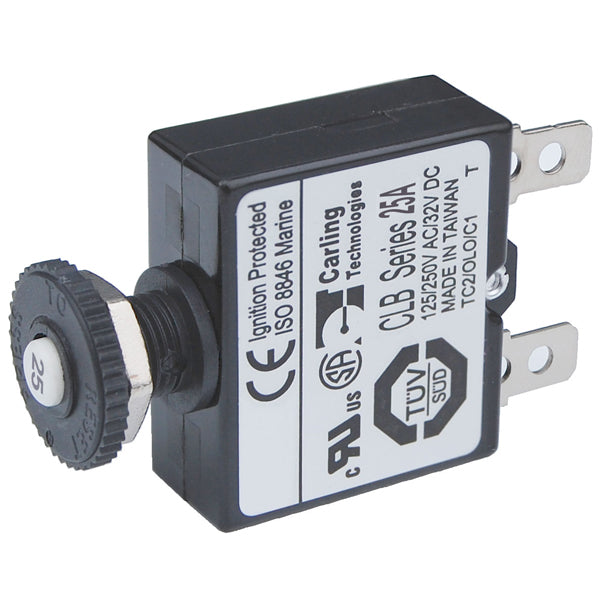

- 7058 - 25AMP
