Description

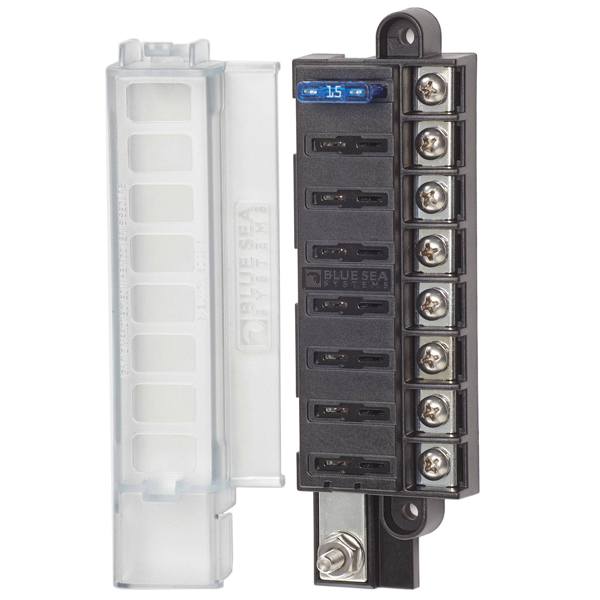

Blue Sea Systems ST Blade Compact 8 Circuit Fuse Block
Blue Sea Systems' Compact Fuse Blocks provide surface mount circuit protection for ATO/ATC fuses in a compact footprint. Includes a cover and eight write-on circuit labels. The insulating cover meets ABYC/USCG insulation requirements.
- Ignition protected when cover is secure - meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Single side design allows wire entry from one side to minimize footprint
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes 8 write-on circuit labels
- Fuses sold separately
Specifications:
- Circuits: 8
- Maximum Amperage: 100A per block | 30A per circuit
- Maximum Voltage: 32V DC
- Mounting: #8 Screw
- Terminal Stud Torque: 24 in-lb
- Screw Terminal Torque: 15 in-lb
- Screw Terminal Type: #8-32 Screws with captive star lock washer
- Terminal Stud Size: #10-32
- Weight: 0.40lb
