Description

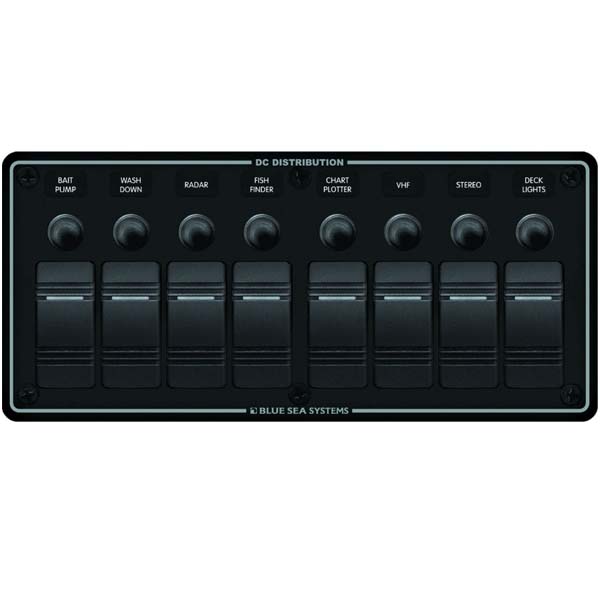

Blue Sea Water Resistant Circuit Breaker Panel - 8 Position
This Blue Sea Circuit Breaker Panel is designed for flybridge and open cockpit applications. Panel front is rated IP66 and is protected against powerful water jets; the panel is also ignition protected, so it is safe for installation aboard gasoline powered boats.
Features:
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
- Push button reset-only circuit breakers with waterproof boots
Specifications:
- Positions: 8
- Nominal Voltage: 12V DC | 24V DC
- Panel Cumulative Rating: 90A
- Switch Rating: 20A @ 12V DC | 15A @ 24V DC
Dimensions: 4.25" Height x 9.37" Width x 3.25" Depth
Click to Download Blue Sea 8371 Circuit Breaker Panel Instructions
Click Here to Download Blue Sea 8371 Circuit Breaker Panel Cutout Template
