Description

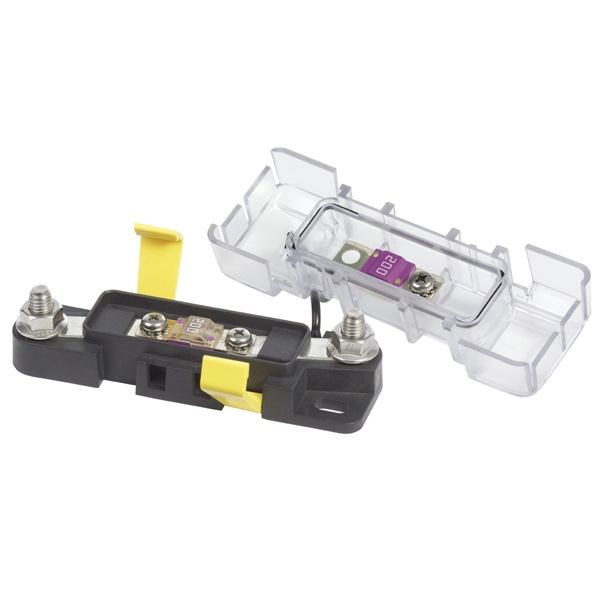

Blue Sea AMI / MIDI Safety Fuse Block
The Blue Sea AMI / MIDI Safety Fuse Block can be used with fuses from 30 to 200 amps. This fuse block is ignition protected for installation aboard gasoline or diesel powered boats. The sealed cover protects fuses from the harsh marine environment, and meets ABYC/USCG insulation requirements. Accepts Blue Sea Systems square format standard or custom label.
Features:
- Ignition protected
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Fuses sold separately

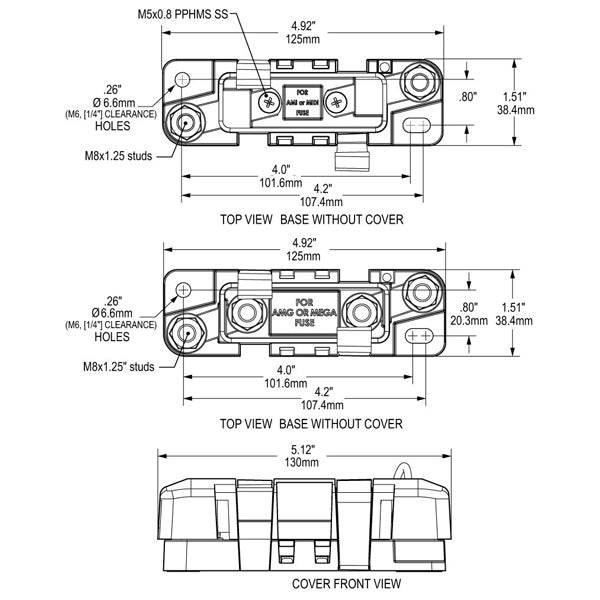

Specifications:
- Maximum Amperage: 200 A
- Maximum Voltage: 32V DC
- Stud Size: M8 x 1.25
- Fuse Screw: M5 x 0.8
- Recommended Screw Torque: 27 in-lb
- Recommended Stud Torque: 120 in-lb
- Ring Terminal Size: M8
- Weight: 0.15 lb.
