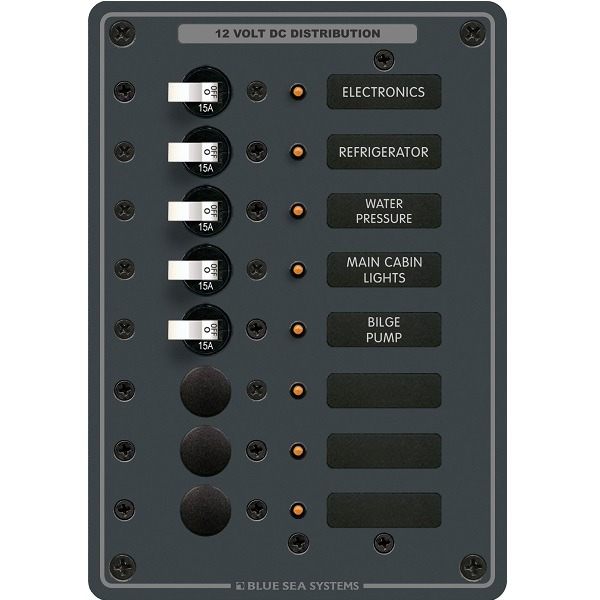

Blue Sea Systems DC 8 Position Circuit Panel
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
- Positions 8
- Installed Single Pole Circuit Breakers 5 (15A)
- Voltage 12 or 24 Volts DC
- Width in" (mm) 5.25 (133.35)
- Height in" (mm) 7.50 (190.50)
- Weight Lb (Kg) 1.95 (0.88)
- 100 Amp
- 5 Installed 15A Single Pole Circuit Breakers
Included:
5 #7210 A-Series White Toggle Circuit Breakers - Single Pole 15A
1 #8030 Basic DC Panel Label Set - 30 Labels
