Description

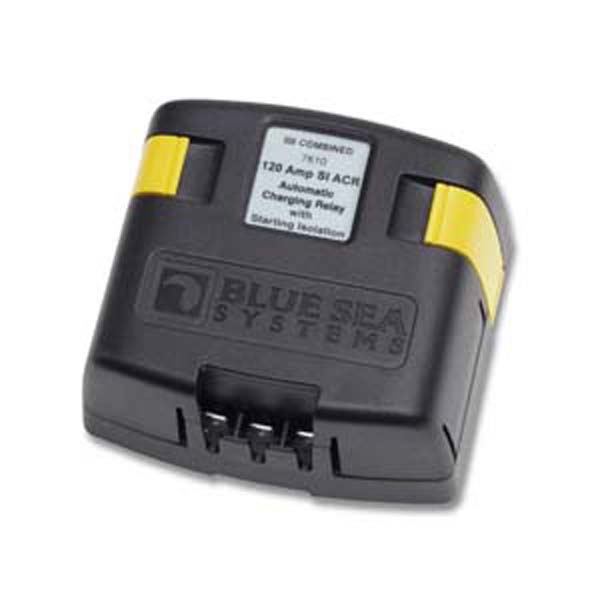

Blue Sea Systems SI Series Automatic Charging Relay
Features:
- Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking
- Designed for 12 or 24 volt systems
- 12/24 volt auto ranging voltage input
- Hermetically sealed contacts/vaporproof
- Waterproof rated IP67 - temporary immersion for 30 minutes
- Ignition protected - safe for installation aboard gasoline powered boats
- Remote LED output indicates relay state away from ACR
- Supports high-output alternators up to 120 Amperes
- Dual sensing
- Continuous Rating 120 Amps
- Intermittent Rating 210 Amps
- Inrush Rating 280 Amps
- Closed Current Draw 175mA@12 Volts
- 115mA@24 Volts
- Open Current Draw 15mA
- Maximum Cable Size 1/0 AWG
- Terminal Stud Size 3/8"-16 (accepts M10 ring terminal)
- Maximum Torque 140 in-lbs
- Relay Contact Position: Combine (30 sec.) 13.6 Volts@12 Volt and 27.2 Volts@24 Volt
- Relay Contact Position: Combine (2 min.) 13.0 Volts@12 Volt and 26.0 Volts@ 24 Volt
- Relay Contact Position: Open Low (10 sec.) 12.35 Volts@12 Volt and 24.7 Volts@ 24 Volt
- Relay Contact Position: Open Low (30 sec.) 12.75 Volts@ 12 Volt and 25.5 Volts@ 24 Volt
- Relay Contact Position - Open High 16.0 Volts@12 Volt and 30.0 Volts@24 Volt
