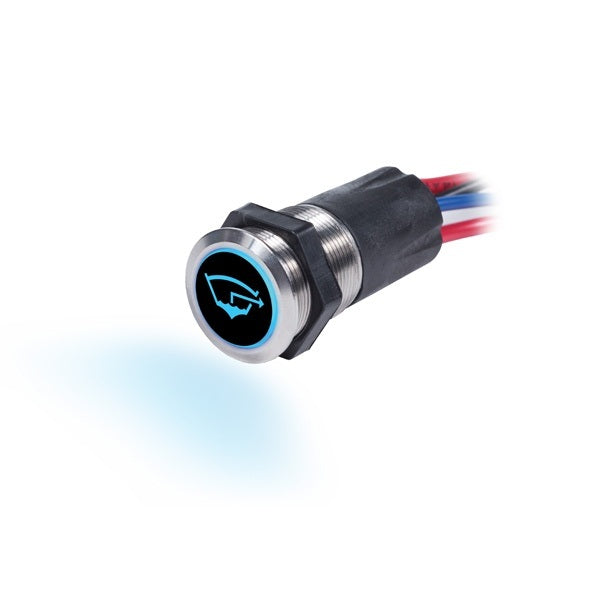

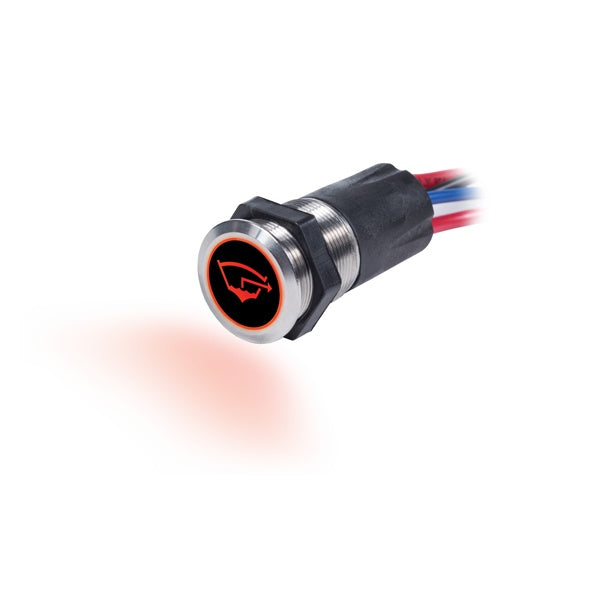

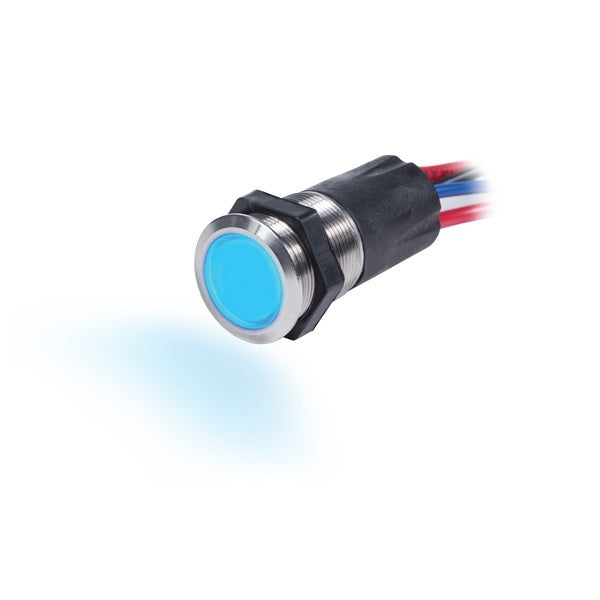

Blue Sea Momentary Push Button Backlit Switch - Off/On
This Blue Sea Momentary Push Button Backlit Switch - Off/On features five included ICON labels. The labels include: accessory, lights, anchor light, running light, and bilge pump. This momentary switch has a nominal voltage of 12V DC and a maximum voltage of 15V DC. The backlit button is blue when it is off and red when it is on.
Features:
- Momentary
- Five ICON Labels Included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
- Backlit Button Is Blue When OFF and Red When ON
- Additional 50 ICON Label Kit Sold Separately
Specifications:
- Action: OFF-(ON)
- Weight: 0.35 lb (0.16 kg)
- Nominal Voltage: 12V DC
- Maximum Voltage: 15V DC
- Temperature Range: -20°C to 55°C
- Amperage: 15A @ 12V DC
- Maximum LED Operating Current: 20mA
- Switching Cycles: 10,000
- Max Panel Thickness: 0.24in (6.1 mm)
- Mounting Hole: 7/8" (22mm)
- Termination: 3" - Bare Wire Pigtail
- Wire Size: Black & Blue Wires 18 AWG, Red & Orange Wires 16 AWG
