Description

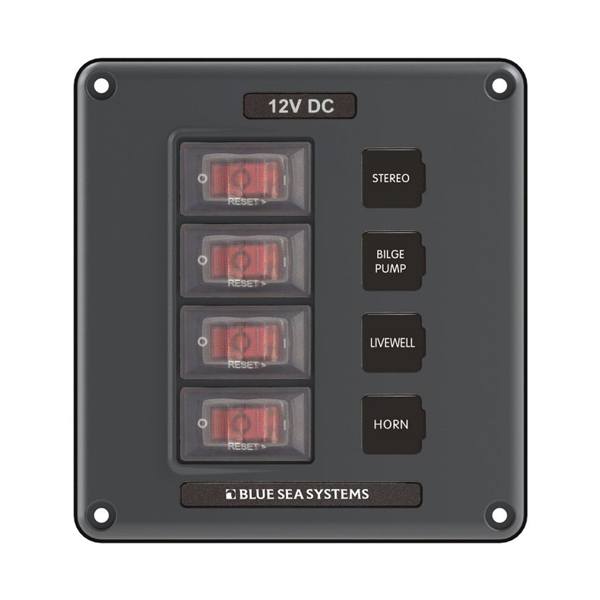

Blue Sea Switch Panel - 4-Position
This Blue Sea Switch Panel - 4-Position features illuminated 15A circuit breakers that provide switching, "ON" indication, and overcurrent protection. It's fast-on circuit breaker connectors make it quick to wire while the silicon breaker boots and gasket protect against water ingress. With a polycarbonate/ABS panel surface, this switch panel is UV-stabilized, flame retardant and corrosion resistant.
Features:
- Fast-On Circuit Breaker Connectors Make It Quick To Wire
- Polycarbonate/ABS Panel Surface Is UV-Stabilized, Flame Retardant, and Corrosion Resistant
- Illuminated 15A Circuit Breakers Provide Switching, "ON" Indication and Overcurrent Protection
- Two-Wire Connection For Powering All Panels Requires #10 Ring Terminals
- Terminals Screw To Bus Bars For Secure Connections
- Silicon Breaker Boots and Gasket Protects Against Water Ingress
- Industry-Standard Sizes and Mounting Allow These Panels To Be Easily Retrofitted In An Existing Application
- Includes Easy To Replace Set Of 15 Square Format Circuit Labels
- Low Profile Makes For Easy Installation In Tight Spaces
- Designed For Exposed Mounting Applications
Specifications:
- Height: 5.0 in (127 mm)
- Depth: 1.75 in (44.45 mm)
- Terminal Type: 1/4" Male Quick Connect
- Color: Gray
- Maximum Amperage: 45A
- Positions: 4
- Hardware: Stainless Steel #6 x 5/8" Mounting Screws
- Ring Terminal Size: M5 (#10)
- Nominal Voltage: 12V DC
