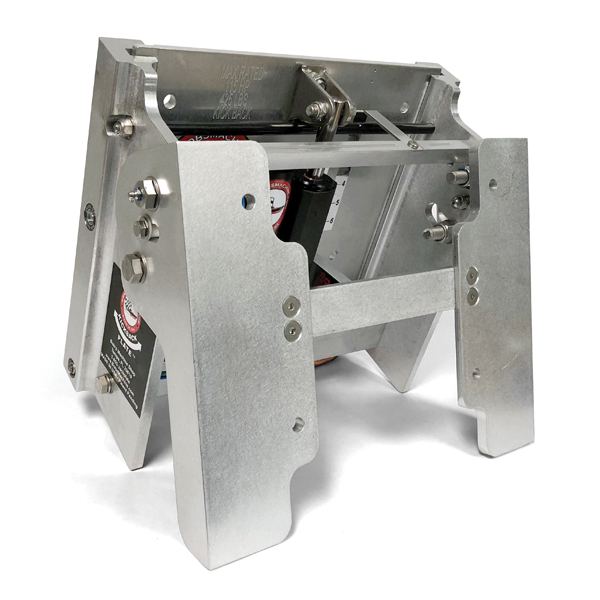

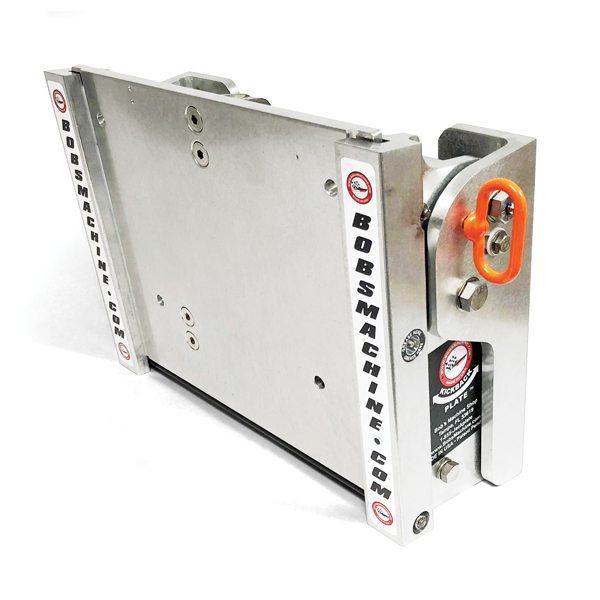

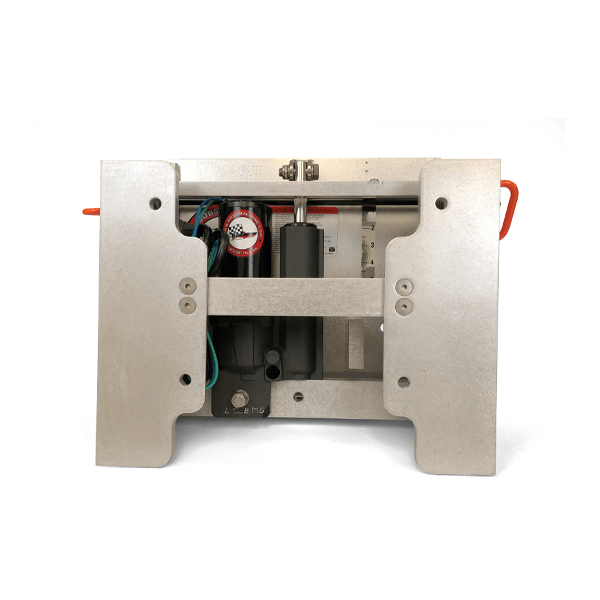

Bob's Machine 100-105100 Hydraulic Kick-Back Jac Plate - Action Series
Hydraulic Kick-Back Jac Plate allows you to jack up your motor and idle over obstructions, preventing costly damage to the lower unit. This hydraulic kick-back jack plate has 6" hydraulic stroke and 1.5" built-in structure lift, offering a total of 7.5" total lift! Delrin rollers and bearings provide a long life of smooth operation and pivoting without the need for chains or springs like other jack plates. Integrated locking pins prevent the plate from kicking out when in reverse or while trailering. This unit is rated for outboard motors up to a maximum of 115 HP. Do not encounter obstructions at speeds over 5 MPH and only in the forward direction. The Kick-Back Jac Plate is not designed or intended to encounter obstructions while the boat is being operated in the reverse direction.
Features:
- 6″ setback
- Rated for motors up to 150 HP with standard BIA bolt pattern
- Delrin rollers and bearings ensure smooth, maintenance-free operation
- Locking pins secure the plate during reverse or trailering
- Tension rods and greaseable pivot points for durability and performance
- 30° tilt angle for improved clearance and maneuverability
- No chains or springs – simplified, reliable design
- Includes motor tether attachment point for added safety
- Patent pending design
- 5-Year Action Pump Warranty
Specifications:
- Weight: 48 lbs.
- 6" Hydraulic lift
- 1.5" Structure lift
- 7.5" Max lift
- 30 Degree tilt up (kick up)
Can be used with optional clamp-on style kit P/N 100-105001
