Digital 1664PW Wideband Bullet Antenna is a rugged, high-performance solution designed to maximize signal strength for both mobile and fixed installations. Its 9dBi omni-directional gain delivers reliable coverage across wide bands, making it ideal for routers, modems, amplified signal boosters, and gateways.
-
Gain: 9dBi omni-directional gain for strong signal reach in all directions
-
Bandwidth: Wideband operation from 695-3000 MHz with VSWR <1.5:1 in 3G/4G/5G bands and <1.8:1 across the full range
-
Impedance: 50 ohms for compatibility with common cellular devices and booster systems
-
RF Connector: Weatherproof N-type female connector for dependable outdoor use
-
Construction: Foam-filled, UV-stable white polyurethane body with copper elements; 316 stainless steel base with deck mount
-
Exterior Finish: White high-gloss polyurethane coating that resists UV exposure and maintains a professional look
-
Dimensions: 8.875" L x 2.375" OD (225 x 60 mm); Weight 15 oz
-
Operating Temperature: 30°F to +175°F
-
Wind Rating: >160 KPH for reliable performance in exposed environments
-
Polarization: Vertical
-
Mounting: Raised stainless steel deck mount for versatile and secure installation
-

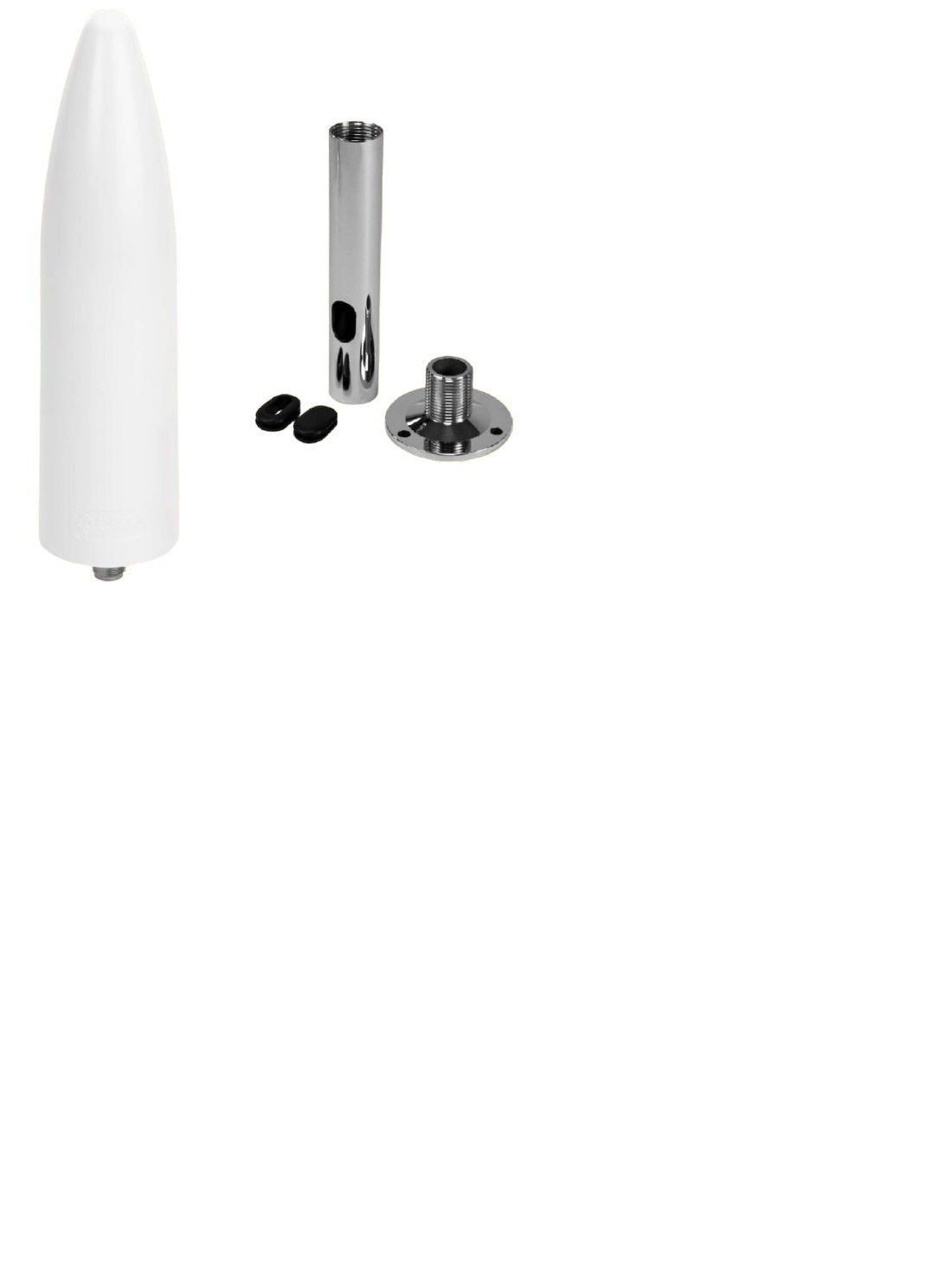

In the Box: 1664-PQW Antenna, SS Ferrule, SS Deck Mount (Cable not included)
-
Made In: Designed and manufactured in the USA by Digital Antenna
-
Recommended Use: Suitable for any device that connects to cellular networks or WiFi; omni-directional pattern, wide bandwidth, and rugged outdoor construction support reliable connectivity for critical communications, remote monitoring, and high-availability gateways
-
Max Input Power: 50 watts
-
Elements: Copper - Hand soldered
This antenna is designed to provide consistent connectivity in challenging outdoor environments, thanks to its durable foam-filled housing, UV-stable finish, and robust stainless-steel mounting. With a wide 695-3000 MHz range and 50-ohm impedance, it integrates smoothly with a broad range of equipment, including routers, modems, signal boosters, and gateways, helping you maintain reliable cellular and WiFi performance where it matters most.
| Radiation Pattern |
Omni-Directional |
| Bandwidth |
VSWR (in 3G, 4G, 5G bands): <1.5: 1 = 695-3000 MHZ, VSWR: <1.8: 1 = 695-3000 MHZ |
| Gain |
9dBi |
| Cable |
Not included |
| Impedance |
50 ohms |
| Max Input Power |
50 watts |
| Exterior Finish |
White polyurethane high gloss UV stable |
| Dimensions |
8.875" L x 2.375" OD (225 x 60 mm |
| Weight |
15 oz |
| RF Connector |
N type female |
| Installation |
Raised Stainless steel deck mount |
| Elements |
Copper - Hand soldered |
| Polarization |
Vertical |
| Wind Rating |
>160KPH |
| Operating Temp |
30 F to +175 F |
