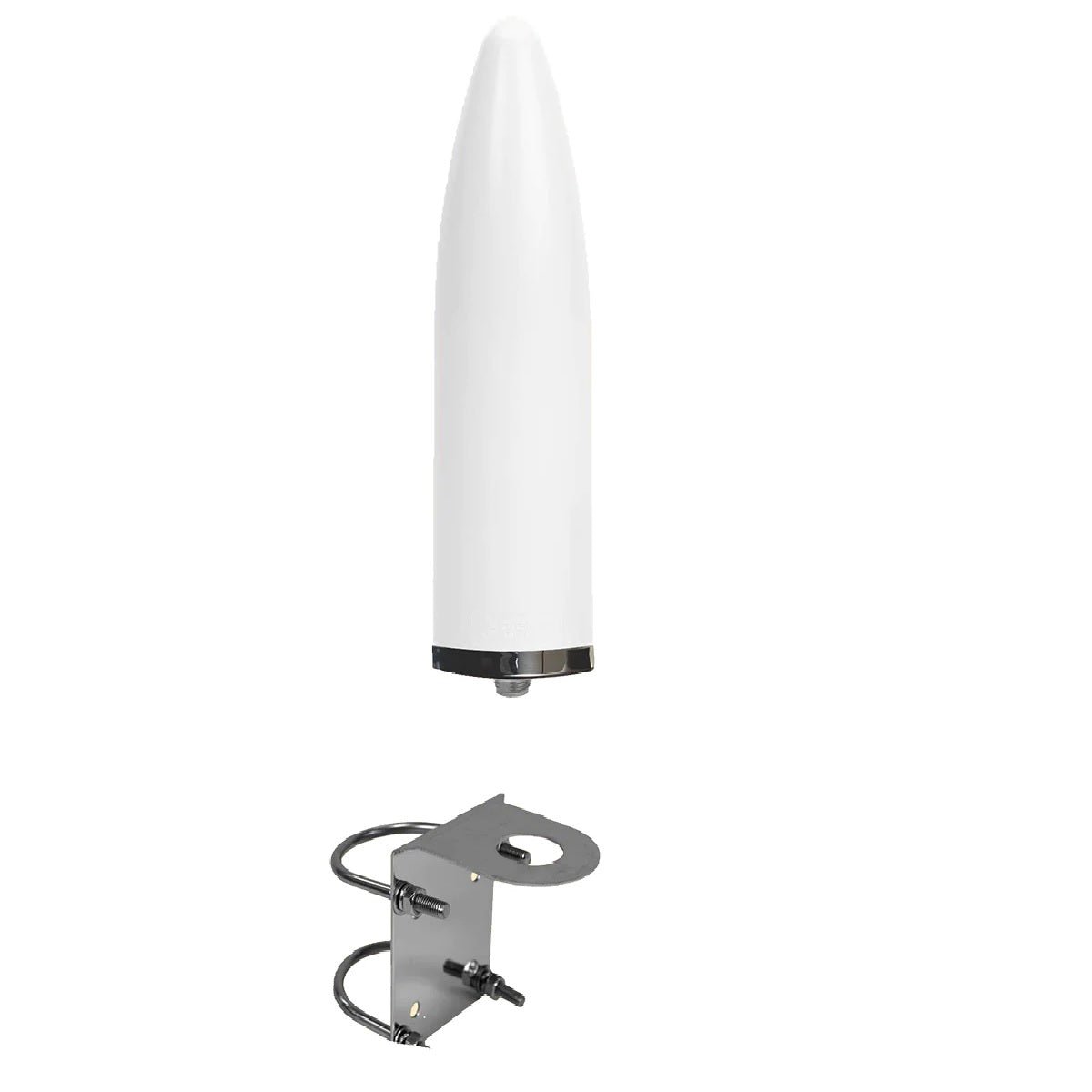

Engineered by Digital Antenna, the 1673PW Wideband Omni-Directional Bullet Antenna delivers robust cellular and WiFi coverage for mobile and fixed installations. With a 9 dBi gain and a rugged stainless steel base, this L-Bracket-ready unit is built to withstand harsh environments while boosting signal strength across multiple bands.
Key Features
-
Wideband coverage: 695-3000 MHz for 4G/5G/LTE and WiFi in a single antenna
-
High gain: 9 dBi omni-directional design to maximize range
-
Rugged construction: UV-stable white polyurethane finish, foam-filled to resist extreme vibrations
-
Durable mounting: 316 stainless steel base with included L-Bracket for flexible installation
-
Weatherproof and reliable: Weatherproof N female connector; capable of withstanding wind >160 KPH
-
Easy integration: Designed for use with routers, modems, amplified signal boosters & gateways; 50 ohm impedance; max input power 50 watts
-
Made in USA: Designed and manufactured in USA by Digital Antenna
-
Reliable specs: VSWR < 1.5:1 (695-3000 MHz); Cable not included; Operating temperature 30 F to +175 F
Physical Specifications
-
Model: 1673-PW
-
Gain: 9 dBi
-
Band: 695-3000 MHz
-
Connection: N type female
-
Impedance: 50 ohms
-
Max input power: 50 watts
-
Dimensions: 8.875" L x 2.375" OD (225 x 60 mm)
-
Weight: 15 oz
-
Polarization: Vertical
-
Wind rating: >160 KPH
-
Operating Temp: 30 F to +175 F
-
In the box: 1673-PW Antenna, L-Bracket mount
Designed for use with any device that connects to cellular networks or WiFiβrouters, modems, amplified signal boosters, and gatewaysβthe 1673PW delivers maximum signal range with a purpose-built, durable design. Invest in reliable connectivity that stands up to demanding environments, backed by a 5 year warranty.
| Radiation Pattern |
Omni-Directional |
| Bandwidth |
VSWR (in 3G, 4G, 5G bands): <1.5: 1 = 695-3000 MHZ, VSWR: <1.8: 1 = 695-3000 MHZ |
| Gain |
9dBi |
| Cable |
Not included |
| Impedance |
50 ohms |
| Max Input Power |
50 watts |
| Exterior Finish |
White polyurethane high gloss UV stable |
| Dimensions |
8.875" L x 2.375" OD (225 x 60 mm |
| Weight |
15 oz |
| RF Connector |
N type female |
| Installation |
Raised Stainless steel deck mount |
| Elements |
Copper - Hand soldered |
| Polarization |
Vertical |
| Wind Rating |
>160KPH |
| Operating Temp |
30 F to +175 F |
