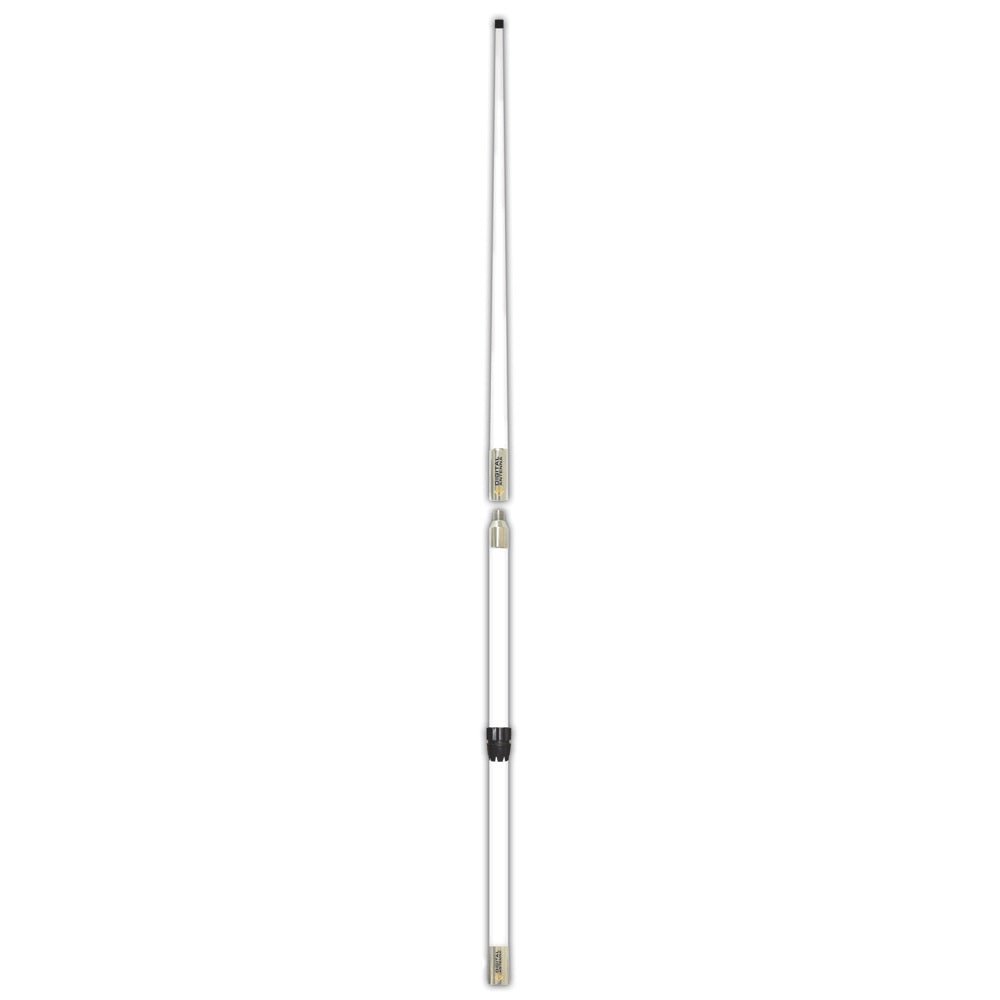

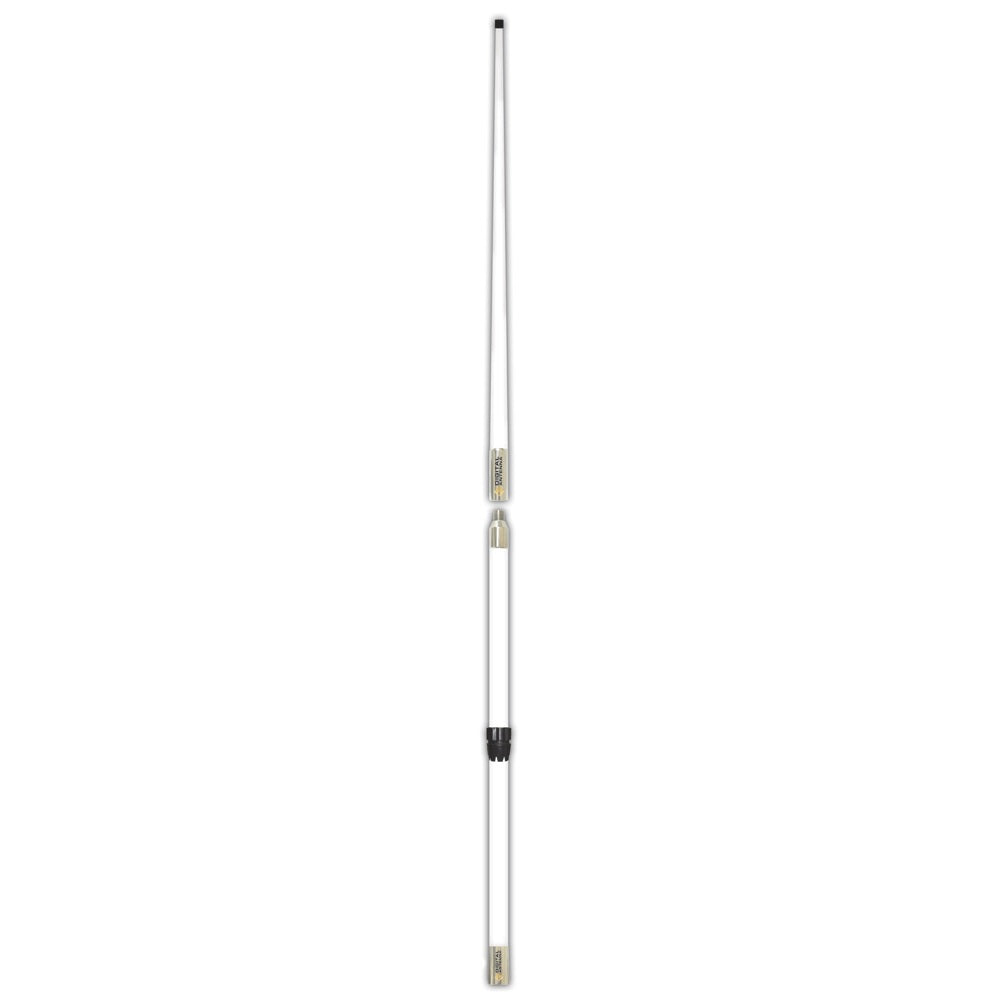

Introducing the Digital 532-VW-RS 16ft VHF Antenna — a professional-grade marine radio solution engineered for peak performance and reliability. With 10 dB gain and a pre-installed RUPP locking collar, this antenna is ready to deliver long-range, clear communications in challenging conditions.
Key Benefits
-
10 dB gain for extended reach and clearer, more reliable VHF communications.
-
Pre-installed patented RUPP locking collar secures the antenna and unlocks easily for lowering.
-
Powerful brass radiators and soldered connections for maximum durability and signal integrity.
-
Power directing ferrite choke bead reduces interference and enhances performance.
-
High gloss urethane finish and a 316 stainless steel ferrule resist the harsh marine environment.
-
Exclusive easy connect mini-UHF and PL259 adapter eliminates soldering when attaching the radio cable.
-
20’ of low-loss RG-8X marine cable with tinned braid, foil shield, and UV stability.
-
Made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability.
-
Length 189 1/2" and 16 ft overall; designed for sport fishing boats, large yachts, and commercial vessels.
-
Standard Mount 1"—14 threaded base (RUPP support arm required; sold separately).
-
Gold factory-attached mini-UHF female connector with a mini-UHF male to UHF male (PL259) adapter included.
Specifications
-
Model: 532-VW-RS
-
Length: 189 1/2"
-
Cable: 20’ RG-8X marine cable (low-loss, tinned braid, foil shielded, UV stable)
-
Connector: Gold factory-attached mini-UHF female with mini-UHF male to UHF male (PL259) adapter
-
Base: 1"—14 threaded base (RUPP support arm required)
-
Gain: 10 dB
-
Finish: High gloss urethane
-
Material: Heavy-duty brass radiators, 316 stainless steel ferrule
-
Collar: Pre-installed RUPP locking collar
-
Manufacturing: Made in the USA; assembled, tested and tuned by hand
-
Mounting: RUPP mounting arms required; sold separately through a RUPP dealer
-
Shippable: UPS shippable
Built to withstand the harshest conditions while maintaining superior performance, this 16’ VHF antenna is ideal for high-quality sport fishing boats, large yachts, and commercial vessels. The pre-installed RUPP collar and easy-connect cable system simplify installation, while the rugged construction ensures long-lasting reliability at sea.
| Mount |
Standard 1"—14 threaded base (RUPP support arm required) |
| Connector |
Gold factory-attached mini-UHF female with mini-UHF male to UHF male (PL259) adapter |
| Cable |
Includes 20’ of their low-loss, tinned braid, foil shielded, UV stable RG-8X marine cable |
| Length |
189 1/2" |
