Take marine navigation to the next level with the Digital Yacht GPS160 TriNav GPS USB Bundle. A high-performance, multi-constellation GNSS sensor that merges GPS, GLONASS and Galileo for exceptional positioning accuracy and reliability on the water.

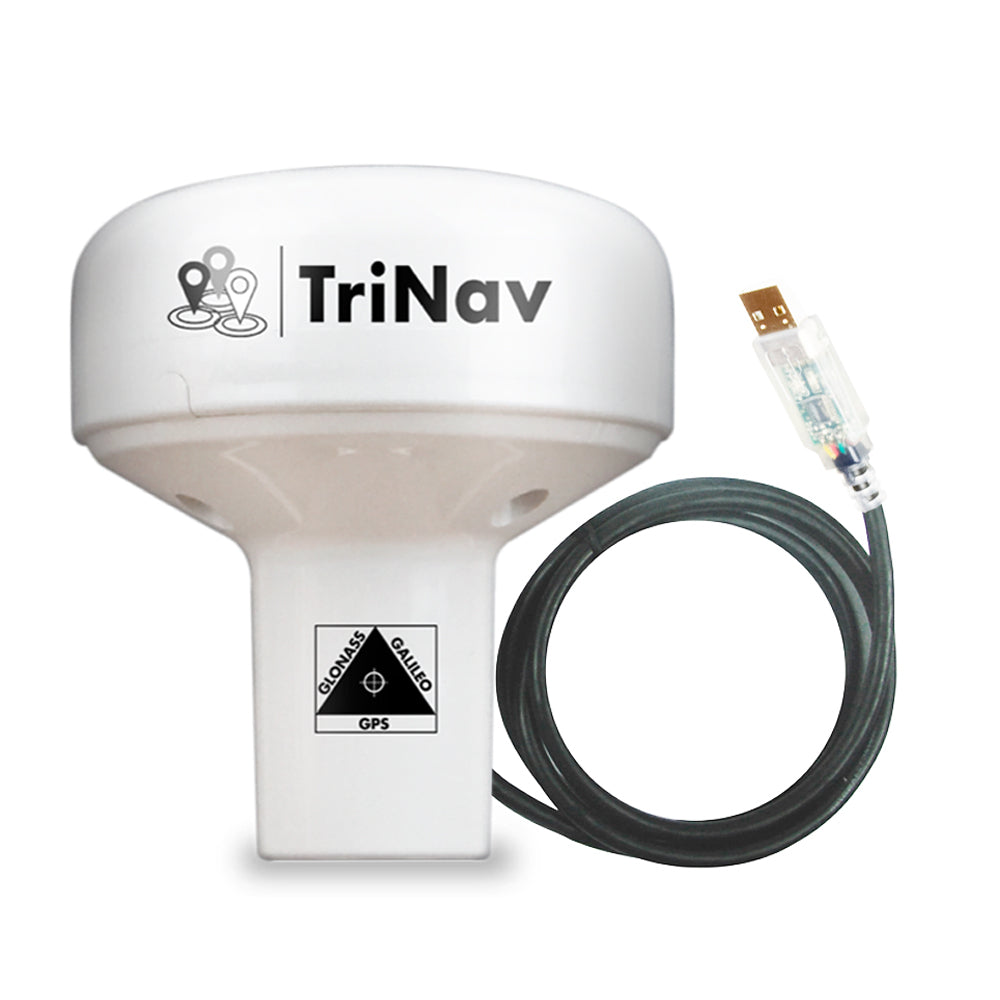

GPS160 TriNav USB Bundle — GPS, GLONASS & Galileo
This advanced receiver delivers typical sub-1m accuracy by leveraging TriNav technology that fuses data from all available satellites. It offers flexible operation modes, robust anti-spoofing protection, and easy connectivity to modern navigation software.
- 72-channel GPS, GLONASS and Galileo GNSS receiver for reliable positioning
- TriNav technology combines satellite data for optimum accuracy and resilience
- Configurable as GPS-only, GLONASS-only, or Galileo-only to suit your system
- Up to 18 Hz update rate for smooth plotter tracks
- Ultra-low power consumption (<20 mA) at 12 V DC
- Self-powered from USB; ships with a 5 m USB cable
- Creates a virtual COM port on the host PC for seamless data feed to navigation software
- Multiple NMEA output formats with user-configurable datum information via internal DIP switches (4800, 38400, 115200 baud)
- Advanced anti-spoofing algorithm for robust positioning and interference rejection
- ECDIS-ready with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)
- Puck-style installation or fits 1" x 14TPI threaded mounting for flexible mounting options
- Longer cable or MOB feature available by using the GPS160 (standard NMEA version) with USB-NMEA adaptor
- Galileo provides a third reliable positioning source alongside GPS and GLONASS
The GPS160 USB variant ships with a 5 m USB cable and is self-powered from the USB source (compatible with PC, MAC or Linux). When installed, a virtual COM port is created on the host, enabling simple data delivery to navigation programs. For longer cable runs or MOB functionality, the standard GPS160 NMEA version with a USB-NMEA adaptor is recommended.
Designed for professional marine systems, TriNav technology also improves resilience against spoofing and local interference, delivering dependable positioning even in challenging environments. With flexible output formats and straightforward internal DIP-switch configuration, setup is quick and easy on board.
