The Digital Yacht iSeaSense Speed/Depth/Temp Pack is a complete marine instrumentation system that delivers fast, accurate data to any browser-enabled device. With a wireless server, you can view real-time depth, speed, temperature, and boat attitude directly in a browser on your smartphone, tablet, or iPad—no app required.
-
Browser-based display: View graphical and numeric pages directly in a browser on any smartphone, tablet, or iPad—no app required.
-
5 Hz speed updates: Speed data updates up to 5 times per second for responsive performance.
-
1 Hz depth updates: Depth data updates once per second for stable readings.
-
10 Hz heel/trim updates: Real-time attitude information with heel and trim updates up to 10 times per second.
-
Broad speed range: Measures from 0.3 to 45 knots with highly accurate 5 Hz speed updates.
-
235 kHz depth operation: Depth signal operates at 235 kHz to minimize interference with 50/200 kHz fish finders and sounders.
-
Max depth 100 m: Capable of depths up to 100 meters.
-
Transducer included: Advanced depth, speed, and water temperature transducer with pitch and heel sensor for hull attitude.
-
Through-hull installation: Standard 2\" thru-hull size ensures broad compatibility and straightforward installation.
-
Expansion-ready: Includes an extra NMEA 2000 T piece for easy system expansion to add more sensors or displays.
-
NMEA 2000 + wireless connectivity: Data can be shared across the NMEA 2000 network to other displays and devices; optional compass and GPS data available on the NMEA 2000 network.
-
No app required: The iSeaSense wireless server generates powerful graphical and numeric display pages viewable in a browser on any device.
-

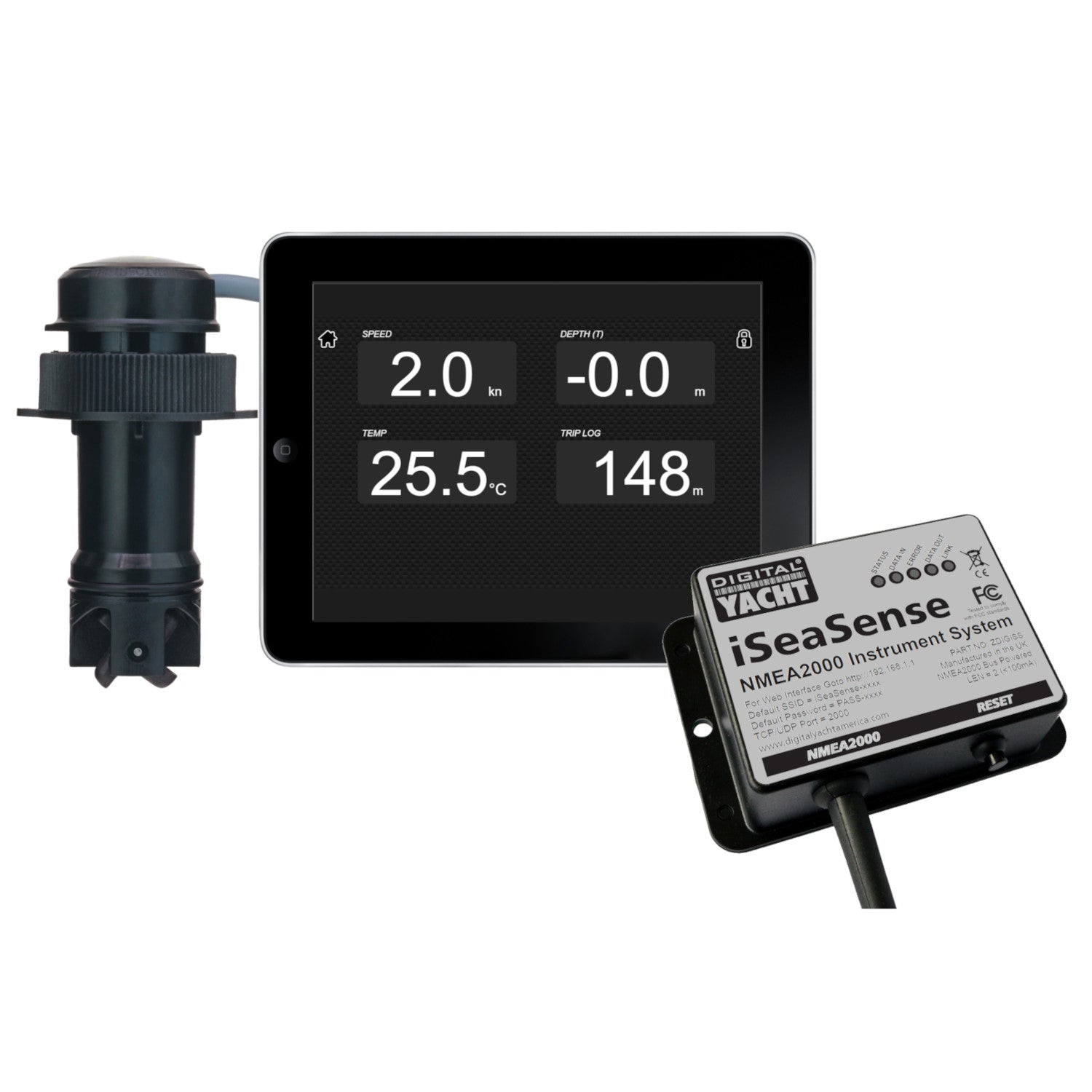

In the Box: iSeaSense wireless server; NMEA 2000 cabling; Advanced boat depth, speed and temperature transducer with pitch and heel sensor.
This system delivers depth, speed, temperature, and boat attitude data in real time, accessible via any browser for quick checks and informed decisions on the water. With straightforward installation, NMEA 2000 network integration, and expansion options, you can tailor the setup to your sailing needs and grow as your requirements evolve.
