Description

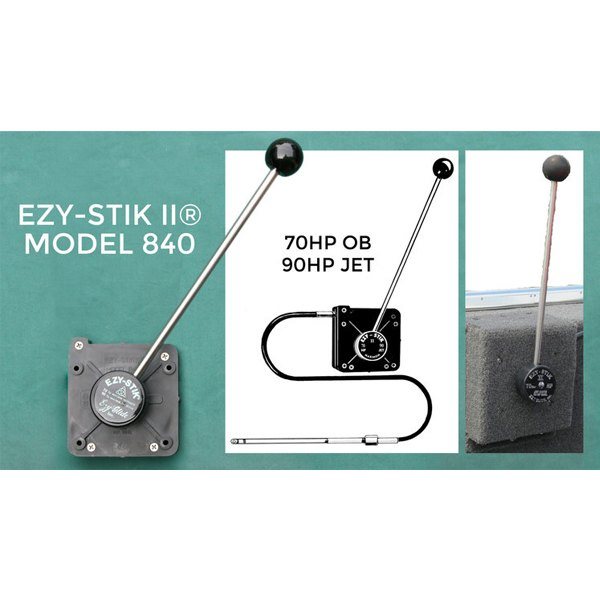

EZY-Glide EZY-Stik II Model 840 Mechanical Steering Kit
The EZY-Glide EZY-Stick is designed by EZY-Glide who has been in the marine industry since 1981. They are an industry leader in mechanical steering kits. Mechanical technology uses push pull cables to connect the steering wheel with the outboard motor and are generally safest for smaller boats with outboard engines not exceeding 70 HP and jet drives not exceeding 90 HP.
The EZY-Stick II Model 840 Mechanical Steering Kit is a system designed to be positioned in the front of the boat. This allows for better visibility and convenience for the boat operator. Made with a one piece stainless steel drive spool it is encased in a composite high impact housing which provides a single lever steering platform for easier control for today’s fisherman. The interlocking feature makes sure a lock between the shaft and the lever.
The mechanical steering kit includes everything you need for installation with the helm, lever, mounting hardware, cable, and dress cover. It also has a 1 year manufacturer warranty.
This system is rated for:
- Outboard engines not to exceed 70 HP
- Jet drives not to exceed 90 HP
Specifications:
- Total lever movement: 58 inches/206 degrees
- Steering ratio: 6.4/1
- Housing dimensions: Approx. 6" x 6"
- Lever length: 6"
How to Measure a New System or Replacement Cable Length from EZY-Glide
- Measure from the center of the helm position to the center of the engine.
- Add 8" to this measurement.
- Round up your system length measurement to the nearest 1/2 foot. (For example, a 12'2" measurement would order a 12-1/2' cable)
Click to Download EZY-Stik II Model 840 Installation Instructions
