Ezy-Glide Hydra-Stik 2500 Hydraulic Stick Steering System with 2.8 turns from lock-to-lock

EZY-Glide Hydra-Stik 2500 Hydraulic Stick Steering System

EZY-Glide's Hydra-Stick Hydraulic Steering System provides the convenience of stick steering but delivers on the power and ease of hydraulics. Their hydraulic system is designed similarly to the mechanical steering sticks and has many of the same benefits. However, it has the added advantage of smoother steering with no feedback. There are fewer turns from lock to lock at only 2.8. This means the operator is only turning 1.4 turns to move from center position to a right or left turn.

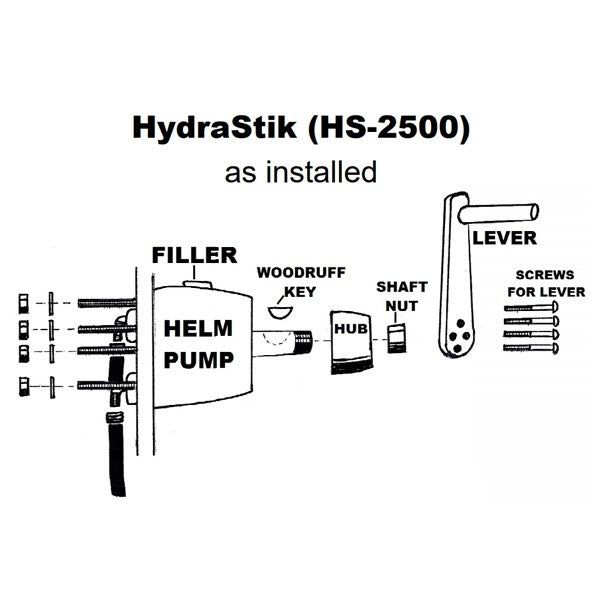

Installation for the Hydra-Stick Hydraulic steering system can be done on either the port or starboard side of the vessel. Console mounting is also an option. There is a hydraulic helm pump, hydraulic hoses with fittings, universal hydraulic cylinder, bezel, lever,  hydraulic fluid and installation manual included in your kit.  Recommended for use with outboards up to 90 HP and jet drives 110 HP.

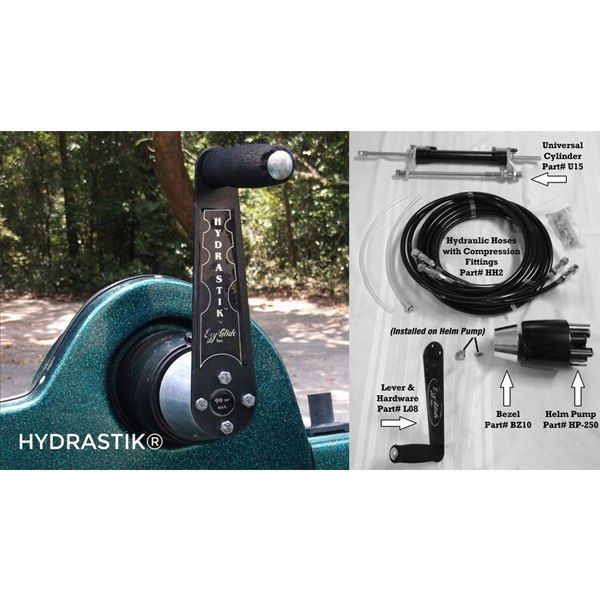

Hydra-Stik 2500 Steering System Includes:

• Hydraulic helm pump
• 20' Hydraulic hose with fittings (set of 2)
• Universal hydraulic cylinder
• Installation Package (includes woodruff key and shaft nut)
• Bezel
• Hydra-Stik lever
• Hydra-Glide Hydraulic Fluid (1 liter)

Click to Download EZY-Glide Hydra-Stik 2500 Hydraulic Stick Steering System Installation Instructions
