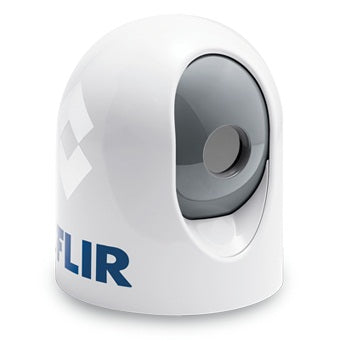

FLIR MD324 Thermal Imager 320X240 Resolution 30Hz

Meet the FLIR MD324 Thermal Imager, a compact fixed-mount marine thermal camera designed for navigators who need reliable night-time visibility. It delivers 320 x 240 resolution at 30 Hz to reveal vessels, obstacles, and people in darkness or against glare, enhancing safety and situational awareness on the water.

• Resolution & Frame Rate: 320 x 240 thermal sensor with 30 Hz refresh for real-time heat imagery and faster decision-making.
• Fixed-Mount Marine Design: All-weather enclosure with IPx6 protection, salt mist resistance, and operation up to 100 knot winds for rugged reliability.
• Video Output & Connectivity: Analog video output for seamless helm monitor integration; includes 25 ft analog video cable, 25 ft shielded Ethernet cable, weatherproof Ethernet coupler, and PoE injector.
• Automatic Window Defrost: Standard at power-up to maintain clear imagery in cool or humid conditions from startup.
• Power & Efficiency: Low power consumption—4.8 W nominal and 12.5 W max—helping fit within vessel power budgets.
• Durability & Compliance: EMI IEC 60945, standard lightning protection, shock 15 g vertical and 9 g horizontal, vibration MIL-STD-810E, built for marine environments.
• Operating & Storage Ranges: -25°C to +55°C operating temperature; -40°C to +85°C storage temperature; designed for challenging marine conditions.
• Dimensions: 6" diameter, 7" height compact form factor for easy installation on radar arches, bridges, or helm panels.
• What’s in the Box: Single payload camera with 320 x 240 pixel microbolometer; 25 ft analog video cable; 25 ft shielded Ethernet cable; weatherproof Ethernet coupler; PoE injector; mounting hardware; operator’s manual and installation guide on CD.
• Warranty: 2-year warranty on the MD324 system.

The MD324 enhances safety and navigation by enabling obstacle detection, collision avoidance, and the ability to locate people in the water at night with reliable thermal imaging. Its compact, rugged marine design integrates smoothly with existing helm displays, delivering dependable night-time awareness and faster response to on-the-water situations. With included hardware and cables, setup is straightforward, so you can install and start benefiting from thermal visibility quickly.
