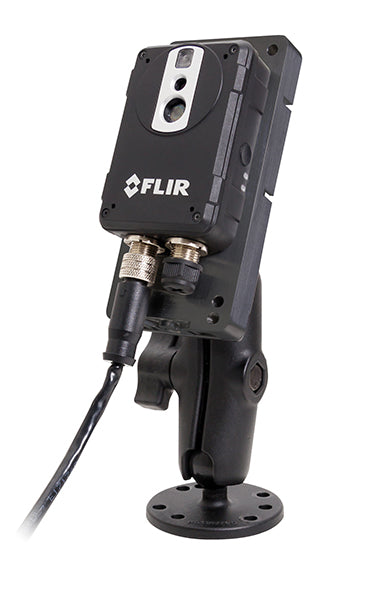

Take command of engine and onboard machinery awareness with the FLIR MTMS Thermal Camera. This compact AX8-based thermal monitoring solution delivers fast, actionable visibility for vessels, pairing precise temperature data with seamless Raymarine integration.
The MTMS enhances vessel situational awareness by turning complex thermal data into actionable warnings. Its MSX fusion, zone-based alarms, and networked recording help you track temperature trends, maintain critical components, and prevent costly repairs. With Raymarine integration, you gain unified monitoring across the ship, enabling proactive maintenance from multiple displays and locations on board.
| IMAGING & OPTICAL DATA |
| IR Resolution |
80x60 pixels |
| Thermal Sensitivity / NETD |
<0.10°C @ +30°C (+86°F) / 100mK |
| Field of View (FOV) |
48° x 37° |
| Focus |
Fixed |
| DETECTOR DATA |
| Detector Type |
Focal Plane Array (FPA) Uncooled Microbolometer |
| Spectral Range |
7.3-13µm |
| VISUAL CAMERA |
| Built-in Digtal Camera |
640x480 |
| Digital Camera FOV |
Adapts to the IR lens |
| Sensitivity |
Minimum 10 Lux without illuminator |
| MEASUREMENT |
| Object Temperature Range |
-10°C to +150°C (14°F to 302°F) |
| Accuracy |
+/-2°C (+/-3.6°F) or +/-2% of reading (+10 to +100C@+10 to +35amb) |
| MEASUREMENT ANALYSIS |
| Spotmeter |
6 |
| Area |
6 Boxes with max. / min. / average |
| Automatic Hot / Cold Detection |
Max / Min temperature value and position shown within box |
| Measurement Presets |
Yes |
| Atmospheric Transmission Correction |
Automatic, based on inputs for distance, atmospheric temperature and relative humidity |
| Optics Transmission Correction |
Automatic, based on signals from internal sensors |
| Emissivity Corrections |
Variable from 0.01 to 1.0 |
| Reflected Apparent Temperature Correction |
Automatic, based on input of reflected temperature |
| External Optics / Windows Correction |
Automatic, based on input of optics / window transmission and temperature |
| Measurement Corrections |
Global Object Parameters |
| ALARM |
| Alarm Functions |
Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set |
| Alarm Output |
Digital Out, store image, file sending (ftp), email (smtp), notification |
| SET-UP |
| Color Palettes |
Color palettes (BW, BW inv, Iron, Rain) |
| Set-up Commands |
Data / Time, Temperature °C/°F |
| Web Interface |
Yes |
| STORAGE OF IMAGES |
| Storage Media |
Built-in memory for internal storage |
| Image Storage Mode |
IR, Visual, MSX |
| File Formats |
Jpeg + FFF |
| ETHERNET |
| Ethernet |
Control, result and image |
| Ethernet Type |
100 Mbps |
| Ethernet Standard |
IEEE 802.3 |
| Ethernet Connector Type |
M12 8-pin X-coded |
| Ethernet Video Streaming |
Yes |
| Ethernet Power |
Power over Ehternet, PoE IEEE 802.3as class 0 |
| Ethernet Protocols |
Ehternet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, SFTP, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour) |
| MARINE ELECTRONICS INTERFACE |
| Multifunction Displays |
Network compatible with Raymarine LightHouse II multifunction displays |
| IMAGE STREAMING |
| Image Streaming Formats |
Motion JPEG, MPEG, H.264 |
| Image Streaming Resolution |
640x480 |
| Image Modes |
Thermal, Visual, MSX (IR-image with enhanced detail presentation) |
| Automatic Image Adjustment |
Continuous |
| POWER SYSTEM (POE Injector) |
| External Power Operations |
12/24VDC, 2W continuously / 3.1W absolute max |
| External Power Connector |
Screw Connection (12V/0V/Chassis) |
| Voltage Allowed Range |
9-36VDC |
| ENVIRONMENT DATA |
| Operating Temperature Range |
0°C to +50°C (32°F to +122°F) |
| Storage Temperature Range |
—40°C to +70°C (—40°F to +158°F) IEC 68-2-1 and IEC 68-2-2 |
| Humidity (Operating and Storage) |
IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)/ 2 cycles |
| Encapsulation |
IP67 (IEC 60529) |
