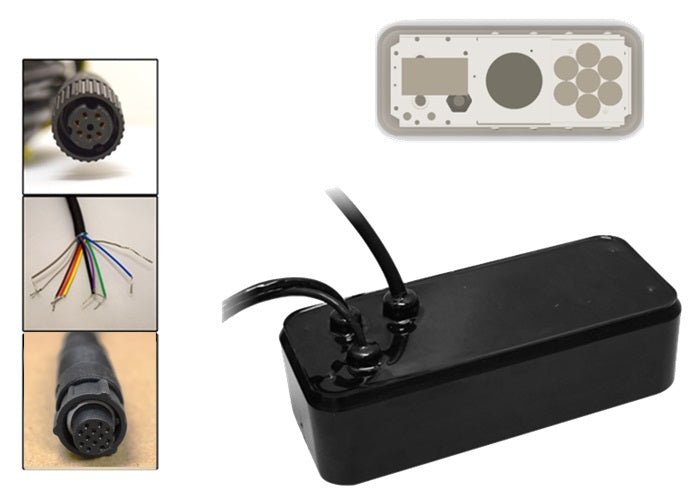

The Furuno 165T/275LHW-12P Pocket Mount Combo transducer integrates CHIRP and 3D sonar in a compact pocket-mount design, ideal for Furuno DFF3D installations that require versatile performance without crowding your vessel. Built for DFF3D use with 12-pin connectivity, it offers flexible integration with Furuno displays.
-
Compact pocket-mount design: space-saving installation on vessels with limited mounting options.
-
CHIRP and 3D sonar in one package: delivers CHIRP and 3D capabilities in a single pocket-mount transducer for streamlined setup.
-
Model and compatibility: pocket-mount transducer designed for Furuno DFF3D with a 12-pin connector.
-
Operating frequencies: DFF3D operating frequency 165 kHz; Low-CHIRP 42–65 kHz with beamwidth 25° to 16°; High-CHIRP 150–250 kHz with beamwidth 25°.
-
Physical housing: new size housing (12" L x 5" W x 3.5" H) housing DFF3D elements along with CHIRP elements.
-
Connectors and cables: 12-Pin connector for DFF3D; pigtail cable for DFF1-UHD; 7-pin and 12-pin connector options for DFF3D; includes 12 m cables.
-
Sensors: built-in motion sensor and built-in temperature sensor.
-
Installation compatibility: recommended for a DFF1-UHD and DFF3D installation.
-
Performance characteristics: delivers versatile CHIRP performance across low and high-frequency bands to enhance target separation, bottom tracking, and overall sonar clarity on compatible Furuno displays.
The built-in motion and temperature sensors support stable data output in varying conditions, while the compact pocket-mount design provides flexible, space-saving installation on vessels with limited mounting options. With included cables and connectors designed for DFF1-UHD and DFF3D, setup is straightforward, helping you upgrade your Furuno sonar with confidence.
