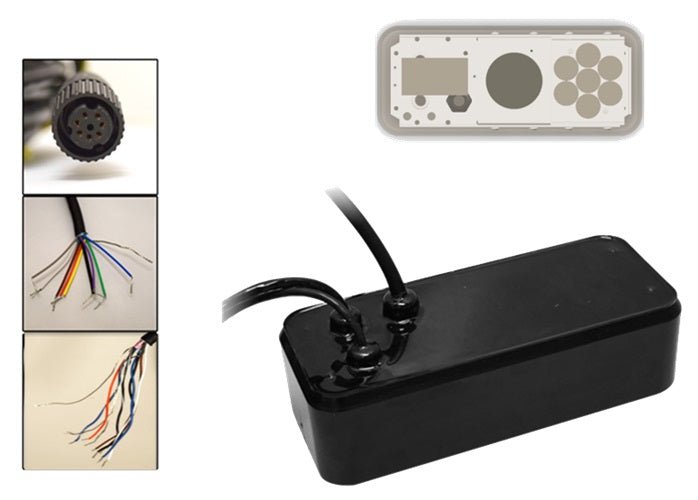

The Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer is a compact, high-performance sonar transducer designed for Furuno DFF3D systems. It supports DFF1-UHD and DFF3D installations, delivering flexible CHIRP imaging in a space-saving pocket-mount form factor.
-
Compatibility & Pocket-Mount Design: Recommended for DFF1-UHD and DFF3D setups, with a pocket-mount design for flexible mounting on a range of vessels.
-
Frequencies & Beamwidth: Low-CHIRP from 42 kHz to 65 kHz with beamwidths from 25° down to 16°; High-CHIRP from 150 kHz to 250 kHz with a 25° beamwidth.
-
Operating Frequency: 165 kHz.
-
Cable & Connectors: Includes 12-meter cables; pigtail cables for DFF1-UHD and a 7-pin connector for the DFF3D.
-
Housing & Pocket-Mount Design: New size housing dimensions are 12 L x 5 W x 3.5 H and houses both DFF3D elements and CHIRP elements; designed for space-limited installations.
-
Sensors: Built-in motion sensor and built-in temperature sensor.
-
All-in-One CHIRP Solution: Provides flexible CHIRP imaging across two frequency bands in a single unit, reducing installation complexity and equipment management.
The dual-band CHIRP imaging lets you tailor depth and target detail for varied water conditions, while the pocket-mount design and included cables simplify routing and integration with Furuno DFF1-UHD and DFF3D systems. Built-in sensors support diagnostics and more reliable readings, and the compact housing fits vessels with limited deck space without compromising performance.
