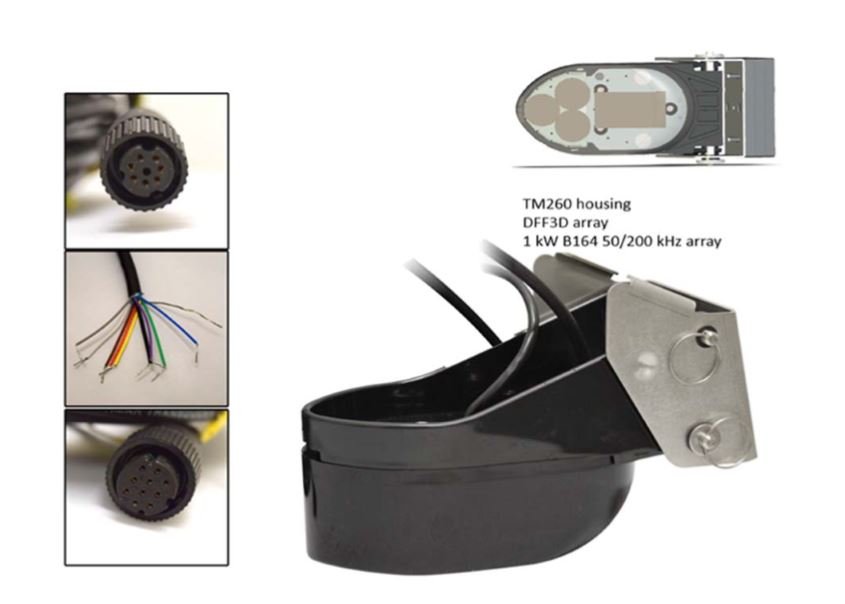

The Furuno 165T-50/200-TM260 Transom Mount Transducer is a high-powered, dual-frequency sonar solution designed for DFF3D installations. It’s ideal for TZtouch2 or TZtouch/DFF1 systems, delivering flexible 165 kHz and 50/200 kHz operation from a rugged transom-mount package.
-
Model: 165T-50/200-TM260 Transducer
-
Transducer type: Transom-mounted transducer
-
Power rating: 1 kW
-
Operating frequencies: 165 kHz and 50/200 kHz
-
Beam angles: 20° at 165 kHz and 6° at 50/200 kHz (beam performance matches the Airmar B164)
-
Cable and connectors: 12 m cable with a 10-pin connector for the sounder; 7-pin connector and a pigtail cable for the DFF3D
-
Compatibility: Recommended for TZtouch2 or TZtouch/DFF1 and DFF3D installations
-
Sensors: Built-in motion sensor and temperature sensor
With 1 kW of transmit power and dual-frequency capability, this transom-mount delivers clear sonar returns across a range of depths, allowing you to adapt to shallow harbors or deep-water structures. The 20° and 6° beam angles provide broad coverage and high-detail returns, while the built-in motion and temperature sensors help optimize performance in varying conditions. The long 12 m cable with dedicated connectors streamlines installation on TZtouch2, TZtouch/DFF1, and DFF3D systems, ensuring reliable integration.
