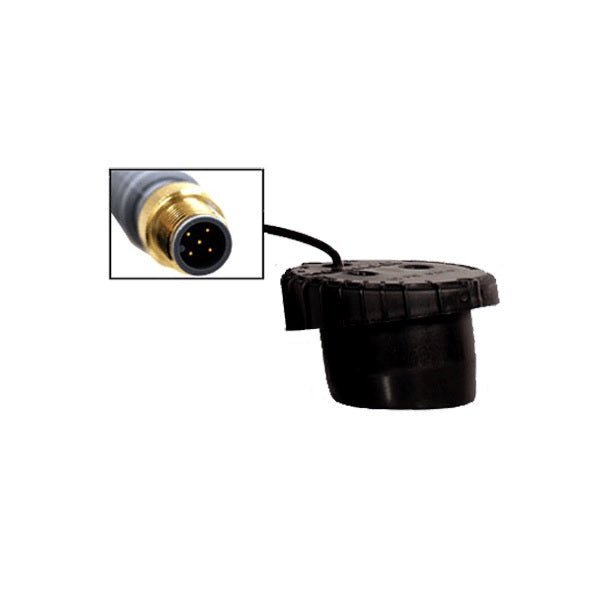

The Furuno 235-IHF In-Hull NMEA 2000 Smart Transducer is a hull-mounted sonar solution designed for boats that rely on NMEA 2000 networks. It delivers reliable 235 kHz depth data and sonar information directly to your display, making it a smart choice for serious anglers and offshore skippers.
-
Frequency: 235 kHz acoustic profile for hull-mounted depth sensing
-
Interface / Connectivity: NMEA 2000-compatible with a Load Equivalency Number (LEN) of 4
-
Installation: In-hull installation with an acoustic window made from layered plastic urethane
-
Depth Range: 0.5 m minimum to 150 m maximum depth range
-
Update Rate: Data updates at 1 per second for timely readings
-
Electrical Requirements: Requires 9–16 V DC power; draws about 200 mA
-
Cable Length: 6 m long cable to connect to power and network
-
Weight: 0.9 kg (2 lb)
-
Pressure Rating: Rated for depths up to 3 m pressure
-
Pulse Rate: 20,000 pulses per nautical mile (p/nm)
-
Certifications: CE compliant; adheres to IERC945
The transducer provides reliable depth data to your onboard displays through the NMEA 2000 network, helping you make informed navigation and fishing decisions in real time. The 235 kHz frequency offers balanced performance across a range of hull designs, and the in-hull installation minimizes external snag risks while maintaining clear signal. Designed for marine use, the unit draws modest power (9–16 V DC, about 200 mA) and uses 6 m of cable to fit a variety of boat layouts. With a LEN of 4 and CE compliance (IERC945), it integrates smoothly with compatible networks and standards.
