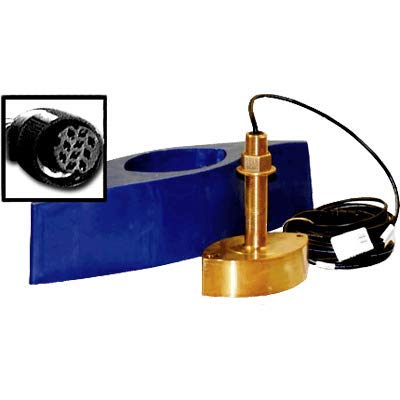

Furuno 525TID-BHD Bronze Thru-Hull Depth/Temp Transducer with Temperature and a High-Speed Fairing Block is built to deliver reliable depth readings and water-temperature data with dual-frequency performance.
-
Transducer type: Bronze thru-hull transducer with temperature sensing
-
Power rating: 1 kW
-
Frequency and diplexer: 50/200 kHz operation with diplexer for dual-frequency performance
-
Beam angles: 50 kHz beam 15°×21°; 200 kHz beam 3°×5°
-
Fairing block: Includes High-Speed Fairing Block AIR-033-523 for streamlined flow and reduced noise
-
Connector: 10-pin connector for Furuno system integration
-
Material: Bronze thru-hull construction
With depth and temperature data from a robust bronze thru-hull design, this transducer provides reliable underwater readings essential for navigation and fishing. The 1 kW power and dual-frequency capability deliver strong, clear returns across long-range and high-detail close-range scans. The included High-Speed Fairing Block stabilizes performance at speed by minimizing hull turbulence and noise, while the 10-pin connector ensures straightforward, dependable integration with Furuno displays and sonar units.
