Furuno DRS6AX 6Kw X-BAND Pedes Pedestal Cable Sold Separately Effective 06/20/2022

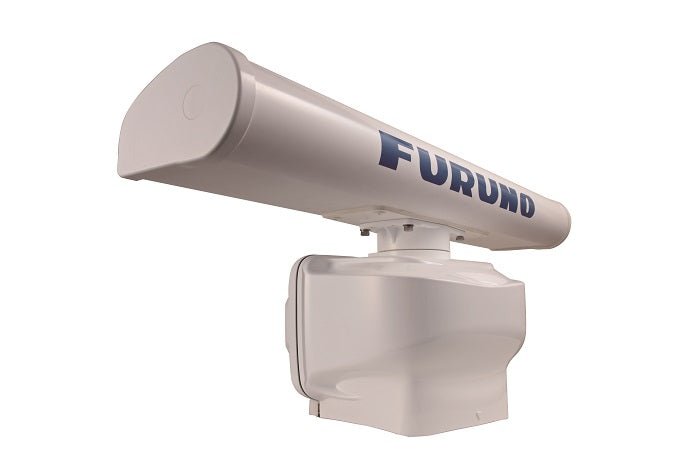

The Furuno DRS6AX is a 6 kW X-Band radar pedestal designed for open-array installations, delivering fast target tracking and reliable long-range detection when paired with NavNet TZtouch systems. This pedestal-only unit requires an antenna and cable sold separately, allowing you to tailor the setup to your vessel’s size and power availability.

• Pedestal design: New pedestal unit, 20% lighter than the previous DRS6A model with a low-noise motor for quieter operation.
• Power and installation: 24V DC power system; installation requires no PSU; converter required for use with 12V power systems.
• Height options: Choose from 3.5 ft, 4 ft, or 6 ft pedestal heights to fit your vessel and line of sight.
• Antenna and cables: Antenna and cable sold separately; pair with Furuno X-Class antennas and compatible cables to fit your setup.
• Compatibility: Works with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models).
• Radar performance: 6 kW X-Band radar with enhanced short- and long-range target detection; minimum detection range of 20 m.
• Target tracking: Fast Target Tracking delivers target course and speed vectors instantly with the press of a button.
• Antenna rotation: 24/36/48 rpm range (coupled) or 24 rpm fixed.
• Beam widths: XN10A 2.3° horizontal × 22° vertical; XN12A 1.9° horizontal × 22° vertical; XN13A 1.4° horizontal × 22° vertical.
• Range scales: 0.0625 to 120 nm.
• Waterproofing: IP56-rated enclosure for marine environments.
• Power supply: 24V DC, 4.0 A.
• What’s in the box: RSB134-112 Pedestal.

Designed for professional mariners, the DRS6AX delivers precise situational awareness with fast target tracking and reliable long-range capability. Its lighter, quieter pedestal simplifies installation and maintenance, while 24V operation and easy integration with NavNet TZtouch and TZtouch2 help you streamline vessel-wide radar coordination. With antenna and cable sold separately, you can tailor the setup to your vessel’s size, power availability, and mission profile—from coastal cruising to offshore operations.
