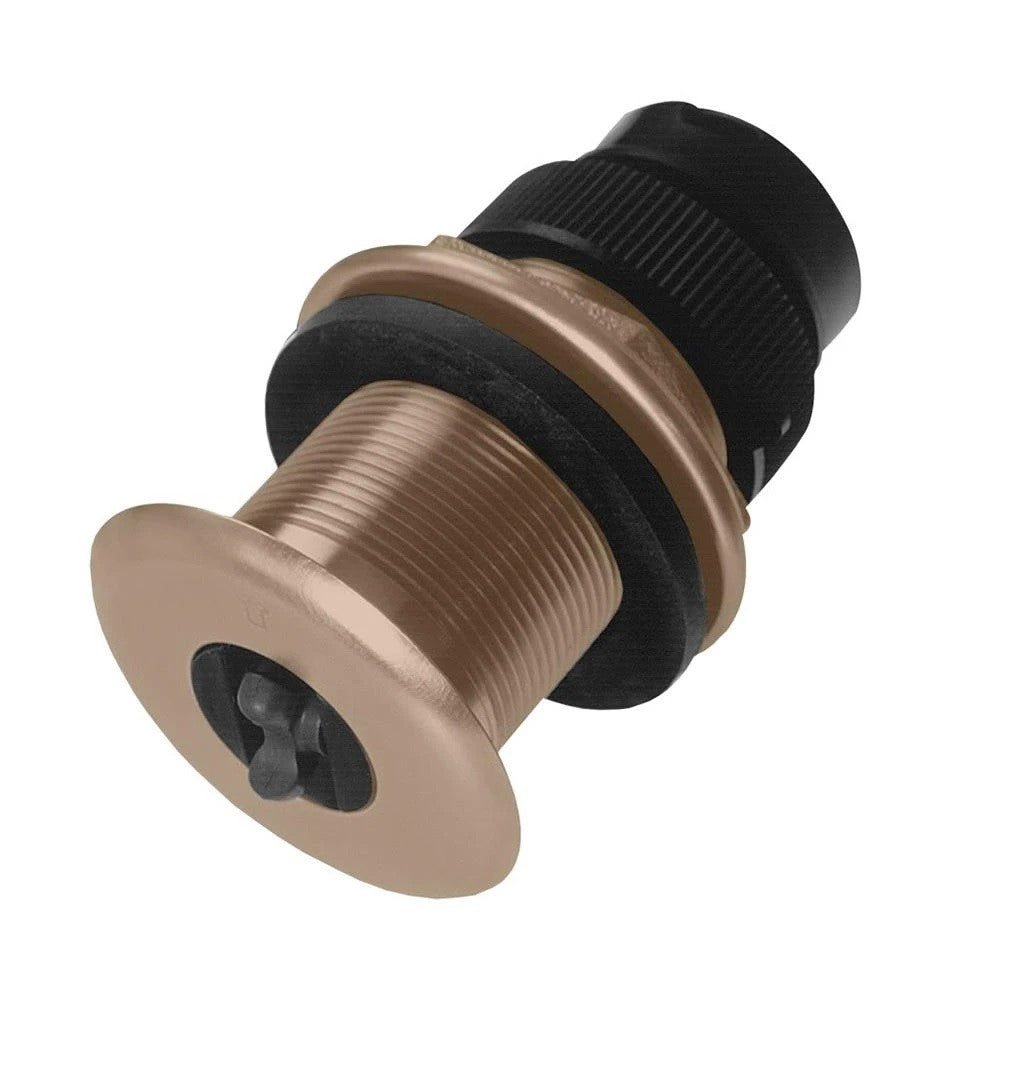

Furuno DST-810 active Depth, Speed, Temperature thru-Hull Bronze 235 kHz transducer.
Model: DST-810MSF
- 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
- Integrated attitude sensor for heel and trim benefits sailing and power boats
- Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
- DST810 stores configurations and delivers data to the NMEA 2000(R) network.
- Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
- Popular depth sensor for shallow water performance.
SpecificationsAcoustic Window| Urethane |
| Hull Deadrise |
Up to 22 deg |
| Data Update Rate |
Depth 1X/second |
| Data Update Rate |
Speed 5X/second |
| Attitude Accuracy |
+/- 1 deg nominal after sensor calibration |
| Depth Frequency |
235 kHz |
| Minimum Depth Range |
0.5 m (1.6 feet) |
| Maximum Depth Range |
Up to 100 m (330 feet)-NMEA 2000(R) |
| Speed Range |
Up to 45 knots |
| Pressure Rating |
3 m (10 feet) |
| Pulse Rate |
20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile |
| Supply Voltage |
9 VDC to 16 VDC-per NMEA 2000 |
| Supply Current |
<200 mA-per NMEA 2000(R) |
| Wireless Protocol |
Bluetooth Low Energy (BLE) |
| Wireless Range |
Up to 30 feet depending on mount location |
| Standard Cable Length |
6 m (20 feet) DeviceNet-NMEA 2000(R) |
| Temperature Sensor Accuracy |
+/-0.5 degC (+/-1.8 degF) |
| Temperature Sensor Range |
-10 degC to 40 degC (14 degF to 104 degF) |
| NMEA 2000 Load Equivalency Number (LEN) |
3 |
What's in the Box:
- DST-810 Insert
- Bronze Housing
