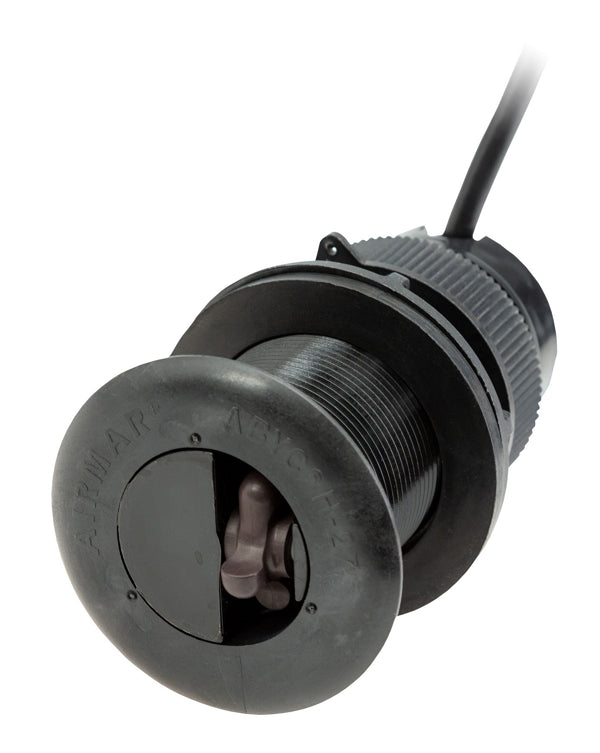

Meet the Garmin DST810 Smart Transducer (Model: 010-11051-20), a breakthrough Airmar through-hull sensor designed to elevate speed, attitude, and hull data for both sailing and powerboats. Encased in a robust plastic hull, this sensor delivers 5 Hz speed-through-water data (five readings per second) for visibly smoother readings and faster, smarter decisions on the water. The integrated attitude sensor captures heel and trim, providing context that helps you optimize performance and efficiency.
Connectivity and calibration are redefining how you tune your rig. The DST810 connects wirelessly to Airmar’s CAST App, delivering a simple, brand-agnostic calibration experience no matter what display or instrument brand is on board. Calibrate quickly with basic heel-compensated speed calibrations or dive into advanced options for precision across multiple heel angles and speed ranges. The result is accurate speed-through-water outputs across the entire speed range, without the need for expensive PC software.
The DST810 stores all speed calibrations and NMEA configurations in the sensor itself, independent of your onboard displays. This means consistent performance across systems and easier upgrades or changes to helm instrumentation. With the CAST App, you can:
-
Enable or disable PGN’s and set offsets and output rates
-
Perform heel-compensated speed calibrations across multiple heel angles and speeds
-
Calibrate across up to 10 speeds with manual entries for precise tuning
-
Calibrate regardless of instrument brand or model on the vessel
Why the DST810 changes everything
This Smart Multisensor – paired with the CAST App – converges advanced hull data with a simple, reliable calibration workflow. It delivers capabilities that previously required expensive PC-based software, but now fits in the palm of your hand. In addition to speed-through-water, you’ll benefit from reliable water temperature and depth data, plus an accurate attitude reading that enhances data interpretation and decision-making on every voyage.
Key specifications
- : Depth up to 100 m (330'), depth frequency 235 kHz
- : Plastic hull with robust 3 m (10') pressure rating
- : Speed and depth update rates designed for fast, real-time readings
- : Attitude accuracy ±1° nominal after calibration
- : 9 VDC to 16 VDC (NMEA 2000 supply)
- : <200 mA (per NMEA 2000)
- : Bluetooth Low Energy (BLE) with up to ~30 ft range (depends on installation)
- : Supports standard NMEA 2000 networking, with configurable PGNs
- : Sensor accuracy ±0.5°C; range -10°C to 40°C
- : NMEA 2000 LEN 3; designed to work across brands and displays
Upgrade your boat’s data philosophy with the DST810. It’s a breakthrough approach to hull data: fast, accurate, and easy to calibrate, delivering smarter performance without the hassle. The combination of 5 Hz speed output, an integrated attitude sensor, and wireless CAST App calibration makes this transducer a compelling choice for anyone seeking to maximize hull efficiency and data-driven decision making.
| Acoustic Window |
Urethane |
| Hull Deadrise |
Up to 22° |
| Data Update Rate |
Depth: 1X/second |
| Attitude Accuracy |
+/— 1° nominal after sensor calibration |
| Depth Frequency |
235 kHz |
| Minimum Depth Range |
0.5 m (1.6') |
| Maximum Depth Range |
Up to 100 m (330')—NMEA 2000® |
| Speed Range |
Up to 45 knots |
| Pressure Rating |
3 m (10') |
| Pulse Rate |
20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile |
| Supply Voltage |
9 VDC to 16 VDC—per NMEA 2000 |
| Supply Current |
<200 mA—per NMEA 2000® |
| Wireless Protocol |
Bluetooth Low Energy (BLE) |
| Wireless Range |
Up to 30 feet depending on mount location |
| Standard Cable Length |
6 m (20') DeviceNet—NMEA 2000® |
| Temperature Sensor Accuracy |
±0.5°C (±1.8°F) |
| Temperature Sensor Range |
-10°C to 40°C (14°F to 104°F) |
| NMEA 2000 Load Equivalency Number (LEN) |
3 |
